Water Electrolysis Grade1 2 Titanium Expanded Sheet
Water Electrolysis Grade1 2 Titanium Expanded Sheet
Quick details of Titanium Expanded Sheet
1) Current density<2000A/M2
2) Temperature<85°C
3) Electrolyte:H2SO4 or HNO3, Neutral
4) PH 0.1~14
5) Max content of Fluoride ion is 200PPM
6) Homogenous degree: >=85%
7) Oxygen-liberated potential <=1.8V

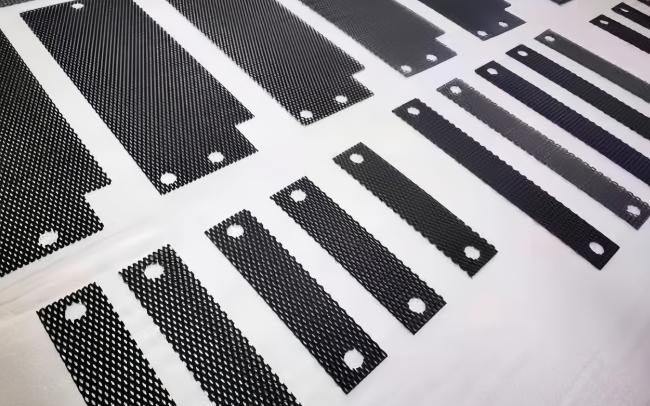

Description Titanium Expanded Sheet
Platinum coated Titanium Electrode Mesh for PEMWE is crafted from high-quality Titanium Expanded Sheet, this electrode plate is meticulously coated with dual-sided platinum layers, ensuring optimal performance within the electrolysis chamber. Experience accelerated reaction rates and improved durability in your electrolysis processes, setting sail toward enhanced productivity and reliability.
Benefits of Titanium Expanded Sheet
-
Combines titanium’s strength with platinum’s electrocatalytic properties.
-
Resistant to corrosion even thoughTitanium Expanded Sheet is used in aggressive electrolyte bath
-
The Platinum coating thickness is uniform and the usage life span can be prolonged.
-
Titanium Expanded Sheet is customizable according to customers’ required dimensions and design.
Titanium Expanded Sheet specification
|
Overall Thickness |
Design Size (in.) | Opening Size (in.) | Strand Size (in.) | |||
| SWD | LWD | SWO | LWO | Width | Thickness | |
| .050 | .140 | .280 | .085 | .185 | .029 | .024 |
| .070 | .165 | .400 | .115 | .260 | .035 | .024 |
| .060 | .230 | .500 | .170 | .370 | .036 | .024 |
| .083 | .220 | .400 | .140 | .240 | .035 | .024 |
| .085 | .220 | .400 | .140 | .240 | .045 | .030 |
| .080 | .270 | .600 | .200 | .440 | .045 | .024 |
| .088 | .270 | .600 | .200 | .440 | .050 | .030 |
| .172 | .630 | 1.575 | .428 | 1.260 | .110 | .060 |
Applications of Titanium Expanded Sheet
Commonly used in electroplating and electrolysis.
Platinised Titanium Expanded Sheet Anodes are used in electrochemical processes due to their durability, high current efficiency, and resistance to corrosion. Applications include cathodic protection (to prevent metal corrosion), electroplating (for depositing a metal coating on objects), and water treatment (to purify and desalinate water). Their robustness and longevity make them suitable for harsh environments and demanding industrial processes.
