7x19 304 Stainless Steel Wire Rope Mesh for Handrail Commercial Guard Rail System
304 Stainless Steel Wire Rope Mesh Handrail Commercial Guard Rail System
Quick details of 304 Stainless Steel Rope Net :
-
Material: stainless steel 304, 304L, 316, 316L.
-
Ferrule material: tinned copper, nickel plated copper, stainless steel.
-
Surface treatment: silver or black oxide finish.
-
Construction of wire cable: 7 × 7, 7 × 19.
-
Cable diameter: 1.0–5.0 mm.
-
Mesh opening sizes: 20–200 mm.
-
Mesh opening angles: 20 , 30 , 60 , 70 , 75 . Mesh aperture at 60 as standard opening.
-
Connection: ferrule or knotted.
-
Certification: certified to EN1263-1 for static and dynamic load capacity
Stainless Steel Cable Mesh, also called Flexible Stainless Steel Cable Mesh, Stainless Steel
Rope Mesh, Stainless Steel Wire Rope Mesh, it is produced of high quality stainless steel wire
cable. It can be divided into ferrule type and inter-woven type by production crafts.
Specification of 304 Stainless Steel Rope Net :
| Cable Diameter | Mesh Opening Size(W×H) | ||
| inch | mm | inch | mm |
| 1/8 | 3.2 | 2 x3.46 | 51 x88.3 |
| 3/32 | 2.4 | 2x3.46 | 51 x 88.3 |
| 5/64 | 2.0 | 2.4x 4.16 | 60 x 104 |
| 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 |
| 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 |
| 1/16 | 1.6 | 2x 3.46 | 51 x 88.3 |
| 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 |
| 1/16 | 1.6 | 1.2x2.08 | 30 x 52 |
| 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 |
| 3/64 | 1.2 | 1-1/2x2.6 | 38 x 65.8 |
| 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 |
| 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 |
| 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 |
Type of 304 Stainless Steel Rope Net
|

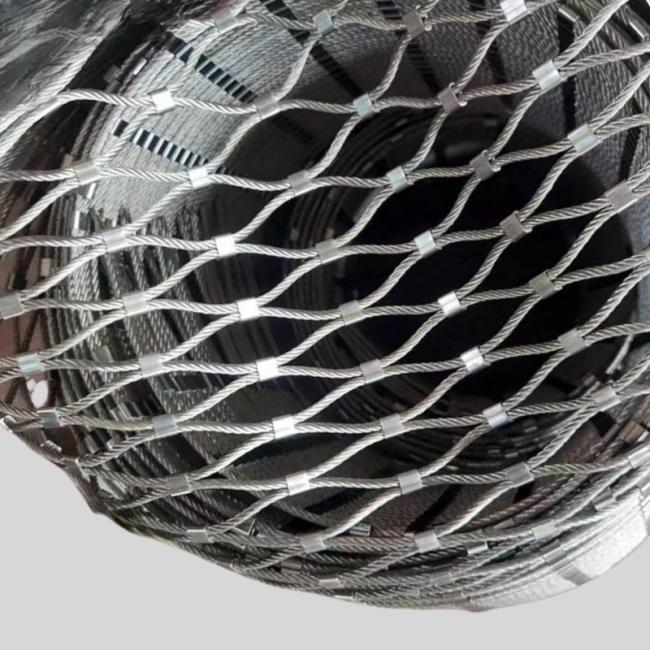

Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel. |
 |
|

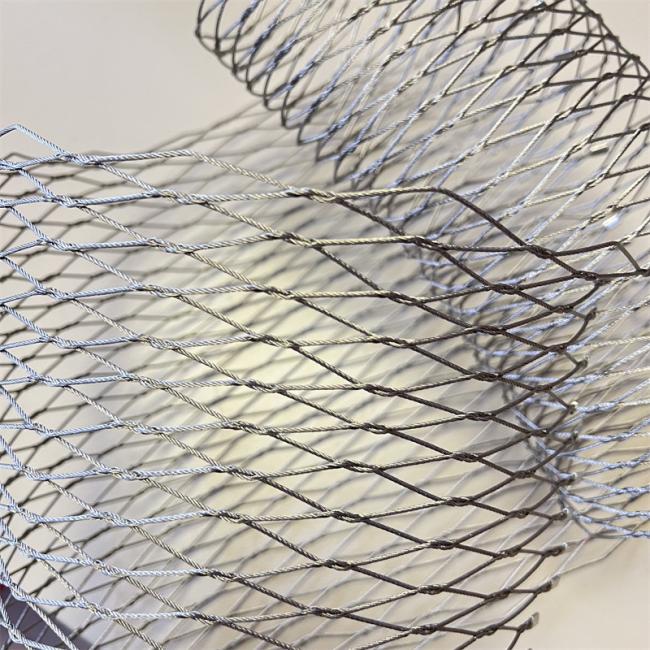

Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter. |
 |
Application of 304 Stainless Steel Rope Net :
Transparent and flexible stainless steel rope mesh system is a professional solution for protection
and safety applications, consisting of stainless steel wire ropes and steel structural supports. This
system can be configured in a variety of ways by using different wire rope diameters and mesh
aperture sizes to meet the needs of different projects. It is often used in a wide range of applications
such as buildings, bridges and helicopter landing platforms to provide safety and protection measures.
Stainless steel wire rope mesh parts
We also provide various parts, including stainless steel wire rope, buckle, sleeve, cable eye ends,
suspension rope clamps, thread ends, rod articulation and wall mount. As shown in the following figure:
Package of 304 Stainless Steel Rope Net :
-
The rope mesh without frame would packed in rolls with plastic film, then put into wooden case
-
The rope mesh with frame would be fastene on pallets.
