BTO-22 Type Galvanized Barbed Concertina Razor Coil For Safety Protection Constantine Wire
BTO-22 Type Galvanized Barbed Wire Coil Razor Barbed Wire for Safety Protection
Blade barbed wire is made of hot-dip galvanized steel sheet or stainless steel sheet stamping out sharp blade, high tension galvanized steel wire or stainless steel wire as a core wire combination of the resistance equipment.
Hebei Yingkang wire mesh manufacturing Co.,Ltd was founded in 1996,our company is located in"Chinese Mesh and Netting Country"-Anping,Which is the most biggest wire mesh industry park in China,Even the biggest of the world.
Surface Treatment: 1-Electro-galvanized, 2-Hot-dipped galvanized, 3 lron/galvanized wire + PVC coated.
Razor Barbed Wire Feature: firm in structure, flat surface, with fine resistant to corrosion or oxidation.

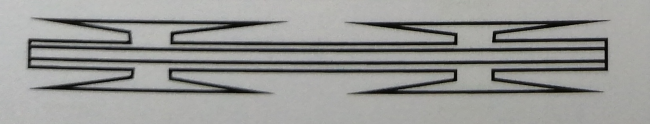

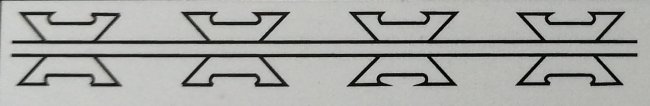

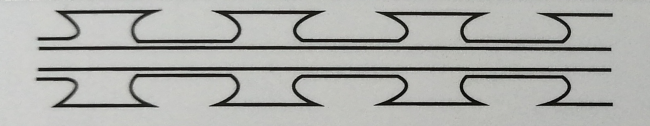

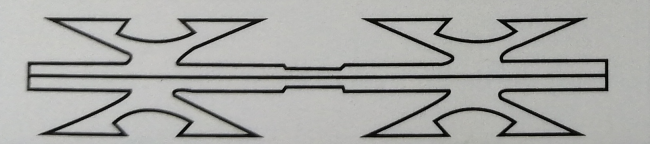

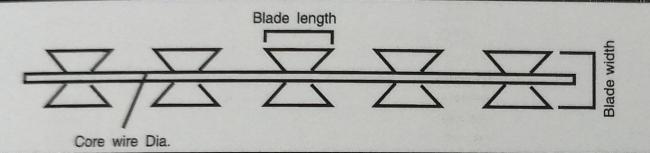

| Razor Blade Type and Specifications | ||||||
| Reference Number | Balde Type |
Thickness mm |
Wire Diameter mm |
Barb Length mm |
Barb Width mm |
Barb Spacing mm |
| BTO-12 |  |
0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 |  |
0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 |  |
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 |  |
0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-25 |  |
0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| CBT-60 |  |
0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 |  |
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | |

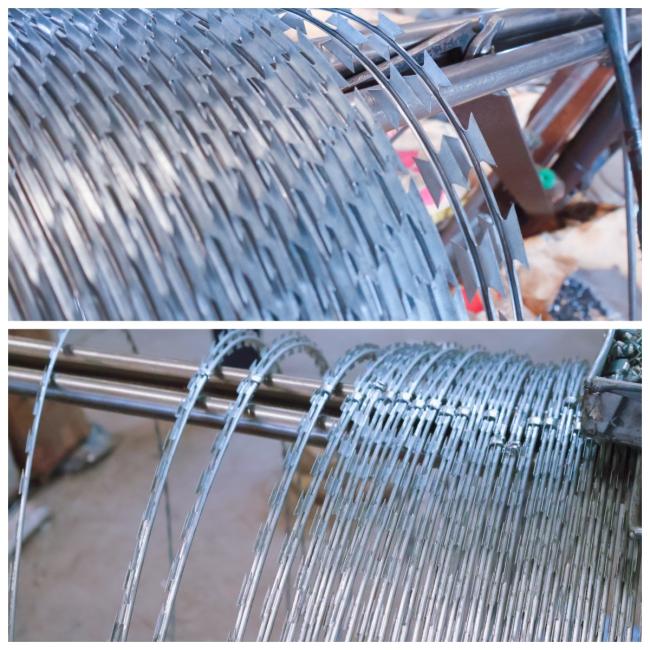

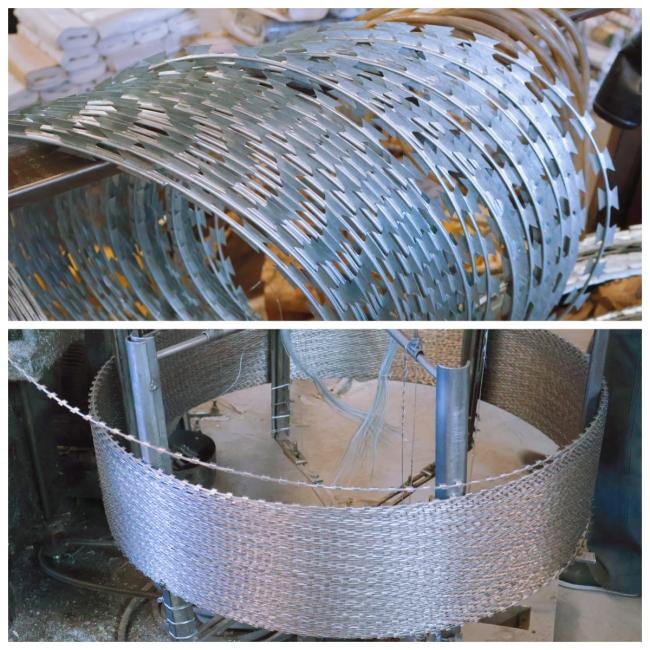

Razor Barbed Wire Product Display

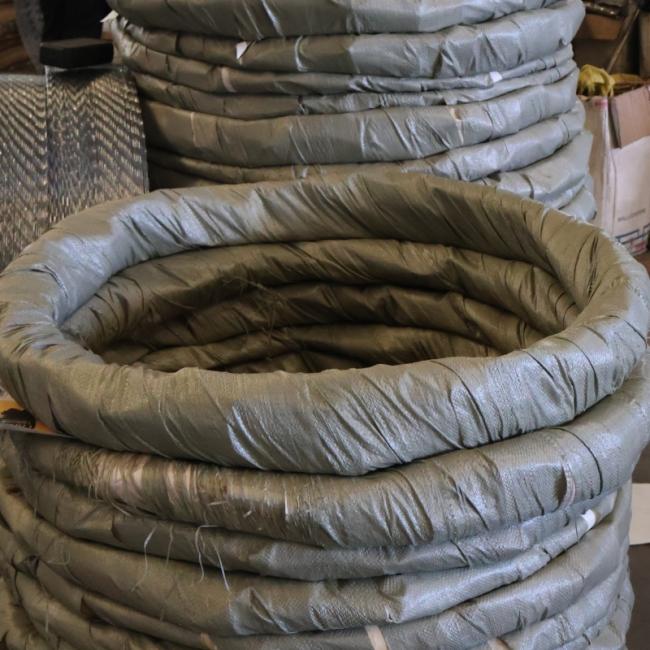

Razor Barbed Wire Packing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging serviceswill be provided.
Yingkang company with 30 years of experience in wire mesh, we have consistently demonstrated our ability to adapt to changing market.
Our products not only boast good quality but also have a good cost performance. With highly competitive prices, We are offer unbeatable value for money.
