Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer

Price Negotiable

Price: Negotiable

MOQ: 10 sets

Delivery Time: 30days

Brand: TOBRO

Product Description

item	value
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Printing Shops, Construction works , Energy & Mining
Showroom Location	None
Place of Origin	China
	Hunan
Warranty	1 Year
Production Capacity	Other
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Other
Warranty of core components	1 Year
Core Components	Pressure vessel, Pump
Weight (KG)	3000kg

Key Features & Advantages

Versatility	can manage multiple types of containers, including dumpsters, flatbeds, and recycling bins
Safety & Efficiency	The hydraulic arm enables quick, remote operation from the truck cab.
High-Tensile Steel	Use specialized steel to maximize payload while lowering operating costs.
Durability	Components feature robust rollers to manage heavy loads and ensure smooth, stable, and long-lasting operation.

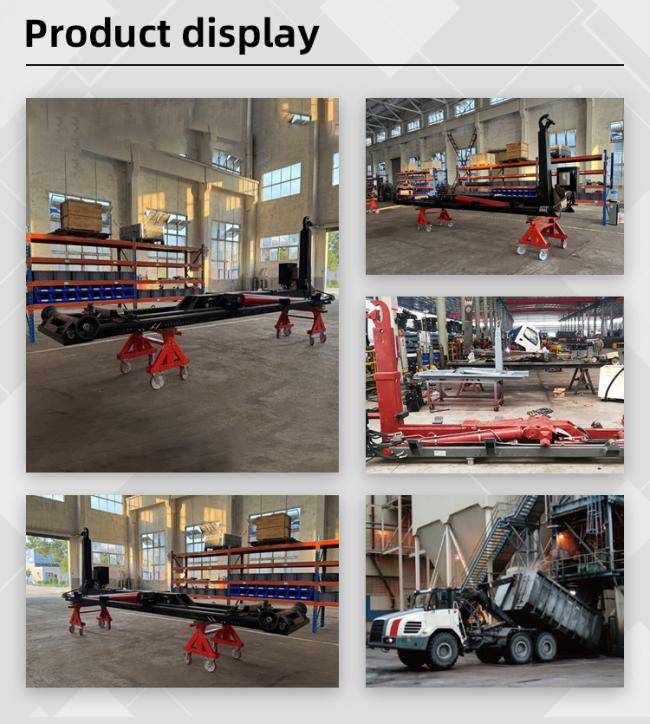

Product Display

Model	Lifting	Hook Wheel	Hook heart height	Length	Dead-weight	Angle of roll
1937	1T	1801mm	1015mm	1800-2000mm	220kg	48°
2345	1.5T	2220mm	1015mm	2200-2500mm	245kg	48°
3065	3-7T	3513mm	920mm	2800-4250mm	830kg	49°
4200	8-10T	3993mm	1570mm	3250-4750mm	1120kg	52°
4750	14-16T	4485mm	1570mm	3500-5500mm	1610kg	52°
5650	20T	5366mm	1570mm	4250-6500mm	2350kg	48°
6310	26T	6010mm	1570mm	4750-7500mm	2390kg	48°
