350W 360W 365W 370W 375W 380W CIGS Solar Panels Soft Solar Panels 2583mmx973mm
Price:
CN¥11.86/watts 100-9999 watts
MOQ:
100 watts
Delivery Time:
Negotiable
Brand:
SZSSTH
Product Description

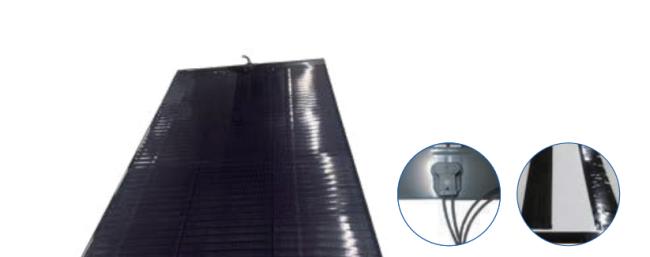

Minimum Thickness 350W 360W 365W 370W 375W 380W CIGS Flexible Solar Panels for Solar Energy System
|
M56
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
M56-350
|
M56-360
|
M56-365
|
M56-370
|
M56-375
|
M56-380
|
||||||||
|
Nominal Power
|
Pmpp
|
[W]
|
350
|
360
|
365
|
370
|
375
|
380
|
||||||||
|
Aperture Efficiency
|
|
[%]
|
15. 2
|
15.6
|
15.8
|
16
|
16. 3
|
16.5
|
||||||||
|
Power Output Tolerance
|
|
[W]
|
0~+5
|
0~+5
|
0~+5
|
0~+5
|
0~+5
|
0~+5
|
||||||||
|
Maximum Power Voltage
|
Vmpp
|
[V]
|
29. 6
|
29.8
|
30
|
30.1
|
30. 2
|
30.3
|
||||||||
|
Maximum Power Current
|
Lwpp
|
[A]
|
11.83
|
12. 07
|
12. 19
|
12. 31
|
12.43
|
12.55
|
||||||||
|
Open Circuit Voltage
|
Voc
|
[V]
|
37. 2
|
37.3
|
37.3
|
37.6
|
37.6
|
37. 6
|
||||||||
|
Short Circuit Current
|
lsc
|
[A]
|
13.78
|
13.88
|
13. 93
|
13.98
|
14. 07
|
14. 1
|
||||||||
|
Maximum Series Fuse Rating
|
|
[A]
|
25
|
|
|
|
|
|
||||||||
|
Standard Test Conditions :1000W/m.25C Cel1 temperature,AM 1.5 spectrum
|
|
|
|
|
|
|
|
|
||||||||
|
THERMAL CHARACTERISTICS
|
|
|
|
|
|
|
|
|
||||||||
|
NOCT
|
|
|
['c]
|
|
|
48
|
|
|
||||||||
|
Temperature Coefficient Of Pmpp
|
|
|
[%/'℃]
|
|
|
-0. 38
|
|
|
||||||||
|
Temperature Coeffioient Of Voc
|
|
|
[%/c]
|
|
|
-0. 28
|
|
|
||||||||
|
Temperature CoeffioientOf lsc
|
|
|
[%/'c]
|
|
|
0
|
|
|
||||||||
|
CelI Temperature Opera Ting Range
|
|
|
['c]
|
|
|
-40~85
|
|
|
||||||||
|
PHYSICAL AND MECHANICAL SPECIFICATIONS
|
|
|
|
|
|
|
|
|
||||||||
|
Length
|
|
|
2583mm
|
|
|
|
|
|
||||||||
|
Width
|
|
|
973m
|
|
|
|
|
|
||||||||
|
Thickness maximum AtJ-Box*
|
|
|
20mm
|
|
|
|
|
|
||||||||
|
Weight module without adhesive)
|
|
|
2.9kg
|
|
|
|
|
|
||||||||
|
Weight module with adhesive)
|
|
|
3.5kg
|
|
|
|
|
|
||||||||
|
Weight/Area module without adhesive)
|
|
|
1. 7kg/m²
|
|
|
|
|
|
||||||||
|
Weight/Area module with adhesive)
|
|
|
2. 1kg/m²
|
|
|
|
|
|
||||||||
|
CelI Type
|
|
|
CIGS
|
|
|
|
|
|
||||||||
Rated Products
Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.
Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.
Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.
Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.
Q5: How do I pay you?
A5: We accept Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.
Q6: What kind of warranty for your product?
A6:We provides one year warranty.
Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.
Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP
Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.
Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was.
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.
Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.
Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.
Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.
Q5: How do I pay you?
A5: We accept Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.
Q6: What kind of warranty for your product?
A6:We provides one year warranty.
Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.
Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP
Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.
Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was.
