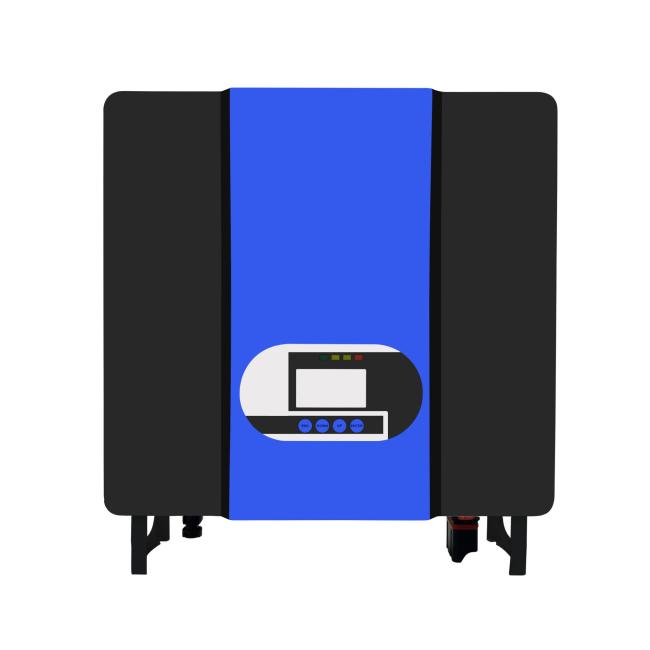

AC Voltage 230VAC 3.5KW 24V MPPT Wifi All in One Home Hybrid Inverter for Off Grid Applications
Product Description: 3K&5KW Off-Grid Inverter
Key Features:
-
Compatible with most common low-voltage batteries (lead-acid and lithium batteries).
-
The 5K model supports parallel operation for up to 6 units.
-
Maximum charging current of up to 130A.
-
LCD screen for safe and intuitive user interaction.
-
Remote monitoring via mobile app (Wi-Fi) and seamless BMS integration.
-
Intelligent fan cooling design for optimal performance.
Technical Specifications:
| Parameter | 3KW Model (SUFE0005AA1) | 5KW Model (SUFE0005AA1) |
|---|---|---|
| Battery Input | 24VAC | 48VAC |
| Nominal Power (W) | 3000 | 6000 |
| Nominal Power (VA) | 3000 | 5000 |
| Max PV Array Power | 4000W | 6000W |
| MPPT Voltage Range | 100VAC–34VAC | 100VAC–34VAC |
| Max Solar Charge Current | 150A | 80A |
| AC Output Voltage | 230VAC ± 3% | 230VAC ± 3% |
| Frequency | 50/60Hz | 50/60Hz |
| Efficiency (Peak) | 33% | 33% |
| Waveform | Pure Sine Wave | Pure Sine Wave |
| Protection Rating | IP54 | IP54 |
| Operating Temperature | 0°C to 30°C | 0°C to 30°C |
| Weight | 2.5 kg | 3 kg |
Advanced Protection & Safety:
-
PV Over Voltage/Current Protection
-
Battery Over Voltage/Current Protection
-
Output Short Circuit/Over Voltage Protection
-
Type II DC Surge Protection
Ideal For: Off-grid solar systems, home appliances, and personal computing devices.
Connectivity & Control:
-
User-friendly APP + LED display interface.
-
Multiple communication options: USB, Wi-Fi, GPRS, RS485/CAN, Dry-contact.
Reliable & Durable: Designed to operate efficiently in diverse environments (up to 2000m altitude, 20–35% humidity).
Why Choose Our Inverter?
✔ High efficiency with pure sine wave output.
✔ Scalable parallel capacity for expanded power needs.
✔ Robust protection mechanisms for long-term reliability.
Upgrade your energy independence with our cutting-edge off-grid inverters!
