24V DC to 110V 220V 230V Pure Sine Wave Hybrid Inverter

Product Description: 3K&5KW Off-Grid Inverter

Key Features:

• Wide Battery Compatibility: Supports most common low-voltage batteries (lead-acid and lithium).

• Parallel Capacity: The 5K model allows up to 9 units in parallel for expanded power needs.

• High Charging Efficiency: Maximum solar charge current of 150A (3K) and 80A (5K), ensuring rapid energy storage.

• User-Friendly Interface: Equipped with an LCD screen for safe and intuitive interaction.

• Remote Monitoring: Monitor and control the inverter via WiFi through a dedicated app, with seamless BMS integration.

• Intelligent Cooling: Smart fan design ensures optimal thermal management.

Technical Specifications:

• Output Waveform: Pure sine wave, ideal for sensitive electronics.

• Efficiency: Peak efficiency of 93%, minimizing energy loss.

• Protection: Comprehensive safeguards including PV/battery overvoltage/overcurrent protection, short circuit protection, and Type II DC surge protection.

• Durability: IP54-rated enclosure, resistant to dust and water splashes.

• Operating Conditions: Suitable for temperatures between 0°C to 30°C and altitudes up to 2000m.

Versatile Power Solutions:

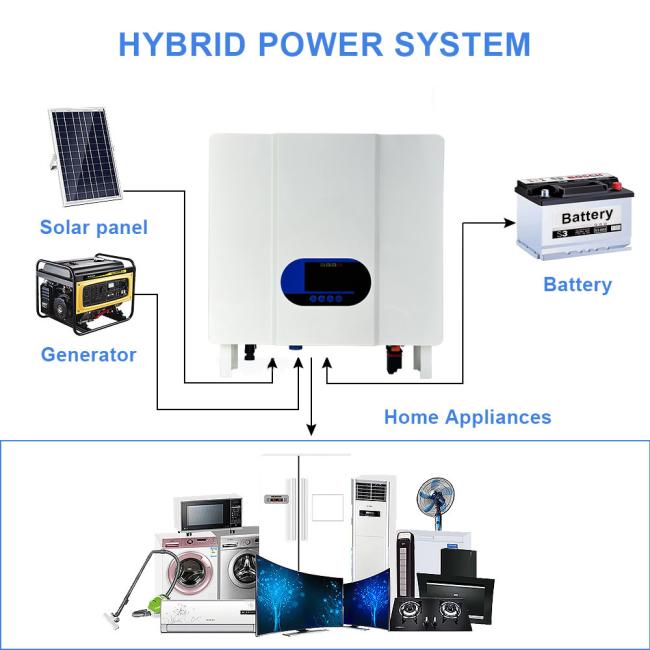

Whether for residential or small-scale commercial use, our 3K&5KW off-grid inverters deliver reliable, clean energy with advanced safety and smart features. Perfect for off-grid solar systems, backup power, and remote applications.

Model Options:

• SUFE0005AA1 (3KW): 24V battery voltage, 3000W nominal power.

• SUFE0005AA1 (5KW): 48V battery voltage, 5000VA nominal power, parallel support.

Dimensions & Weight:

• Compact design: 300×450×110.5 mm.

• Lightweight: 2.5kg (3K) / 3kg (5K).

Certified Reliability:
Designed for longevity and performance, ensuring peace of mind in every watt.
