Customizable OEM & ODM Solar Inverter 1KW-10KW - Pure Sine Wave Hybrid Power Solution
Best-Selling OEM & ODM Solar Inverter 1KW-10KW | Pure Sine Wave | Hybrid Inverter Charger
Top-rated OEM ODM solar inverter (1KW-5KW) with pure sine wave output. Perfect for custom solar projects & private label businesses. Features MPPT charge controller & lithium battery support. Request custom branding & wholesale pricing today.
Customizable OEM & ODM Solar Inverter 1KW-10KW - Pure Sine Wave Hybrid Power Solution
Our best-selling OEM ODM solar inverter series offers complete customization flexibility for businesses seeking to launch their own branded power solutions. Available from 1KW to 5KW capacities, these hybrid inverters combine advanced solar technology with pure sine wave output, making them ideal for residential and commercial applications. With full OEM and ODM capabilities, we provide comprehensive customization including branding, technical specifications, and packaging to meet your specific market requirements.
| model | UDI012AP | UDI512AP | UD1524AP | UD2024AP | UD3024AM | UO5048AM | UD6348AM | U012548AM | UD10048AM |
|---|---|---|---|---|---|---|---|---|---|
| Ac input voltage | 220VAC(standard) | 220VAC(standard) | |||||||
| Input voltage range | 154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model) 110V:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model) |
||||||||
| Input frequency | 50/60Hz±5% | 50/60Hz±5% | |||||||
| Output power | 1000VA 800W |
1500VA 1200W |
1500VA 1200W |
2000VA 1600W |
3000VA 2400W |
5000VA 4000W |
6300VA 5000W |
10000VA 8000W |
12500VA 10000W |
| AC model output Voltage | The output voltage under the mains is thesame as the input voltage | ||||||||
| Battery model output voltage | 220VAC+10%(Custom110VAC+10%) | ||||||||
| Battery model output wave | Pure sine wave | ||||||||
| Battery type | External lead-acid battery,Gel battery,water battery or Lithium battery | ||||||||
| Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC |
| Battery charging voltage | 13.7VDC | 13.7VDC | 27.4VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC |
| Maximum PV array power | 12V:PWM 800W | 24V:1600W | 48V:3200W | 48V:6400W | |||||
| Solar input voltage range | 12V:PWM 15V-50VDC 24V:PWM 30V-105VDC |
24V:MPPT 30V-150VDC 48V:MPPT 60V-150VDC |
|||||||
| Maximum PV Display Open Circuit Voltage |
12V: PWM 50VDC 24V: PWM 105VDC |
24V:MPPT 150VDC 48V:MPPT 150VDC |
|||||||
| Maximum solar charging current | 60A | 120A | |||||||
| Maximum AC Charge Current | 27A | 40A | 20A | 30A | 60A | 40A | 50A | 80A | 100A |
| load peak ratio | (MAX)3:1 | ||||||||
| Protective function | Under themains:input overcurrent fuse Under inverter: overload protection,short circuit protection, low voltage protection (with battery anti-reverse connection, board). |
||||||||
| Status Display | You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage output frequency, battery voltage, load current and other parameters by turning the page keys. |
||||||||
| Voice prompt | Low batteryprotection ouzzerlona peep Low batterybuzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms. |
||||||||
| Operating temperature | 0°C~40℃ | ||||||||
| Storage temperature | -15°C~45°C | ||||||||
| Relative temperature | -10°C~90℃C no condensation | ||||||||
| Noise | <45dB | ||||||||
| size(L*W*H)mm | 465*310*135MM | 545*400*200MM | |||||||
Key Features & Technical Advantages
- Complete Customization Support: Full OEM/ODM services including logo placement, color schemes, packaging design, and software branding

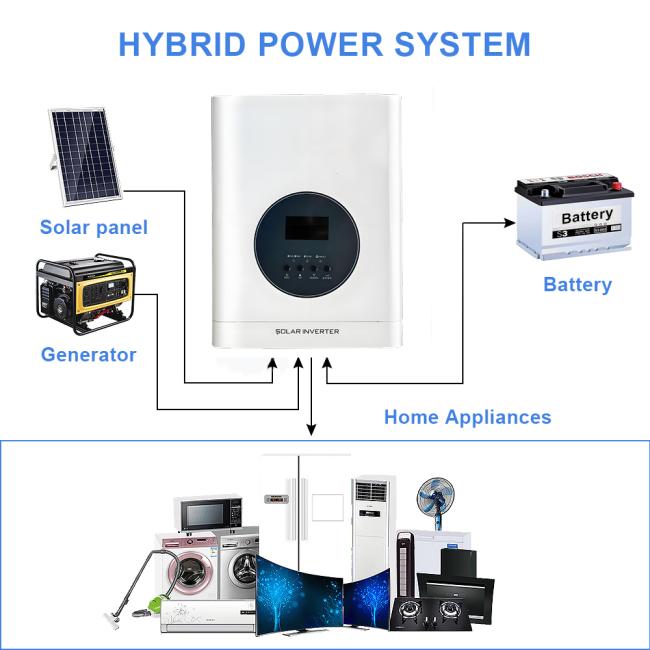

- Advanced Hybrid Technology: Intelligent energy management automatically switches between solar, battery, and grid power for optimal efficiency
- High-Efficiency MPPT Charger: Maximum Power Point Tracking technology with up to 99% conversion efficiency for maximum solar energy harvest
- Pure Sine Wave Output: Clean, stable power identical to grid electricity for sensitive electronics and appliances
- Wide Battery Compatibility: Supports lithium batteries (LiFePO4), AGM, GEL, and lead-acid with programmable parameters
- Multiple Operation Modes: Solar priority, grid priority, backup mode, and generator support for flexible energy management
- Remote Monitoring: Optional WiFi/GPRS module for real-time monitoring via smartphone app
- Scalable Design: Modular power design from 1KW to 5KW allows for system expansion
Customization Options
- Brand Identity: Custom logos, colors, and product labeling
- Packaging: Custom boxes, manuals, and accessory packages
- Technical Specifications: Custom voltage, frequency, and power parameters
- Software Interface: Branded user interface and custom settings
- Accessory Bundling: Custom cable sets and mounting hardware
Target Markets
- Solar Distributors: Businesses launching private label solar products
- Custom Installations: Specialized projects requiring specific technical parameters
- Residential Solar: Home energy systems and backup power solutions
- Commercial Applications: Small business solar systems and backup power
- International Export: Customizable for regional voltage and frequency requirements
Quality & Service
- Certifications: CE, ROHS, ISO 9001 compliant
- Minimum Order: 50 units for custom projects
- Sample Lead Time: 30 days for custom designs
- Production Time: 90 days after sample approval
- Warranty: 18 months with extended options
- Support: Comprehensive technical documentation and support
