Bidirectional Inverter Working Principle + Top Applications in ESS & Microgrid
Price:
USD$175.00-193.00/pieces
MOQ:
1pieces
Delivery Time:
Negotiable
Brand:
SZSSTH/OEM
Product Description
3000W Bi-Directional UPS Inverter - 12V/220V Power Inverter with 100A Charger for Solar & Home Backup
This 3000W bi-directional power inverter combines high-efficiency energy conversion with a built-in 100A battery charger, making it ideal for solar systems, home backup, RVs, and off-grid applications.
Key Features & Benefits
- 3000W Pure Sine Wave Output - Delivers clean, stable power for sensitive electronics (laptops, medical devices, appliances)
- Bi-Directional Functionality - Works as both an inverter (DC to AC) and charger (AC to DC) for seamless energy management
- Built-in 100A Smart Charger - Fast battery charging with automatic voltage detection (compatible with lead-acid/LiFePO4 batteries)
- Multi-Protection System - Overload, short-circuit, over-temperature, and reverse polarity protection for safety
- Wide Input Voltage (12V DC to 220V AC) - Supports flexible power sources (solar panels, batteries, grid)
- LCD Display (Optional) - Real-time monitoring of voltage, current, and battery status (if model includes display)
Ideal Applications

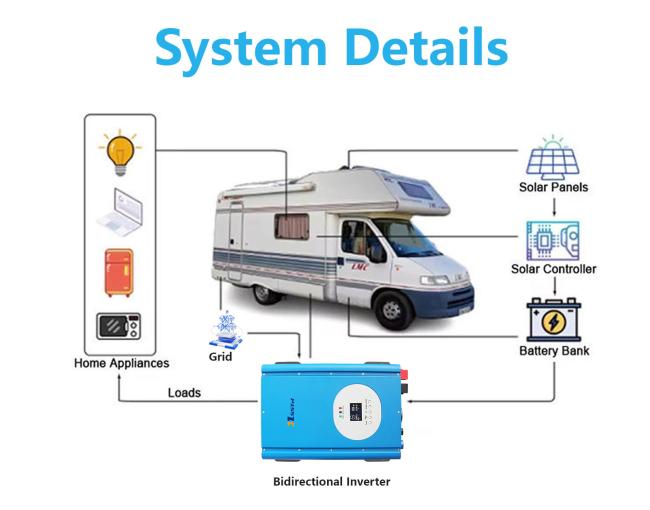

- Solar Power Systems - Efficiently converts solar energy for home/off-grid use
- Home & Office Backup - Keeps essential devices running during blackouts
- RV & Marine Use - Reliable power for travel, camping, and boats
- Emergency Power Supply - Works as a UPS (Uninterruptible Power Supply) for critical loads
Technical Specifications
| Attribute | Value |
|---|---|
| Network | SDK |
| Type | DC/AC Inverters |
| Weight | 6.1KG |
| Charging Method | Constant current/constant voltage (CC/Cv) |
| Cooling Method | Air Cooling |
| Operating Temperature | -10℃~+45℃ |
| Warranty | 12 Months |

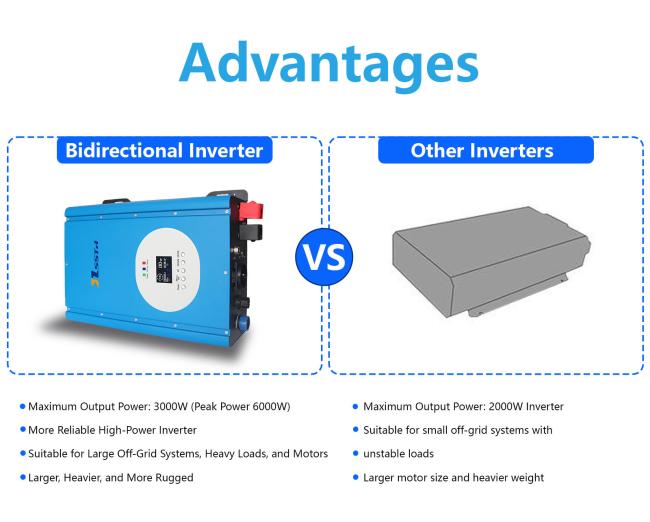

| Rated Power | 3000W (6000W surge) |
| Input Voltage | 12V DC |
| Output Voltage | 220V AC (Pure Sine Wave) |
| Charging Current | 100A (Adjustable) |
| Efficiency | >90% |
| Protections | Overload/Short-Circuit/Overheat/Low Voltage |
| Cooling | Silent fan (temperature-controlled) |
Electrical Specifications
Charge Input
| Voltage Range | 180~264VAC |
| Frequency Range | 47-63HZ |
| Maximum Efficiency | ≥91% @220VAC |
| Maximum Current | 15Amax |
| PF value | ≥0.95 |
| Surge Current | ＜60ACold Start |
Output
| Rated Voltage | 13.2V (maximum charging voltage 14.8V) |
| Rated Current | 100A |
| Maximum Power | 1400W |
| Voltage Accuracy | ±0.8V |
| Current Accuracy | ≤8% |
| Load Regulation | ≤5% |
| Dynamic Load Regulation | ≤5% |
| Battery Charging Voltage | 10.5V-14.5V |

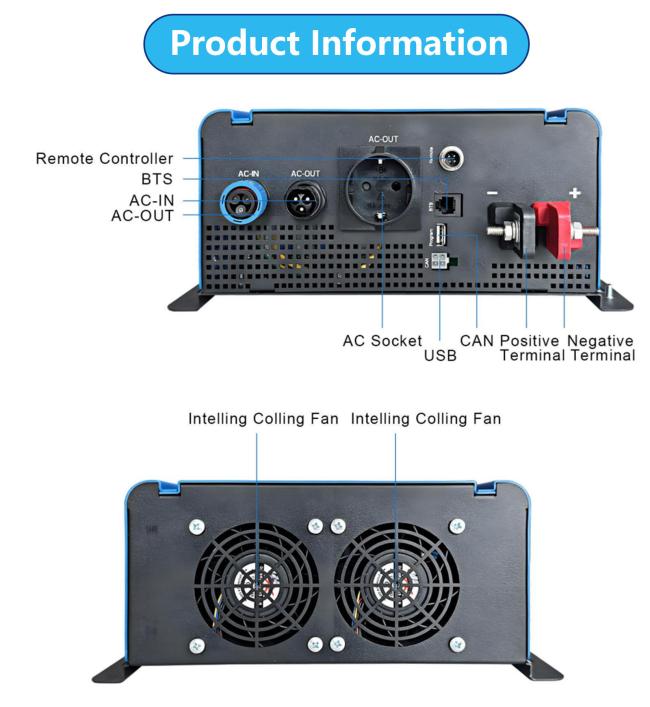

Product Images
