Large capacity Slant D shape Ring Binder clip Silver A4 Metal accessories for folders 2 inch Ring Binder Mechanism STD280-3-50/36
Large capacity Slant D shape Ring Binder clip Silver A4 Metal accessories for folders
2 inch Ring Binder Mechanism STD280-3-50/36
Thick-material multi-page school notebook folder
Surface treatment:Electroplate,Painting and Electrophoresis.
Ring number:3 rings
Base width:36mm
Product description
| Specification | Standard or Non-standard,according to drawing or samples. |
| Material | Cold Rolled Steel( Environmental ). |
| Standard | DIN, IFI, ASTM, ISO, JIS, BS and non-standard products. |
| Overall Length | 90/110/123/133/170/180/210/225/240/264/280/292/300/315mm ,ect. |
| Base Width | 15/17/20/26/36/45mm ect. |
| Ring Inside Diameter |
15/16/19/20/25/30/35/38/40/45/50/65/76mm ,ect. |
| Ring Number | 2/3/4/5/6/8/9/10/20/26/30,ect. |
| Ring Shape | O/D/Q |
| Ring Spacing | 9.5/19/28.5/45/51/65/70/80/89/95/108mm,ect. |
| Surface Treatment |
Zn-plating, Ni-plating, Cr-plating, Tin-plating, copper-plating, the wreath oxygen |
| Resin spraying, the heat disposing, hot-dip galvanizing, black oxide coating, | |
| Painting,Baking paint, Color zinc-plated, Blue black zincplated,Rust preventive oil, | |
| Titanium alloy galvanized, silver plating, plastic, electroplating, anodizing etc. | |
| Applications | For stationery file to hold papers. |
| Sample | For free. |
| Lead time | 10-15 working days as usual,It will based on the detailed order quantity. |
| Packaging | All products are separated with cardboard to protect. There is moisture proof agent |
| in the middle. And then packaged in plastic bags and into the standard carton. | |
| Protective woven bag is optional as your requirement. | |
| Payment | Full payment for small order,30% deposit,70% balance before shipment ,small order |
| Welcome Alipay, Paypal,Western union and Credit card. | |
| Service | OEM / ODM service are available. |
Product size introduction
| Item No | Sizes:(mm) | |||||
| A | B | C | D | E | F | |
|
Overall length |
Base width |
Overall height |
Inside height |
Ring center dist |
Rivet hole center dist |
|
| STD280-3-16/20 | 285 | 20 | 25 | 16 | 108*108 | 243 |
| STD280-3-25/17 | 285 | 20 | 29 | 25 | 108*108 | 243 |
| STD280-3-25/20 | 285 | 20 | 31 | 25 | 108*108 | 243 |
| STD280-3-38/20 | 285 | 20 | 43 | 38 | 108*108 | 243 |
| STD280-3-38/26 | 285 | 26 | 44 | 38 | 108*108 | 243 |
| STD280-3-50/26 | 280 | 26 | 55 | 50 | 108*108 | 243 |
| STD280-3-65/36 | 280 | 36 | 70 | 65 | 108*108 | 243 |
| STD280-3-76/36 | 280 | 36 | 86 | 76 | 108*108 | 243 |
| STD280-3-78/45 | 280 | 45 | 88 | 76 | 108*108 | 243 |
| STD280-3-88/45 | 280 | 45 | 98 | 88 | 108*108 | 243 |
| STD280-3-102/45 | 280 | 45 | 118 | 102 | 108*108 | 243 |
| Not all available items are listed to page,welcome to contact us directly. | ||||||

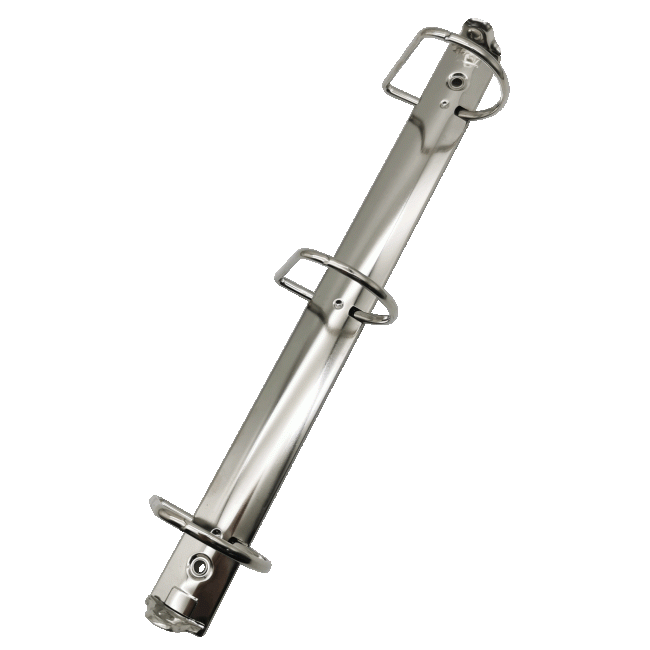

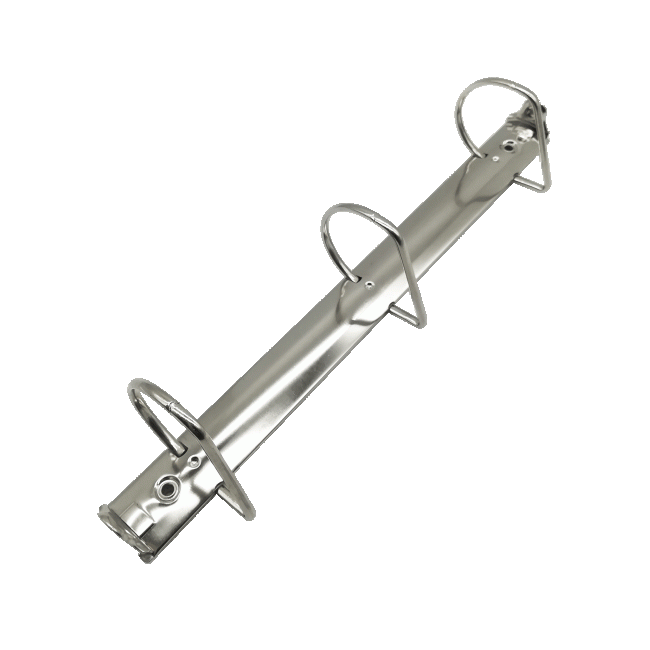

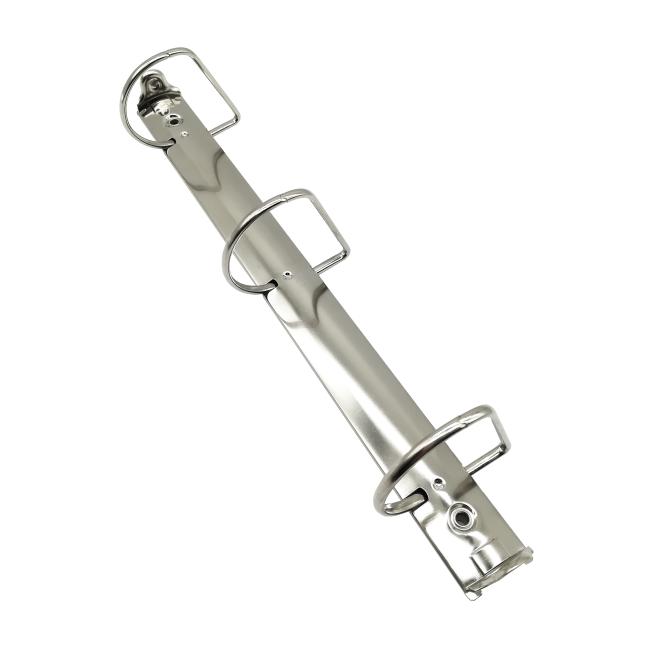

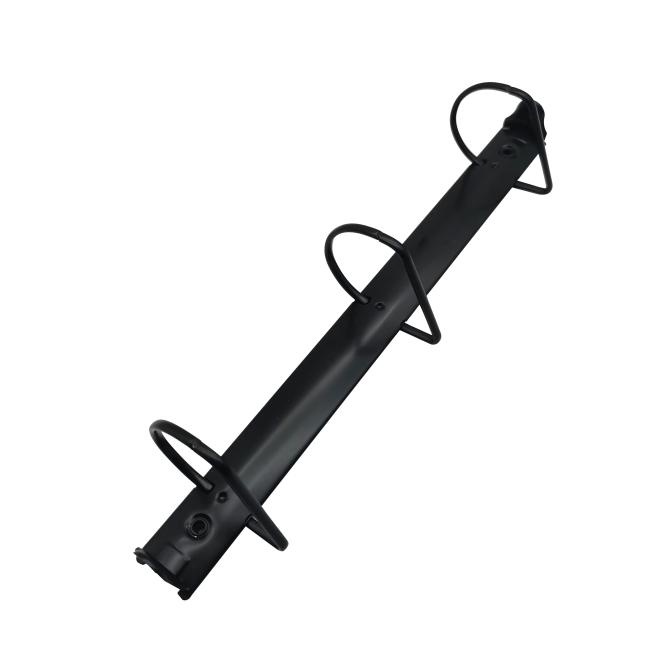

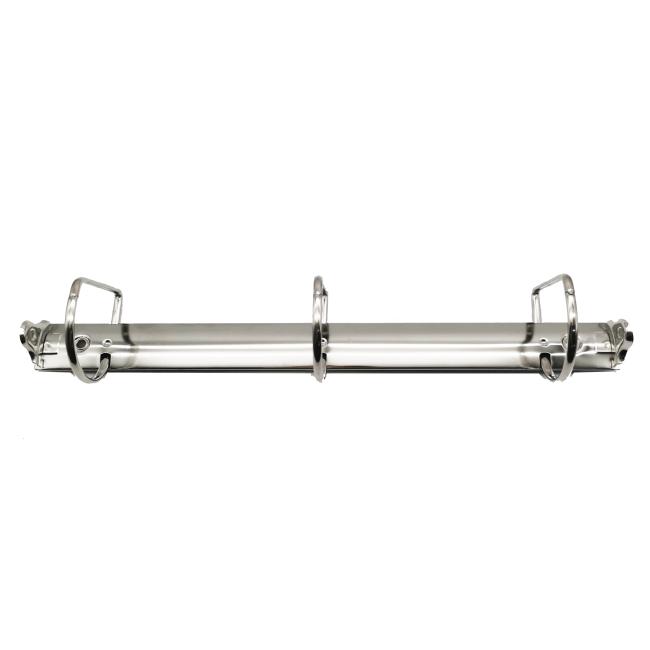

Metal Slant D shape 3 Rings Binder clip
A variety of ring diameters are available. Please feel free to contact us for more detailed product information.
Package
Company introduction
Professional Hardware Stationery Binder Clip Manufacturer
Product application field
Hardware binders are widely used in
notebooks, data books, file boxes, and are extremely important metal accessories.
FAQ & Buyer Reading
Q1:Can you tell me what is your MOQ?
A:lf it have stock, small order can accept .Small order MOQ is 3000pcs.
Q2:One packet how many pcs?
A:Different size have different packing, and if you have other requirement we can according to your request.
Q3:Sample free or cost?
A:Our sample is free,you just need to pay the delivery cost.
Q4:Any option of the payment?
A:Yes, you can pay by Paypal,Western Union or Credit Card.
Q5:How about the delivery time?
A:lf it have stock 3-5 days can send the goods .If no stock,we will confirm the delivery time according to theproduct quantity and detail size.
