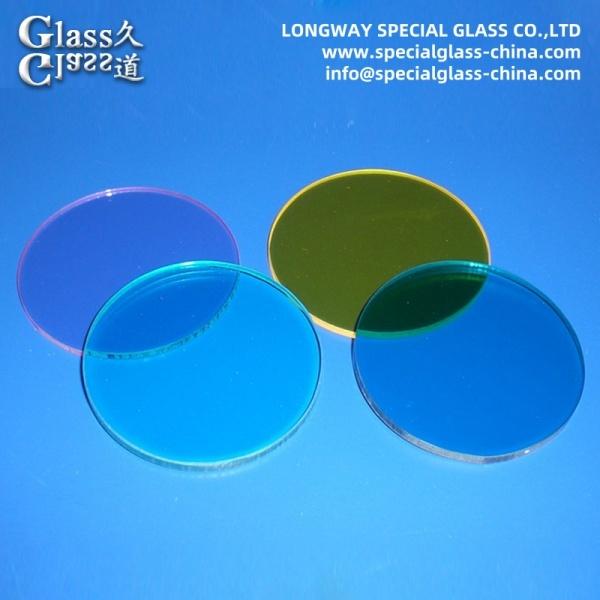

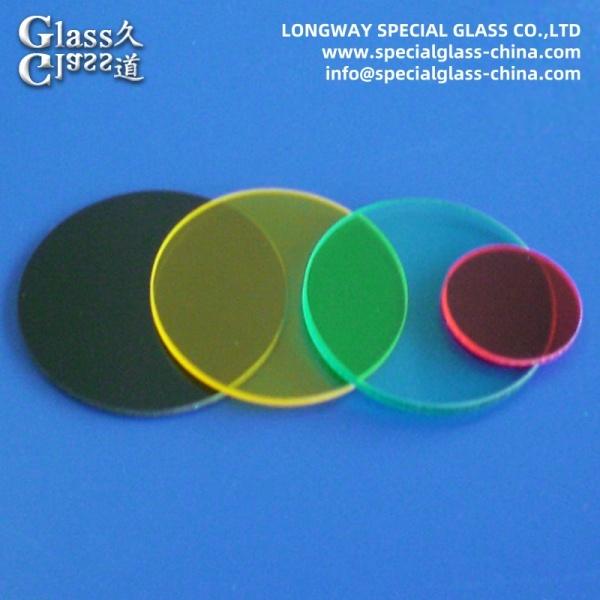

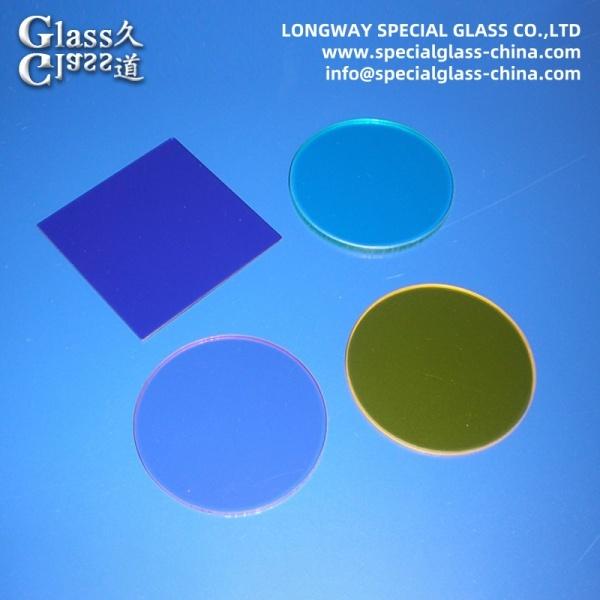

Optical Longpass and Bandpass and Shortpass Filter Set for Spectral Analysis and Environmental Monitoring

Optical Longpass and Bandpass and Shortpass Filter Set for Spectral Analysis and Environmental Monitoring

Material & Core Properties:
This filter set features precision optical elements typically constructed from high-quality substrates like fused silica for UV applications or optical glass (e.g., BK7) for VIS/IR, coated with advanced dielectric thin-film interference coatings.

• Targeted Spectral Performance: Each filter type serves a distinct function: Longpass (LP) filters transmit all wavelengths longer than a specified cut-on point; Bandpass (BP) filters transmit only a specific, narrow range of wavelengths; Shortpass (SP) filters transmit all wavelengths shorter than a specified cut-off point.

• High Transmission & Deep Blocking: Filters are engineered for high peak transmission (>90% typical) within their passbands and provide high out-of-band rejection (Optical Density >4), minimizing spectral contamination.

• Durable & Stable Construction: Hard-coated for durability, the filters offer excellent resistance to environmental factors like humidity and temperature shifts, ensuring reliable field and lab performance.

Primary Function:
The core function of this set is modular spectral selection and isolation. It enables users to:

• Deconstruct Complex Spectra: By selectively transmitting or blocking specific wavelength ranges, the set allows for the analysis of individual spectral components from a broadband light source.

• Eliminate Unwanted Light: Filters remove interfering wavelengths (e.g., ambient light, laser pump lines) to enhance signal-to-noise ratios in detection systems.

• Simulate or Isate Specific Bands: Crucial for calibrating instruments, testing sensor responses, or monitoring specific environmental indicators tied to precise wavelengths.

Key Applications:

• Environmental Monitoring: Isolating spectral signatures for measuring pollutants (e.g., CO2, methane), analyzing water quality via fluorescence, or performing remote sensing.

• Laboratory Spectral Analysis: Essential in fluorescence microscopy, Raman spectroscopy, spectrophotometers, and chemical imaging systems.

• Machine Vision & Industrial Inspection: For color-based sorting, material identification, and detecting specific features using controlled illumination.

• Laser & Optical System Design: For wavelength separation, pump laser blocking, and selecting specific lines from broadband sources.
