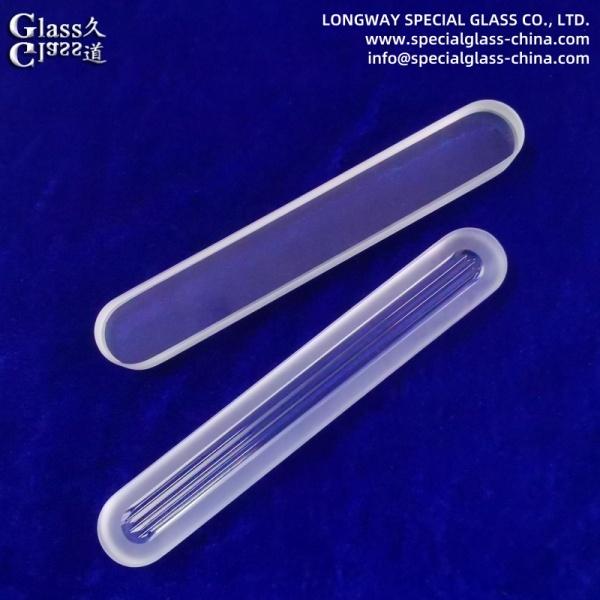

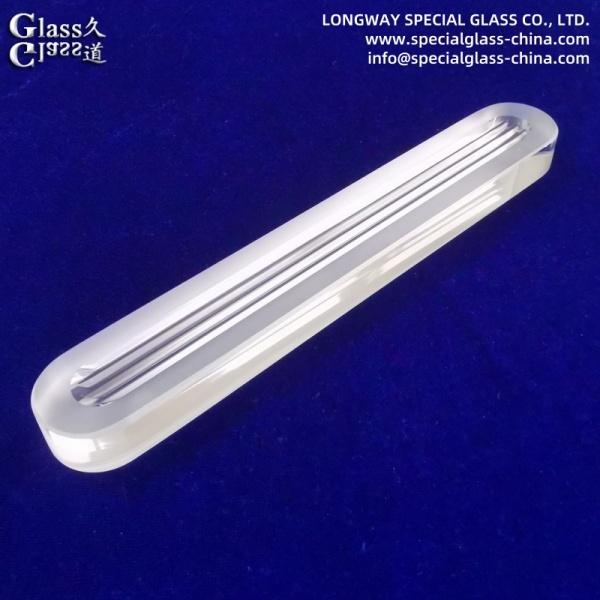

High Temperature Resistant Tempered Glass Gauge Glass for Boiler Water Level Indicator & Pressure Vessel
High Temperature Resistant Tempered Glass Gauge Glass for Boiler Water Level Indicator & Pressure Vessel
1. Core Material & Manufacturing:
-
Base Material: High-quality, optically clear soda-lime glass or borosilicate glass.
-
Key Process: Precision-cut glass that undergoes thermal tempering and often chemical strengthening to create tempered gauge glass.
2. Defining Physical & Performance Properties:
-
Extreme Temperature & Pressure Resistance: Specifically engineered to withstand the high internal temperatures (up to 300°C+) and pressures of steam boilers and vessels without failing.
-
Thermal Shock Resilience: Withstands rapid temperature fluctuations between steam/water phases and ambient conditions without cracking.
-
High Mechanical Strength: Tempering provides superior resistance to vibration, mechanical stress, and hydraulic pressure compared to ordinary glass.
-
Chemical Durability: Resistant to corrosion and etching from hot water, steam, and common boiler water treatment chemicals to maintain long-term clarity.
-
Safety Feature: Designed to contain failure, often fragmenting into less hazardous granular pieces if critically overstressed.
3. Primary Function in a System:
-
Critical Visual Monitoring Component: Serves as the transparent window in a water level gauge or sight glass, allowing for direct, real-time visual inspection of liquid levels inside a sealed vessel.
-
Safety & Process Control: Enables operators to safely monitor boiler water levels to prevent dangerous dry-firing or overfilling, which is vital for operational safety and efficiency.
-
Pressure Boundary: Forms an integral part of the pressure-containing assembly, maintaining a leak-proof seal under demanding conditions.
4. Target Applications & Industries:
-
Steam Boilers & Generators: For fire-tube, water-tube, and electric boilers in industrial plants, laundries, and hospitals.
-
Industrial Pressure Vessels: Reactors, autoclaves, condensers, and tanks requiring level sighting.
-
Power Generation: In fossil fuel and biomass power stations for boiler drum level indication.
-
Marine & Locomotive: For steam boilers on ships and heritage steam engines.
-
Heating Systems: In large commercial and institutional heating systems.
| Item | Gauge glass, Sight glass |
| Material | borosilicate glass, Float glass, borofloat |
| Diameter Tolerance | +0/-0.2 mm |
| Thickness Tolerance | +/-0.2 mm |
| Processed | By Cutting,Grinding,Tempering, Polishing |
| Working temperature | Resisting high temperature shock |
| Surface Quality | 80/50,60/40 |
| Material Quality | No scratches and air bubble |
| Transmission | >90% for visible light |
| Chamfer | 0.1-0.3 mm x 45 degree |
| Surface Coating | Available |
| Usage | Photography, Optics, Lighting system, industrial area. |
