Industrial CNC Rebar Bending Machine YT-12S
Product introduction:
1 1,600 stirrups can be produced per hour, with each batch yielding up to 8 tons.
2. One year's free warranty service.
3. The electric components are from well-known brands such as Schneider and Chint. The power is provided by a servo motor for high efficiency and accuracy.
4. Supports a multi-language interactive interface for simple operation.
5. The steel coil is drawn in a straight line, bent, and cut.
6. Sheet metal panel with a standard 5 mm door for a long service life and increased wear resistance.
7. IKO bearings, imported from Japan, are used in the key parts to ensure a long service life.

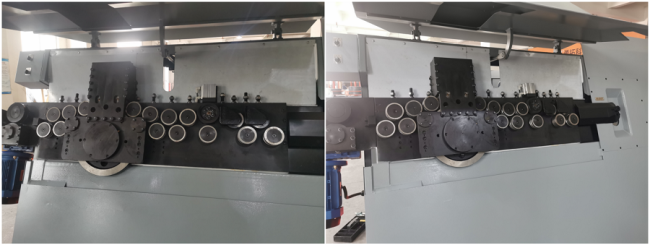

8. The straightening wheel is made of alloy steel for a longer service life.
Product Parameter
|
Rebar Cnc Bending Machine YT-12S |
|||
|

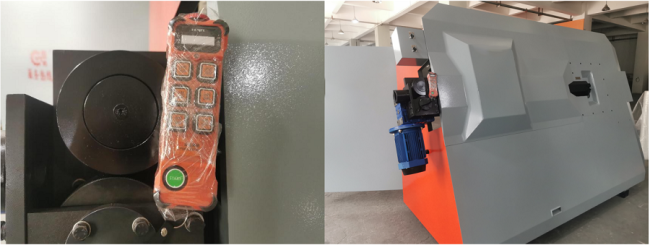

Remote Function |
3 way control |
Straightening System |
S ARC STRAIGHT |
|
Single Wire |
6-12MM |
Production Capacity |
750PCS/Hour(single) |
|
Double Wire |
6-10MM |
Production Capacity |
1500PCS/Hour(double) |
|
Bending Angle |
1-180° |
Bending Head Move |
Up and down |
|
Max Traction Speed |
130M/MIN |
Bending Direction |
Bi-direction |
|
Length Accuracy |
±1MM |
Machine Dimension |
3000*1280*2000MM |
|
Angle Accuracy |
±1° |
Collector Dimension |
6600*810*1640MM |
|
Main Machine Weight |
2000KG |
Rated Power |
29.5KW |
Product details:

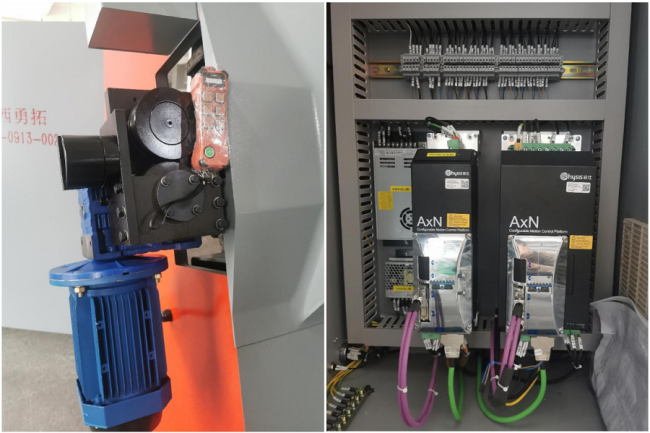

1. The cutting motor uses a servo motor instead of a brake motor, so there is no need to worry about damage to the brake or reduced working life.
2. The encoder and sensor use the IFM (Germany) brand and we offer a 5-year warranty.
3. Reverse feeding system for making plate stirrups.
FAQ:
1. Is your company a manufacturer or a trading company?
We have manufactured steel bar processing equipment for over 10 years. Our professional R&D team, reliable quality assurance system and advanced production process ensure consistent product quality, and we have obtained a number of patents during the development process. Our products are among the best in the domestic industry.
2. Can you help us to contact a shipping agent?
Yes, of course. We have many years of export experience and know of many reliable forwarders offering good prices and services. We can provide you with the best sea freight quotation.
3. What is the warranty period for the CNC stirrup bender?
We can provide a one-year after-sales service for CNC stirrup benders. If any parts break within one year, we will provide free replacement parts.
4. What is the difference between the YT-12 and the YT-12S?
Compared to the YT-12, the YT-12S has a reverse feeding function, which can produce plate stirrups and is especially suited to highway construction.
Factory Show
