Smooth Concrete Cutting Laser Screed Machine Honda GP200 Concrete Laser Screed

Price Negotiable
Price: Negotiable
MOQ: 1 Set
Delivery Time: 14 Work Days
Brand: Jiutian
Product Description

Product Introduction:

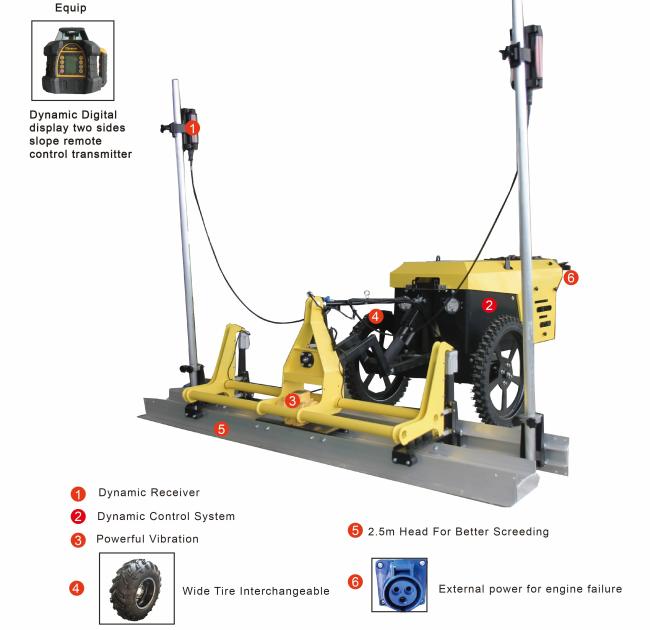

1. Laser emitter with automatic control for two-way slopes and flat surfaces. Servo drive system with strong overload capacity, accurate timing and smooth operation.
2. Dynamic brand/Topcon laser system which operates with exceptional dependability and precision.
3. The hybrid drive offers greater flexibility at a lower cost.
It makes use of highly advanced integrated hydraulic systems, closed-loop control technology, precision laser technology and microcomputer automatic control.
5. High-precision automatic control system, independently developed by Dynamic, with good results.

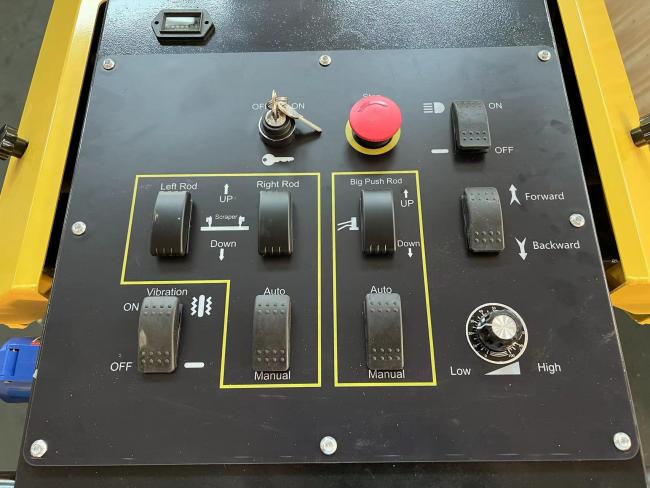

6. Operation panel: convenient and simple.
7. Aluminium-magnesium alloy levelling head. Durable standard 2.5 metres, optional 3 metres.
8. High-frequency vibration motor: good pulping effect.



Product Parameter

Concrete Laser Screed JT-2500

Flattening Head Width

2500MM

Paving Thickness

30-300MM

Walking Speed

0-6KM/H

Walking Drive

Servo Motor Drive

Exciting Force

1000N

Engine

Honda GP200

Power

5.5HP

Weight

295KG

Dimension

2750*2950*2050MM

Laser System

Two Side Slope Remote Control Transmitter

Control Mode

Laser Scanning+High Precision Servo Push Rod



Product Details
