3.7V 3200mAh Lithium Polymer Battery with 500 Cycles and 1C Discharge
Product Name:
OiD103567-3200 Lithium Polymer Battery
Advantages:
- High energy density for extended usage
- Long cycle life with reliable performance
- Safe and stable operation under various conditions
- Lightweight and compact design
Specifications:
|
Parameter |
Value |
|
Nominal Voltage |
3.7V |
|
Capacity |
3200mAh (0.2C discharge) |
|
Charging Voltage |
4.2V |
|
Discharge Cut-off Voltage |
3.0V |
|
Standard Charging Current |
0.2C |
|
Max Charging Current |
1.0C (20°C to 45°C) |
|
0.5C (10°C to 20°C) |
|
|
0.2C (0°C to 10°C) |
|
|
Standard Discharge Current |
0.2C |
|
Max Discharge Current |
1.0C (25°C to 60°C) |
|
0.5C (0°C to 25°C) |
|
|
0.2C (-20°C to 0°C) |
|
|
Battery Impedance |
≤150mΩ |
|
Weight |
Approx. 53.0g |
|
Dimensions |
69.0mm (L) x 35.0mm (W) x 10.45mm (T) |
Cycle Life:
|
Condition |
Performance |
|
Charge/Discharge Cycles |
500 cycles at 0.2C |
|
Capacity Retention |
≥80% after 500 cycles |

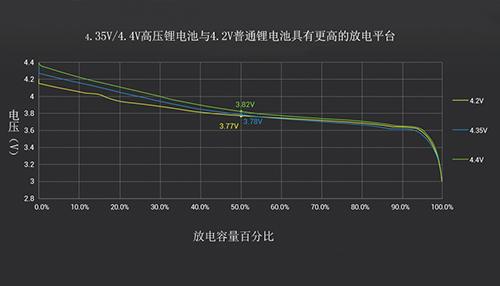

Discharge Curve:
Operating Temperature Range:
|
Condition |
Temperature Range |
|
Charging |
0°C to 45°C |
|
Discharging |
-20°C to 60°C |
|
Storage (50% SOC) |
-10°C to 25°C (12 months, ≥85% capacity) |
|
-10°C to 45°C (6 months, ≥85% capacity) |
|
|
-10°C to 55°C (1 month, ≥90% capacity) |
Certifications:
- Compliant with GB/T 18287-2013, IEC/EN61960, and UL1642 standards.
Key Features:
- High capacity and energy efficiency
- Built-in protection circuit for overcharge, over-discharge, and short-circuit protection
- Low self-discharge rate for long storage life
- Environmentally friendly and RoHS compliant
Applications:
- Portable electronic devices
- Medical equipment
- IoT devices
- Wearable technology
- Backup power systems
Usage Warnings & Precautions:
- Use only with the specified charger.
- Avoid short-circuiting the battery terminals.
- Do not expose the battery to high temperatures or fire.
- Discontinue use if the battery shows signs of swelling, leakage, or damage.
- Keep away from children and pets.
Storage Guidelines:
- Store the battery at 20±5°C for optimal performance.
- Maintain a charge level of 50% for long-term storage.
- Recharge the battery every 3 months if not in use.
Warranty & Disclaimer:
- 12-month warranty from the date of shipment.
- The warranty does not cover damage caused by improper use, mishandling, or unauthorized modifications.
- Always follow the manufacturer’s guidelines for safe usage.
