3.7V 160mAh Lithium Polymer Battery 500 Cycles OiD322035-160
Product Name:
OiD322035-160 Lithium Polymer Battery
Advantages:
- High energy density and lightweight design.
- Long cycle life with up to 500 cycles.
- Stable performance across a wide temperature range.
- Built-in protection circuit for overcharge, over-discharge, and short-circuit protection.
- RoHS compliant, ensuring environmental safety.
Specifications:
|
Parameter |
Value |
|
Model |
OiD322035-160 |
|
Nominal Voltage |
3.7V |
|
Nominal Capacity |
160mAh (0.2C discharge) |
|
Minimum Capacity |
150mAh (0.2C discharge) |
|
Charging Voltage |
4.2V |
|
Discharge Cut-off Voltage |
3.0V |
|
Standard Charging Current |
0.2C |
|
Max Charging Current |
1.0C (20°C~45°C) |
|
Standard Discharge Current |
0.5C |
|
Max Discharge Current |
1.0C (25°C~55°C) |
|
Weight |
Approx. 3.7g |
|
Dimensions |
34.0mm (Max Length) x 20.5mm (Max Width) x 3.2mm (Max Thickness) |
|
Internal Resistance |
≤350mΩ |
|
Shipment Voltage |
3.90±0.05V |
Cycle Life:
|
Cycle Condition |
Cycle Life |
|
Charge/Discharge Cycles |
500 cycles at 0.2C, 23±2°C |
|
Capacity Retention |
≥80% after 500 cycles |

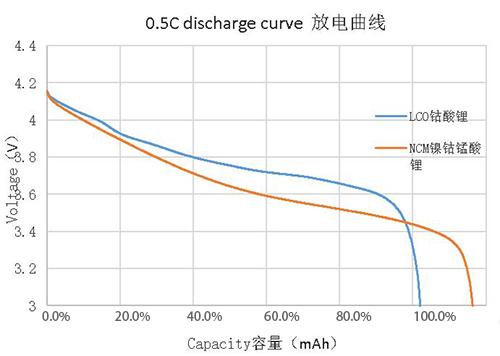

Discharge Curve:
Operating Temperature Range:
|
Condition |
Temperature Range |
|
Charging Temperature |
0°C ~ 45°C |
|
Discharging Temperature |
-20°C ~ 60°C |
|
Storage Temperature |
-10°C ~ 25°C (12 months, ≥85% capacity) |
|
-10°C ~ 45°C (6 months, ≥85% capacity) |
|
|
-10°C ~ 55°C (1 month, ≥90% capacity) |
Certifications:
- RoHS compliant.
- Meets GB/T 18287-2013, IEC/EN61960, and UL1642 standards.
Key Features:
- High Safety: Built-in protection against overcharge, over-discharge, and short circuits.
- Long Lifespan: Up to 500 charge/discharge cycles with minimal capacity loss.
- Wide Temperature Range: Operates efficiently in both low and high-temperature environments.
- Lightweight Design: Ideal for portable and compact devices.
Applications:
- Wearable devices (smartwatches, fitness trackers).
- Bluetooth headsets and earbuds.
- Medical devices.
- IoT devices and sensors.
- Portable consumer electronics.
Usage Warnings & Precautions:
- Use only the specified charger to avoid overcharging.
- Avoid short-circuiting the battery terminals.
- Do not expose the battery to high temperatures or direct sunlight.
- If the battery shows signs of swelling, leakage, or damage, discontinue use immediately.
- Keep the battery away from children and pets.
Storage Guidelines:
- Store the battery at 50% SOC (State of Charge) in a cool, dry place.
- Recommended storage temperature: 20±5°C.
- Charge the battery to 60% capacity every 3 months if not in use.
Warranty & Disclaimer:
- Warranty: 12 months from the date of shipment.
