3.7V 160mAh Lithium Polymer Battery with 300 Cycles and 1C Discharge
Product Name:
OiD322035C-160 Lithium Polymer Battery
Advantages:
- High energy density and lightweight design
- Stable performance across a wide temperature range
- Long cycle life with reliable safety features
Specifications:
|
Parameter |
Value |
|
Nominal Voltage |
3.7V |
|
Minimum Capacity |
150mAh (0.2C discharge) |
|
Typical Capacity |
160mAh (0.2C discharge) |
|
Charging Voltage |
4.2V |
|
Discharge Cut-off Voltage |
3.0V |
|
Standard Charging |
0.2C/4.2V |
|
Max Charging Current |
1.0C/4.2V (20°C~45°C) |
|
Standard Discharging |
0.5C/3.0V |
|
Max Discharging Current |
1.0C/3.0V (25°C~55°C) |
|
Weight |
Approx. 3.7g |
|
Shipment Voltage |
3.90±0.05V |
|
Battery Impedance |
≤320mΩ |
|
Terminal Type |
JST ZHR-2P / JCTC 11501H00-2P-HF |
Cycle Life:
|
Condition |
Performance |
|
Charge/Discharge Cycles |
300 cycles at 0.2C, 23±2°C |
|
Capacity Retention |
≥85% after 300 cycles |

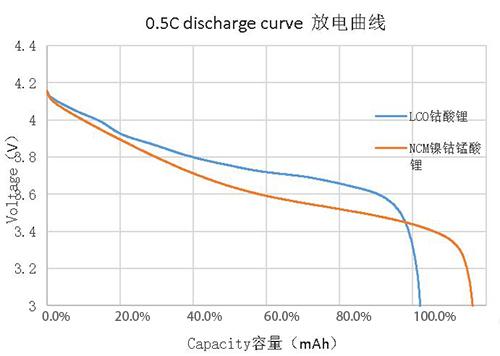

Discharge Curve:
Operating Temperature Range:
|
Condition |
Temperature Range |
|
Charging |
0°C ~ 45°C |
|
Discharging |
-20°C ~ 60°C |
|
Storage (50% SOC) |
-10°C ~ 25°C (12 months, ≥85%) |
|
Storage (50% SOC) |
-10°C ~ 45°C (6 months, ≥85%) |
|
Storage (50% SOC) |
-10°C ~ 55°C (1 month, ≥90%) |
Certifications:
- RoHS Compliant
- CE Certified
Key Features:
- Overcharge, over-discharge, and short-circuit protection
- High-temperature and low-temperature performance
- Compact and lightweight design
Applications:
- Wearable devices
- IoT devices
- Medical devices
- Portable electronics
Usage Warnings & Precautions:
- Use only the original charger to avoid damage.
- Avoid short-circuiting the battery terminals.
- Do not expose the battery to high temperatures or fire.
- Stop using the battery if it shows signs of leakage, swelling, or damage.
Storage Guidelines:
- Store the battery at 20±5°C for optimal performance.
- Charge the battery to 60% capacity if unused for more than 3 months.
- Keep the battery in a dry and ventilated place.
Warranty & Disclaimer:
- 12-month warranty from the date of shipment.
- The manufacturer is not responsible for accidents caused by improper use or handling.
