7.4V 230mAh Lithium Ion Battery 300 Cycles 1.5C Discharge
OiD502023-2S-230 7.4V 230mAh 1.5C Discharge 300 Cycles Lithium Polymer Battery
Product Name:
OiD502023-2S-230 Lithium Polymer Battery
Advantages:
- High energy density
- Long cycle life
- Lightweight and compact design
- Safe and reliable performance
Specifications:
|
Parameter |
Value |
|
Nominal Voltage |
7.4V |
|
Minimum Capacity |
200mAh (0.2C discharge) |
|
Typical Capacity |
230mAh (0.2C discharge) |
|
Charging Voltage |
8.4V |
|
Discharging Cut-off Voltage |
6.0V |
|
Standard Charging |
0.2C/8.4V |
|
Max Charging |
1.0C/8.4V |
|
Standard Discharging |
0.2C/6.0V |
|
Max Discharging |
1.5C/6.0V |
|
Weight |
Approx. 9.0g |
|
Shipment Voltage |
7.80V±0.1V |
|
Battery Pack Impedance |
≤530mΩ |
Cycle Life:
|
Condition |
Cycles |
Capacity Retention |
|
0.2C Charge/Discharge at 23±2℃ |
300 |
≥80% |

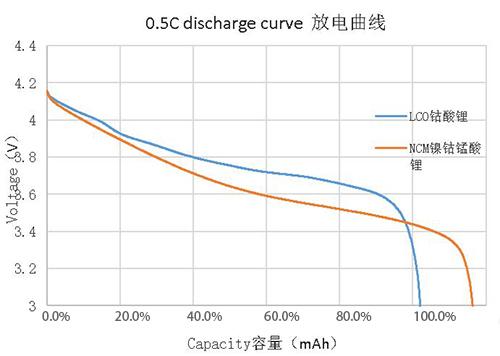

Discharge Curve:
Operating Temperature Range:
|
Condition |
Temperature Range |
|
Charging |
0℃ ~ 45℃ |
|
Discharging |
-20℃ ~ 60℃ |
|
Storage (50% SOC) |
-10℃ ~ 25℃ (12 months, ≥85%) |
|
Storage (50% SOC) |
-10℃ ~ 45℃ (6 months, ≥85%) |
|
Storage (50% SOC) |
-10℃ ~ 55℃ (1 month, ≥90%) |
|
Recommended Storage Temperature |
20±5℃ |
Certifications:
- GB/T 18287-2013
- IEC/EN61960
- UL1642
Key Features:
- Overcharge, over-discharge, and short-circuit protection
- High-temperature and low-temperature performance
- RoHS compliant
Applications:
- Portable electronic devices
- Medical devices
- IoT devices
- Wearable technology
Usage Warnings & Precautions:
- Use the original battery charger
- Avoid short-circuiting the battery
- Do not expose to high temperatures or pressure
- Stop using if any abnormalities are observed
Storage Guidelines:
- Store at 20±5℃ for optimal performance
- Charge to 60% capacity if not used for 3 months
- Remove from devices when not in use
Warranty & Disclaimer:
- 12-month warranty from the shipment date
- Proper handling and usage are required
- Manufacturer is not responsible for accidents caused by improper use
