7.4V 980mAh Lithium Polymer Battery with 2C Discharge and 300 Cycles
Product Name
OiD723045C-2S-980 Lithium Polymer Battery
Advantages
- High energy density
- Long cycle life
- Lightweight and compact design
- Reliable performance under various conditions
Specifications
|
Parameter |
Value |
|
Nominal Voltage |
7.4V |
|
Minimum Capacity |
950mAh |
|
Typical Capacity |
980mAh |
|
Charging Voltage |
8.4V |
|
Discharging Cut-off Voltage |
6.0V |
|
Standard Charging Current |
0.2C |
|
Max Charging Current |
1.0C |
|
Standard Discharging Current |
0.2C |
|
Max Discharging Current |
2.0C (10s) |
|
Weight |
Approx. 36.5g |
|
Shipment Voltage |
7.80V ± 0.1V |
|
Battery Pack Impedance |
≤220mΩ |
|
Connector Type |
JST ZHR-2P / JCTC 11501H00-2P-HF |
Cycle Life
|
Condition |
Cycles |
Capacity Retention |
|
0.2C Charge/Discharge at 23±2℃ |
300 |
≥80% |

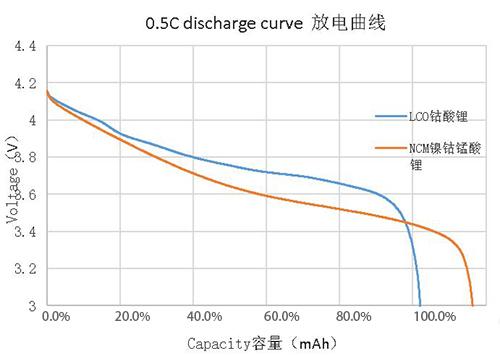

Discharge Curve
Operating Temperature Range
|
Condition |
Temperature Range |
|
Charging |
0℃ ~ 45℃ |
|
Discharging |
-20℃ ~ 60℃ |
|
Storage (50% SOC) |
-10℃ ~ 25℃ (12 months, ≥85%) |
|
Storage (50% SOC) |
-10℃ ~ 45℃ (6 months, ≥85%) |
|
Storage (50% SOC) |
-10℃ ~ 55℃ (1 month, ≥90%) |
Certifications
- RoHS Compliant
- UL1642 Certified
- IEC/EN61960 Compliant
- GB/T 18287-2013 Compliant
Key Features
- Overcharge, over-discharge, and short-circuit protection
- High discharge rate capability
- Low self-discharge rate
- Environmentally friendly
Applications

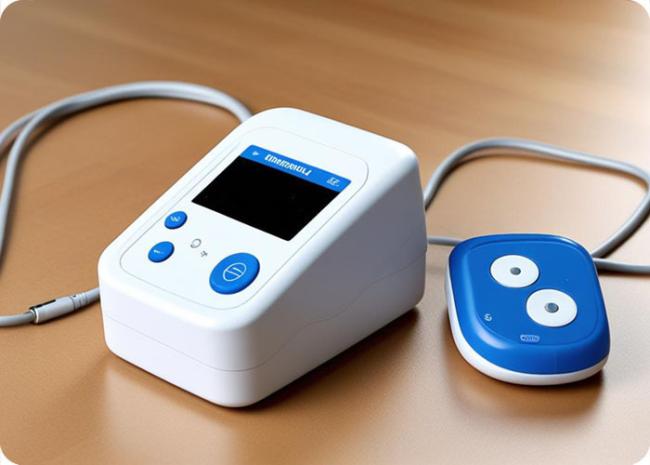

- Portable medical devices
- Handheld scanners
- Wireless communication devices
- Consumer electronics
- IoT devices
Usage Warnings & Precautions
- Use only with specified chargers
- Avoid short-circuiting the battery
- Do not expose to high temperatures or direct sunlight
- Do not disassemble or modify the battery
- Keep away from children and pets
Storage Guidelines
- Store at 20±5℃ for optimal performance
- Charge to 60% capacity if storing for more than 3 months
- Avoid storing in humid or high-temperature environments
Warranty & Disclaimer
- 12-month warranty from the date of shipment
- Warranty does not cover misuse, improper storage, or unauthorized modifications
- Manufacturer is not liable for accidents caused by improper use
