3.7V 700mAh Li-ion Battery with 500 Cycles and High Energy Density
Product Name
OiD513436N700 Rechargeable Li-ion Polymer Battery
Advantages
- High Energy Density (2.59Wh)
- Compact Prismatic Design
- Robust Safety Features
Specifications
|
Parameter |
Specification |
|
Nominal Capacity |
700mAh |
|
Nominal Voltage |
3.7V |
|
Rated Energy |
2.59Wh |
|
Dimensions (L×W×H) |
40.0mm × 34.0mm × 5.1mm |
|
Standard Charge Current |
140mA (0.2C) |
|
Max Charge Current |
700mA (1C) |
|
Standard Discharge Current |
140mA (0.2C) |
|
Max Discharge Current |
700mA (1C) |
|
Charge Voltage Limit |
4.2V |
|
Discharge Cut-off Voltage |
3.0V |
Cycle Life
|
Test Condition |
Performance |
|
0.5C Charge / 0.5C Discharge @25°C |
≥500 cycles (80% capacity retention) |

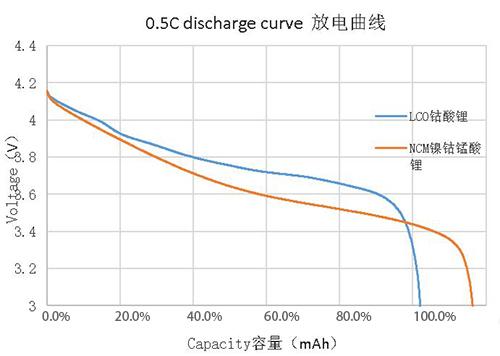

Discharge Curve
Operating Temperature Range
|
Operation |
Temperature Range |
|
Charging |
0°C to 45°C |
|
Discharging |
-20°C to 60°C |
|
Storage (≤1 month) |
-10°C to 55°C |
|
Long-Term Storage (≤12 months) |
-10°C to 25°C |
Certifications
Compliant with Li-ion battery safety standards (IEC 62133-2:2017, UL1642)
Key Features
- Built-in protection circuit (overcharge/over-discharge/short-circuit)
- Low self-discharge rate (<3% per month)
- Vibration-resistant design (10-55Hz, 0.8mm amplitude)
Applicatio
- Portable medical devices
- IoT sensors
- Consumer electronics
ns
- Portable medical devices
- IoT sensors
- Consumer electronics
Usage Warnings & Precautions
- Do not exceed 4.2V charging voltage
- Avoid discharge below 3.0V
- Do not expose to temperatures >60°C
Storage Guidelines
- Store at 30-50% SOC
- Recommended storage: 20±5°C
- Recharge every 3 months for long-term storage
Warranty & Disclaimer
- 12-month performance warranty
- Not liable for misuse or improper storage
