3.7V 750mAh Rechargeable Li-ion Battery for Pet Trackers
Product Name
OiD801752N750 Rechargeable Li-ion Battery
Advantages
- High energy density and lightweight design
- Stable performance with built-in protection circuit
- RoHS compliant and environmentally friendly
Specifications
|
Parameter |
Value |
|
Nominal Voltage |
3.7V |
|
Capacity (Typical/Min) |
750mAh / 730mAh (0.2C discharge) |
|
Charging Voltage |
4.2V |
|
Discharge Cut-off Voltage |
3.0V |
|
Standard Charging Current |
0.2C |
|
Max Charging Current |
1.0C (20°C–45°C) |
|
Standard Discharging Current |
0.2C |
|
Max Discharging Current |
1.0C (25°C–60°C) |
|
Impedance |
≤180mΩ |
|
Weight |
Approx. 14.1g |
Cycle Life
|
Condition |
Performance |
|
Charge/Discharge Cycles |
500 cycles (0.2C, 23±2°C) |
|
Capacity Retention |
≥80% of initial capacity |

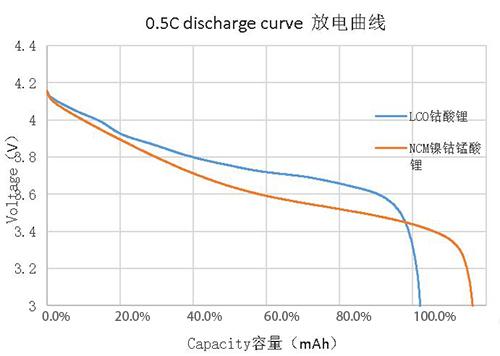

Discharge Curve
Operating Temperature Range
|
Condition |
Temperature Range |
Current Limit |
|
Charging |
0°C to 45°C |
0.2C (0°C–10°C) |
|
0.5C (10°C–20°C) |
||
|
1.0C (20°C–45°C) |
||
|
Discharging |
-20°C to 60°C |
0.2C (-20°C–0°C) |
|
0.5C (0°C–25°C) |
||
|
1.0C (25°C–60°C) |
||
|
Storage (50% SOC) |
-10°C to 25°C (12 months, ≥85%) |
N/A |
Certifications
- Complies with GB/T 18287-2013, IEC/EN61960, and UL1642 safety standards.
Key Features
- Overcharge/over-discharge/short-circuit protection.
- Low self-discharge rate for long shelf life.
- Compact dimensions: Max 54.0mm (L) × 17.7mm (W) × 8.2mm (H).
Applications
- Pet tracking devices and wearable tech.
- Small medical devices and IoT sensors.
- Portable consumer electronics.
Usage Warnings & Precautions
- Avoid short-circuiting terminals or exposing to water.
- Do not disassemble, crush, or incinerate.
- Stop use if swelling, leakage, or overheating occurs.
Storage Guidelines
- Store at 20±5°C (recommended) with 50% SOC.
- Recharge to 60% every 3 months if unused.
Warranty & Disclaimer
- 12-month warranty from shipment date.
- Misuse voids warranty; follow specifications strictly.
