3200mAh 18650 Battery 6.4A Discharge for Smart Home Devices
ICR18650A32SS 3.75V 3200mAh 6.4A 500 Cycles Smart Home 18650 Li-Ion Battery
Product Name
ICR18650A32SS (18650-32A)
Advantages
- High-capacity 3200mAh design for extended smart home operation
- Optimized 6.4A discharge for smart home 18650 Li-Ion Battery systems
- Reliable performance for continuous home automation applications
Specifications
|
Parameter |
Value |
|
Model |
ICR18650A32SS |
|
Chemistry |
Li-Ion |
|
Nominal Voltage |
3.75V |
|
Capacity |
3200mAh |
|
Standard Charge Current |
0.2C (640mA) |
|
Max Charge Current |
0.5C (1600mA) |
|
Max Discharge Current |
6.4A |
|
Discharge Cut-off |
2.75V |
|
Charge Cut-off |
4.35V |
|
Internal Resistance |
≤100mΩ |
|
Weight |
50g |
|
Dimensions |
18mm × 65mm (Diameter × Height) |
Cycle Life
|
Condition |
Performance |
|
Standard Cycle (0.2C) |
≥500 cycles (80% capacity retention) |

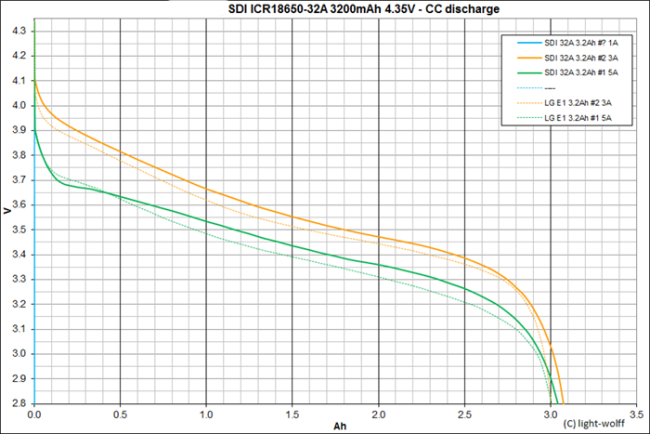

Discharge Curve
Operating Temperature Range
|
Condition |
Temperature Range |
|
Charging |
0°C to 45°C |
|
Discharging |
-20°C to 60°C |
|
Storage |
-20°C to 50°C |
Certifications
- KC
- RoHS
- MSDS
- IEC/CE compliant
Key Features
- Smart Home Optimized: 6.4A discharge current supports demanding smart home 18650 Li-Ion Battery applications
- Extended Runtime: 3200mAh capacity ensures long operation between charges
- Temperature Stable: Consistent performance across home environment conditions
Applications
- Smart home hubs and controllers
- Wireless security systems
- Home automation devices
- IoT sensor networks
Usage Warnings & Precautions
- Do not exceed 6.4A continuous discharge
- Charge only within specified temperature range
- Use with proper battery management system
Storage Guidelines
- Store at 30-50% charge level
- Ideal storage temperature: 10-25°C
- Recharge every 6 months during storage
Warranty & Disclaimer
- 12-month limited warranty
- Not responsible for improper installation or use
