14500 Rechargeable Li-Ion Battery 850mAh 3.7V 0.85A

Price Negotiable
Price: $0.5 ~ $100.0 / pcs
MOQ: 100pcs
Delivery Time: 3 ~ 7 days for storage
Brand: OiD
Product Description
All Models List Filter and Comparison

ICR14500N8LT 3.7V 850mAh 0.85A 500 Cycles 14500 Rechargeable Li-Ion Battery

Product Name

ICR14500N8LT 14500 Rechargeable Li-Ion Battery

Advantages

  • High energy density and stable voltage output
  • Lightweight design for portable applications
  • Long cycle life with reliable performance

Specifications

Parameter

Value

Nominal Voltage

3.7V

Nominal Capacity

850mAh

Approx. Weight

18g

Internal Resistance

≤80mΩ

Rated Charge Current

170mA

Max Charge Current

340mA (0.5C)

Charging Voltage

4.2V

Rated Discharge Current

170mA

Max Discharge Current

0.85A (1C)

Discharging Cut-off Voltage

2.75V

Max Diameter

14.3mm

Max Height

49mm

Energy

3.1Wh


Cycle Life

Condition

Performance

Standard Cycles (0.5C/0.5C)

≥500 cycles (80% capacity retention)

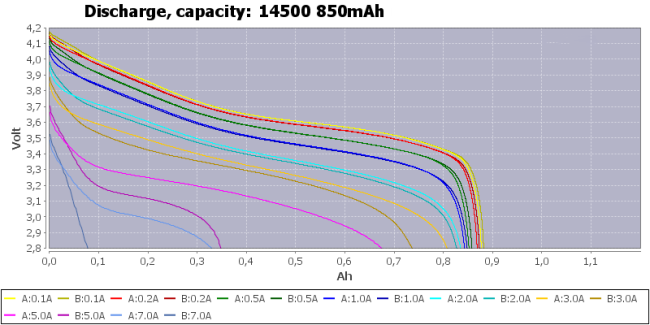

Discharge Curve

Operating Temperature Range

Mode

Temperature Range

Charging

0°C to 45°C

Discharging

-20°C to 60°C

Storage

-20°C to 25°C

Certifications

  • Compliant with RoHS, CE, and UN38.3 standards.

Key Features

  • Safety: Built-in PTC protection and overcharge/discharge prevention.
  • Performance: Low self-discharge rate (<3% per month).
  • Compatibility: Ideal for devices requiring 14500 rechargeable Li-Ion batteries.

Applications

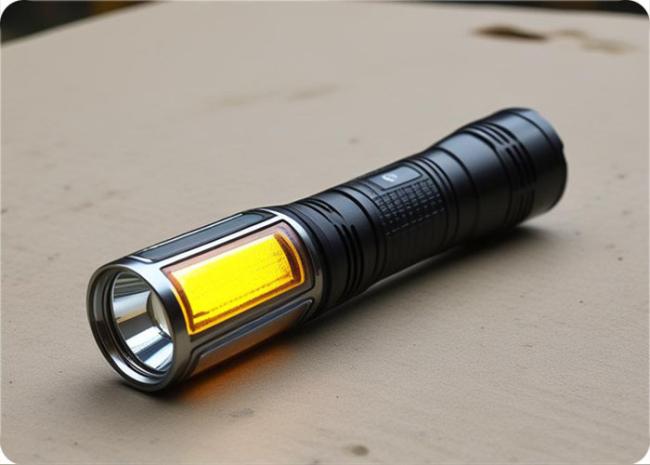

  • Flashlights, LED torches, and portable lighting.
  • Medical devices and electronic toys.
  • Backup power for small electronics.

Usage Warnings & Precautions

  • Do not short-circuit, overcharge, or expose to temperatures above 60°C.
  • Use only with compatible chargers (4.2V CC/CV).
  • Keep away from children and flammable materials.

Storage Guidelines

  • Store at 30–50% charge in a cool, dry environment (20°C recommended).
  • Avoid prolonged storage at full charge or high temperatures.

Warranty & Disclaimer

  • 12-month limited warranty against manufacturing defects.
  • Not liable for misuse, improper storage, or unauthorized modifications.
