High-Discharge 18650 Battery Pack with 15A Continuous Current and 3000mAh Capacity for Custom Lithium-Ion Solutions
We design and manufacture stable, reliable battery pack systems for demanding industrial and professional applications. Our solutions are built on high-performance 18650 lithium-ion cell platforms, combined with deeply integrated BMS, thermal monitoring, and structural engineering, to solve real-world challenges in high power output, long service life, and operational safety.
We do not sell individual cells. We deliver application-ready battery pack systems engineered to reduce field failures, simplify system integration, and support long-term product reliability.
Designed around high-performance industrial 18650 cell platforms
- Continuous Output: up to 15A per cell (no temperature cut)
- High-Power Capability: peak discharge support up to 30A, with pack-level temperature monitoring and protection
- Typical Cell Capacity: ~3000mAh
- Cycle Life: ≥250 cycles with ≥60% capacity retention (cell-level reference)
Optimized for applications where stable high current delivery matters. Continuous discharge capability is clearly defined, while short-duration high-power output is enabled through intelligent thermal monitoring—avoiding overstated or unsafe current claims.
- Custom series / parallel architecture
- Smart BMS featuring:
- Cell balancing
- Over-current, over-voltage, and over-temperature protection
- Optional communication interfaces (UART / CAN / SMBus)
Not just "robust," but designed to eliminate field failure risks. Our packs undergo application-oriented mechanical and environmental considerations to ensure stable operation under vibration, shock, and continuous-duty cycles—helping reduce warranty costs and protect your product reputation.
From early-stage prototyping to volume production, the same engineering team supports your project—minimizing miscommunication and redesign risk.

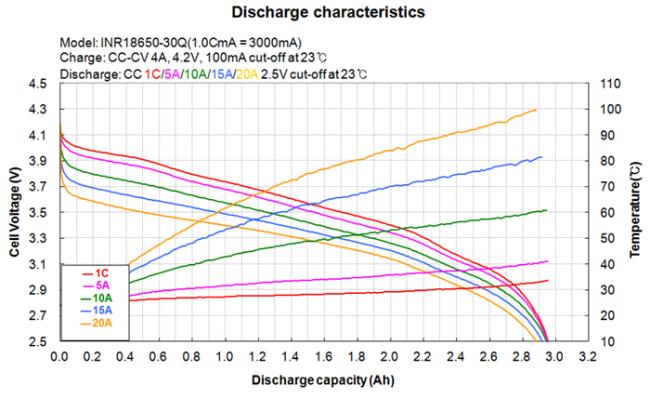

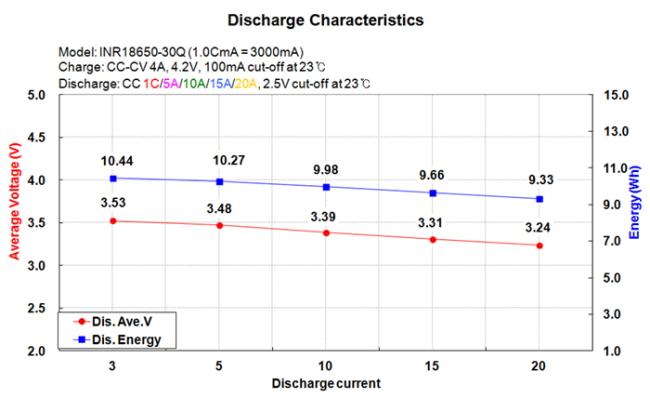

The following parameters are derived from publicly available specifications of a class of high-performance industrial 18650 lithium-ion cells widely used in professional battery pack design. We do not manufacture cells. All battery packs are independently designed, assembled, and validated at system level. Final performance is based on pack-level testing.
| Parameter | Specification |
|---|---|
| Nominal Capacity | ~3,000 mAh |
| Nominal Voltage | 3.6 V |
| Max Charge Voltage | 4.20 V |
| Standard Charge Condition | CC/CV, ~1.5 A |
| Rated Charge Condition* | CC/CV, ~4 A |
| Max Continuous Discharge | 15 A (without temperature cut) |
| Peak / High-Rate Discharge | Up to 30 A with pack-level thermal monitoring (recommended cut-off ~80 °C) |
| Discharge Cut-off Voltage | 2.5 V |
| Cycle Life (Cell Level)** | ≥250 cycles |
| Operating Temperature (Discharge) | −20 °C to 60 °C |
* Rated charge condition refers to a specific test condition used for rated capacity evaluation, not a universal recommended charging current.

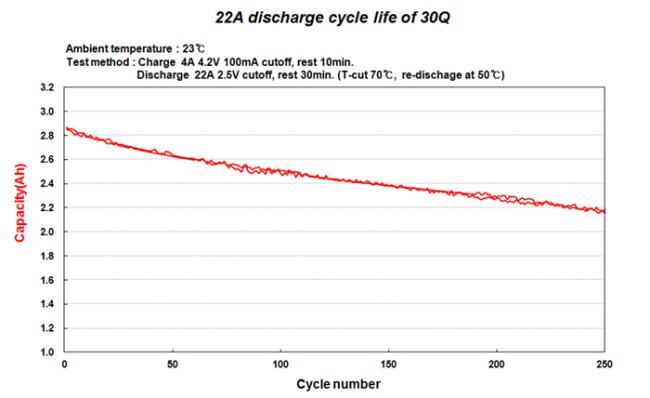

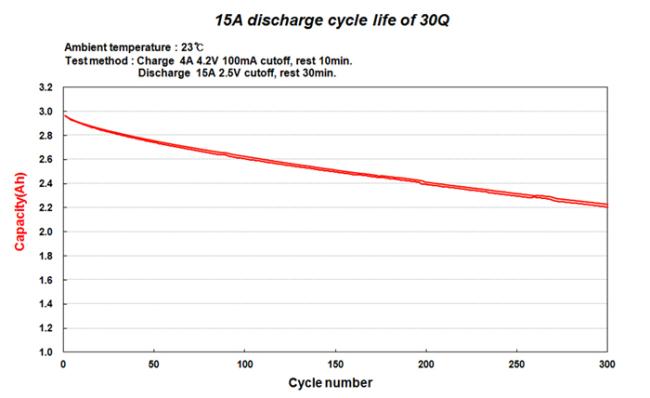

** Cycle life reference: approx. 4A charge / 15A discharge, capacity ≥60% of standard capacity after 250 cycles. Pack-level lifecycle depends on BMS strategy, depth of discharge, and operating conditions.
Recommended Configuration: 5S2P (18V / 6.0Ah)
Key Value: Delivers instant high torque with stable power output, supporting continuous operation without performance drop.
Recommended Configuration: 6S3P (21.6V / 9.0Ah)
Key Value: Designed for 24/7 charge-discharge cycles with enhanced safety for unattended operation environments.
Recommended Configuration: 10S4P (36V / 12.0Ah)
Key Value: Balances high power demand with long runtime, supporting stable system-level voltage under load.
Need a different configuration?
Request a Custom Battery Configuration
- Incoming cell screening for capacity, voltage, and internal resistance consistency
- Multi-layer protection: hardware safeguards + firmware logic
- Pack-level thermal monitoring and fault response strategy
- Designed in line with UN38.3 transport requirements
- Support for CE / UL-related documentation during customer certification
- Optional 100% aging test and key process CPK control upon request
Ready to start your battery project?
Consult Our Engineering Team
A: We perform incoming grading for capacity, voltage, and internal resistance to ensure high consistency within each pack—critical for safety and long service life.
A: Yes. Fast-charge capability depends on configuration, thermal design, and BMS strategy.
A: Yes. Electrical, reliability, and safety-related test data (including UN38.3-related results) can be provided upon request.
A: Prototypes and low-volume pilot builds are supported. MOQ depends on configuration and customization level.
A: Yes. We work closely with customers on both OEM and ODM battery pack programs.
Have a requirement not listed here?
Contact our engineering team to discuss your application.
All third-party trademarks referenced are the property of their respective owners.
We are a battery pack system integrator and designer, not a cell manufacturer, and are not affiliated with, authorized by, or endorsed by any lithium-ion cell brand.
All intellectual property related to our battery pack design, BMS firmware, and manufacturing processes belongs to us.
Specifications are provided for engineering reference only; final performance is defined by pack-level testing and operating conditions.
