Custom Steel Hangar Warehouse 8 Degree Seismic Resistance Q235B/Q345B
Price:
USD 30-100 per square meter/Negotiable
MOQ:
1-10000 square meters
Delivery Time:
25 DAYS
Brand:
YDX
Product Description
Customized Steel Structure Hangar Warehouse Metal Aircraft Repair Hangar
Product Attributes
| Attribute | Value |
|---|---|
| Drawing Design | SAP2000, AutoCAD, PKPM, 3D3S, TEKLA |
| Main Steel Frame | H Steel, Z Or C Purlin |
| Secondary Frame | Hot Dipped Galvanized Purlin |
| Structure | Frame Structure |
| Doors | Sliding door or rolled up door |
| Connection | Bolt Connection And Welded Connection |
| Color | Customer's Request |
| Finishing | Painting or Galvanization |
| Structure Type | Light Steel Structure |
| Seismic Resistance | 8 degree |
| Profile | Hot rolled H steel / Weld H steel |
| Design Parameter | Wind Load, Snow Load and Earthquake |
| Wall Panel | EPS sandwich board and steel sheet |
Product Overview
The Steel Structure Hangar is a durable and reliable metal structure designed for aircraft repair and storage. Constructed using high-quality Q235B and Q345B steel, it offers superior strength and structural integrity, with seismic resistance up to 8 degrees.
Key Features
- Lightweight yet high-strength construction with large span capability
- Short construction period reduces investment costs
- High fire resistance and strong corrosion protection
- Environmentally friendly with easy relocation and recycling
- Economical with low investment requirements
- Versatile applications including factories, warehouses, and workshops
Technical Specifications
| Component | Specification |
|---|---|
| Main Steel Frame | Q235,Q355B Welded H Section Steel |
| Secondary Frame | Q235,Q355B C and Z purlin |
| Bracing | Q235B Angle Steel and Round Bar |
| Cladding System | Various sandwich panels or steel sheets |
| Design Service Life | 40 Years |

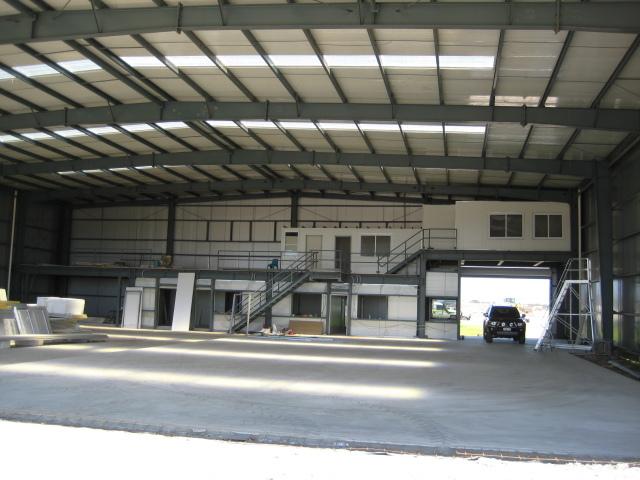

Project Example
Construction time: 2009
Location: Australia
Project: Aircraft Repair Warehouse
Area: 1248 square meters
Features: Steel structure skeleton with rock wool glass fiber insulation, including a 30-meter solid sliding door wall.
Location: Australia
Project: Aircraft Repair Warehouse
Area: 1248 square meters
Features: Steel structure skeleton with rock wool glass fiber insulation, including a 30-meter solid sliding door wall.
Customization Options
We offer comprehensive customization services including:
- Size and layout adjustments
- Material selection (Q235B/Q345B steel)
- Surface treatments (painting or galvanization)
- Door and window configurations
- Insulation options (EPS, fiberglass, rockwool, or PU)
Shipping and Installation
All components are securely packaged in protective materials on steel pallets. We provide detailed installation guidance and support to ensure proper assembly at your site.
Quotation Requirements
Please provide the following information for an accurate quote:
| Question | Details Needed |
|---|---|
| Location | Country and area where structure will be built |
| Size | Length × width × height in mm |
| Wind load | Maximum wind speed in kn/m², km/h, or m/s |
| Snow load | Maximum snow height in kn/m² or mm |
| Earthquake resistance | Required seismic level |
| Additional features | Brick walls, insulation type, doors/windows specifications |
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
