Light Steel Aircraft Hangar Q355 Q235 with H-Section Beam

Price Negotiable

Price: USD 30-100 per square meter/Negotiable

MOQ: 1-10000 square meters

Delivery Time: 25 DAYS

Brand: YDX

Product Description

Prefabricated Light Steel Building Aircraft Hangar Fireproof Steel Structure Warehouse

Product Specifications

Attribute	Value
Drawing Design	SAP2000, AutoCAD, PKPM, 3D3S, TEKLA
Main Steel Frame	H Steel, Z Or C Purlin
Secondary Frame	Hot Dipped Galvanized Purlin
Door	Sliding Door or Rolling Door
Software	CAD, Tekla, Pkpm, 3D3s
Main Frame	Light Steel Q355 Q235
Design Standard	AISC/EN/JIS/GB
Accessories	Window, Door, Gutter + Downspout
Style	Customer Customization
Dimensions	Up to customers' requested
Beam	H-section Beam
Roofing	Sandwich Panel, Single Steel Sheet
Use	Workshop, Plant

Key Advantages

Strength and Durability: Withstands extreme weather conditions with high strength-to-weight ratio
Fast Construction: Prefabricated components enable rapid on-site assembly
Design Flexibility: Customizable to various architectural forms and specifications
Cost-Effective: Long lifespan with minimal maintenance requirements

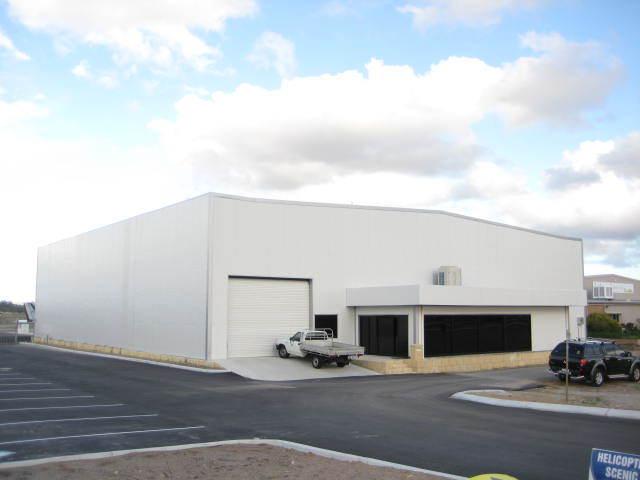

Project Example

Aircraft Repair Warehouse

Construction time: 2009
Location: Australia
Area: 1248 square meters
Features: Steel structure frame with rock wool glass fiber insulation, 30m large sliding door

Technical Specifications

Structural Components

Component	Specification
Main Steel Frame	Q235,Q355B Welded H Section Steel
Secondary Frame	Q235,Q355B C and Z purlin
Cladding System	Various sandwich panel options or steel sheet
Accessories	Aluminium alloy/PVC windows, sliding/rolling doors

Dimensions

Parameter	Range
H beam length	4000-15000mm
Thickness	Web plate: 6-32mm, Wing plate: 6-40mm
Height	200-1200mm
Minimum Order	200 m²

Applications

Our steel structure hangars are suitable for various applications including:

Industrial workshops and plants
Warehouses and storage facilities
Aircraft hangars and maintenance buildings
Commercial buildings and large markets

Steel structure building in industrial application

Support Services

Installation guidance and technical support
Maintenance recommendations
Custom design services
Training for proper usage

Packaging & Shipping

All components are securely packaged for safe transport:

Main steel frames shipped in 40' OT containers
Roof and wall panels in 40' HQ containers
Protected with durable wrapping materials

Packaged steel components ready for shipping

Shipping container with steel structure materials

Quotation Requirements

Please provide the following information for accurate pricing:

Item	Details Required
Location	Country and area where building will be constructed
Size	Length × Width × Height (in mm)
Environmental Loads	Wind load, snow load, and earthquake resistance requirements
Insulation	Type of thermal insulation required (if any)
Openings	Quantity and dimensions of doors and windows
Special Requirements	Crane needs, brick walls, or other custom features

1	Location (where will be built?)	_____country, area
2	Size: lengthwidthheight	_____mm_____mm_____mm
3	wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4	snow load (max. snow height)	_____kn/m2, _____mm
5	anti-earthquake	_____level
6	brickwall needed or not	If yes, 1.2m high or 1.5m high
7	thermal insulation	If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former
8	door quantity & size	_____units, _____(width)mm*_____(height)mm
9	window quanity & size	_____units, _____(width)mm*_____(height)mm
10	crane needed or not	If yes, _____units, max. lifting weight____tons; max. lifting height _____m
