Waterproof Modular Steel Structure Design For Industry Warehouse Building
|
Steel structure building |
||||
|

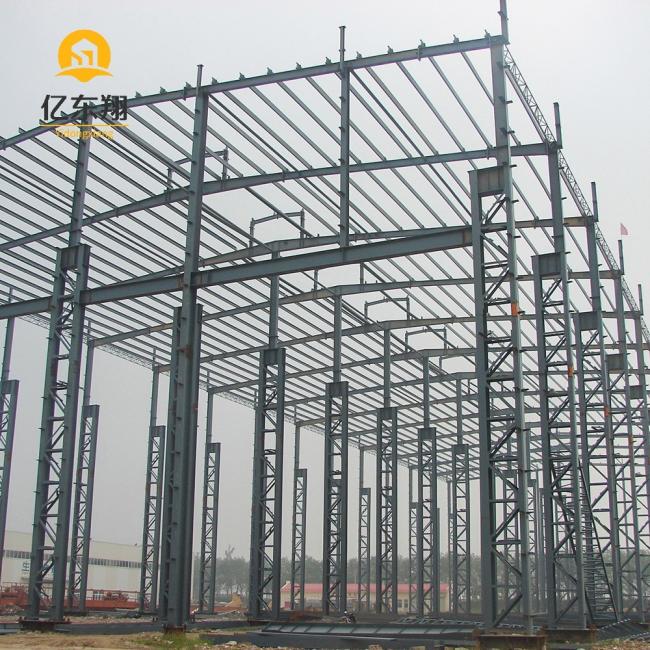

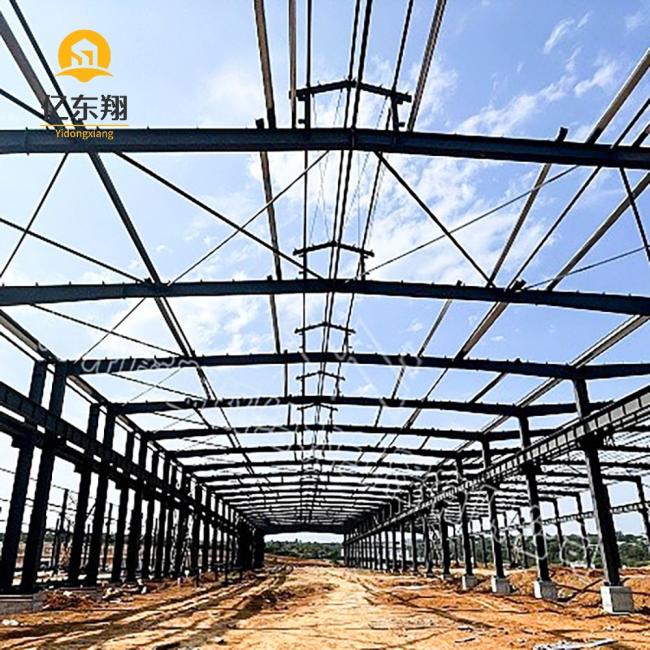

1. Primary Framing |
Box beam column, cross steel column, H-shaped steel column, steel beam |
|||
|
2. Secondary Framing |
Galvanized Z and C sections purlin |
|||
|
3. Roof and Wall panels |
Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU). |
|||
|
4. Steel Decking Floor |
Galvanized steel decking board |
|||
|
5.Structural subsystem |
Divider, gutter, awning, partition wall |
|||
|
6.Mezzanines, Platforms |
Painted or galvanized H beam |
|||
|
7.Other Building Accessories |
Sliding doors, roll up doors, aluminium windows, louvers, etc. |
|||
|
Service Life |
50-70years |
support |
steel angle, steel pipe, steel round |
|
|
Place of Origin |
Qingdao,Shandong,China |
|
|
|
|
Grade |
Q235B, Q345B or as per customer's need |
Application |
workshop, warehouse, poultry house,garage etc |
|
|
Connection |
intensive bolt, ordinary bolt |
Bolt Grade |
M20, M16, M14 etc |
|
|
Downspout |
PVC pipe or as per customer's request |
Window |
PVC steel or aluminum alloy |
|
|
Purlin |
C/Z shape profile |
Door |
sliding or rolling door |
|
|
Main Frame |
Welded or hot rolled H-shaped steel, columns, beams, box beams and columns |
Panel |
EPS/PU/fiber glass/rock wool |
|
|
Drawings & Quotation: |
||||
|
(1) Customized design is welcomed. |
||||
|
(2) In order to promise an accurate quotation and drawings, please let us know the length, width, eave height and local weather. |
||||
Our steel structures prefabricated buildings represent the latest in sustainable construction technology, combining innovative materials with energy-efficient design for superior performance.
- High-Performance Insulation: Composite structures combining aerogel and vacuum insulation panels achieve thermal conductivity of 0.015 W/m*K, reducing energy consumption by 40%
- Phase Change Material Walls: Paraffin-based PCM modules regulate indoor temperature, cutting air conditioning use by 30-50%
- Photocatalytic Coating: TiO₂-coated exteriors decompose pollutants and reflect 80% of solar radiation
- Flexible Solar Tiles: 22% efficiency CdTe thin-film cells generate 30+ kWh daily per 20㎡
- Hybrid Wind-Solar Microgrids: Combines solar with vertical-axis turbines and sodium-ion storage
- AI Energy Management: Predictive algorithms optimize grid/battery switching
- Four-Stage Water Treatment: Achieves 95% water reuse meeting WHO standards
- Vertical Green Walls: Drought-resistant plants sequester 10 kg of CO₂ per m² annually
- Greywater Heat Recovery: Cuts water heater energy by 60%
- Robotic Welding: Reduces material waste by 15%
- Zero-Waste Assembly: 95% prefabrication ensures <2% on-site waste
- Blockchain Carbon Tracking: Monitors full lifecycle carbon footprint
- Transport: Convenient for frequent relocation of construction units
- Durability: All-steel construction with strong earthquake and deformation resistance
- Sealing: Excellent water tightness through strict manufacturing processes
- Versatility: Can be configured as conference rooms, dormitories, kitchens, etc.
- Longevity: 20+ year lifespan with waterproof, fireproof, and anticorrosive properties
-
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
We provide tailored design plans and competitive pricing based on:
- Building dimensions and roof specifications
- Door/window requirements and placement
- Local climate conditions (wind, snow, seismic)
- Insulation material preferences
- Crane requirements (if applicable)
- Special requirements (fireproofing, ventilation, etc.)
Our experienced engineers develop optimal solutions meeting your exact specifications and local building codes.
We offer complete installation support including:
- On-site engineer supervision
- Detailed professional installation drawings
- 24/7 online support during installation
- Comprehensive training for your team
- Weekly quality audit meetings
- Bi-weekly employee training sessions
- ISO 9001 compliant production
- Monthly client feedback collection
- Detailed quality inspection reports
-
Our Service
I. We would offer you the proposed design plan and the most valuable quotation based on the parameter of the following information.
1. Building Dimension: Length*width*height, eave height, roof type etc.
2. Doors and windows: Dimension, quantity, position to put them if you have your own requirements.
3. Local climate: Wind speed, snow load, earthquake etc.
4. Insulation material for roof and wall: Sandwich panel or single metal sheet.
5. Crane if have: Do you need crane beam inside the steel structure? And its capacity.
6. If have other requirements, such as fire proofing, isolated roof ,roof ventilation and daylighting etc, please kindly inform us.
II. In accordance with your requirement, our experienced engineers would provide the best program.
III. We would give the best service to our client, including design, manufacturing,installation and after-sale service etc.We can provide the service of installation, supervision, and training by extra. We will dispatch our engineers team to your country to guide the assemble work, and we will provide the detailed professional installation drawings and guide installation service team keep 24-hour online service ,they will help you to install your steel structure building .
IV. QC processing:
1. Every one week meeting for Quality Audit to solve the weakness during processing and procedures
2. Every two weeks meeting for employee training.
3. Producing as to the International Steel Structure Standard with ISO 9001 Quality Control System
4. Each project, every 1 months, connect with clients for feedback and complaints, then improve the quality control actions.
5. Quality inspection report for every process during production. Ensure 100% good quality products.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | Wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | Snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | Anti-earthquake | _____level |
| 6 | Brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | Thermal insulation | EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets |
| 8 | Door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | Window quantity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | Crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
