Galvanized Steel Structure Shed Construction Outdoor Metal Frame Storage Shed
Price:
$35.00-$63.00
MOQ:
1-10000 square meters
Delivery Time:
20-30 works days
Brand:
YDX
Product Description
Galvanized Steel Structure Shed Construction Outdoor Metal Frame Storage Shed
Steel Structure Shed Storage - Durable and Practical Outdoor Building
Steel structure sheds are pre-engineered, modular buildings designed for versatile applications including storage, industrial workspaces, agricultural shelters, and commercial facilities. Constructed from high-strength steel components fabricated off-site, these sheds offer quick assembly, cost-effectiveness, and exceptional durability, making them ideal for projects requiring rapid deployment in harsh environments.
Design Considerations
Key Design Elements
| Aspect | Description | Tools/Standards |
|---|---|---|
| Load Analysis | Calculates dead, live, wind, and seismic loads (e.g., ASCE 7-22 standards) | SAP2000, ETABS |
| Modular Layout | Customizable spans (10-50m+) and heights to suit functional needs | AutoCAD, Revit |
| Ventilation & Lighting | Integrated skylights, louvers, or ridge vents for airflow and natural light | BIM software for energy modeling |
| Drainage Systems | Sloped roofs (5-10° pitch) and gutter systems to prevent water accumulation | Civil 3D for hydrological analysis |
Design Process Workflow
- Site Assessment: Soil testing and terrain analysis
- 3D Modeling: BIM-based visualization and clash detection
- Code Compliance: Adherence to local building codes (e.g., IBC, Eurocode)
- Material Optimization: Minimizing waste through CNC-driven fabrication plans
Features & Advantages
| Feature | Advantage | Example/Case |
|---|---|---|
| Rapid Assembly | Erected in days vs. months for traditional builds | 1,000㎡ warehouse built in 7 days |
| Low Maintenance | Corrosion-resistant coatings (e.g., galvanization) reduce upkeep costs | Agricultural sheds in coastal regions |
| Scalability | Easy expansion by adding modular sections | Logistics hubs scaling with business growth |
| Weather Resistance | Withstands heavy snow (up to 1.5kN/㎡), winds (150km/h+), and UV exposure | Mountain equipment shelters |
| Eco-Friendly | 100% recyclable steel; reduced carbon footprint | LEED-certified industrial sheds |
Materials & Installation
Primary Materials
| Component | Material Type | Specifications |
|---|---|---|
| Main Frame | Hot-rolled steel (ASTM A36/A572) | Beams (H-shaped, I-shaped), columns, purlins |
| Cladding | Galvanized steel, aluminum | Corrugated sheets or sandwich panels (EPS/PU core) |
| Fasteners | Grade 8.8 bolts, self-drilling screws | ISO 4017 standards for tensile strength |
| Foundation | Reinforced concrete footings | Depth adjusted for soil bearing capacity |
| Protective Coatings | Epoxy primer + PVDF topcoat | 20+ years lifespan in corrosive environments |
Installation Steps
| Stage | Procedure | Equipment |
|---|---|---|
| Site Preparation | Leveling ground, marking anchor bolt positions | Excavators, laser levels |
| Foundation Pouring | Casting concrete footings with embedded bolts | Concrete mixers, vibrators |

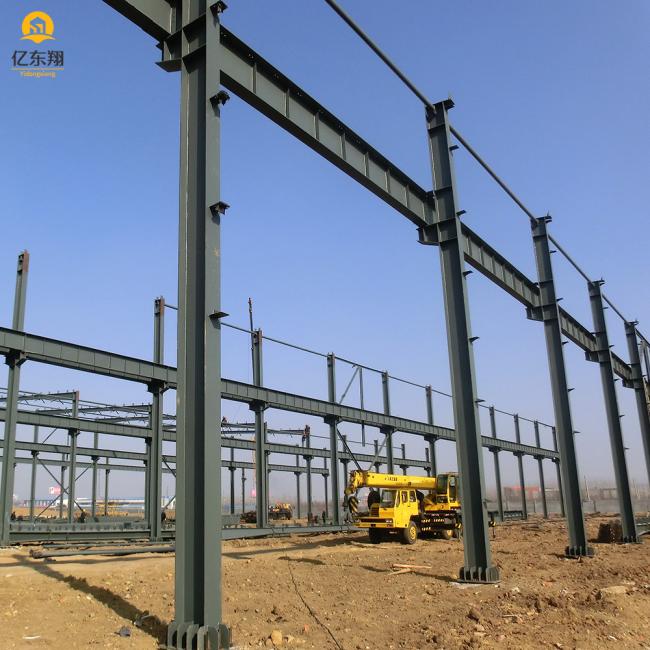

| Frame Erection | Assembling columns and beams using cranes | Mobile cranes, torque wrenches |
| Cladding Installation | Fixing panels/roofing sheets with screws | Scissor lifts, screw guns |
| Final Inspection | Checking alignment, bolt tightness, and safety | Ultrasonic testers, torque testers |
Applications by Sector
| Industry | Use Case | Example Projects |
|---|---|---|
| Industrial | Machinery storage, workshops | Automotive parts warehouses, CNC machine sheds |
| Agricultural | Livestock barns, grain storage | Dairy cow shelters, hay storage units |
| Commercial | Parking sheds, retail kiosks | Supermarket outdoor storage, car dealerships |
| Public Infrastructure | Bus terminals, sports complexes | Covered stadium bleachers, emergency shelters |
| Renewable Energy | Solar panel mounting structures | Solar carports, wind turbine maintenance sheds |
Innovations in 2025
- Smart Sheds: IoT sensors for structural health monitoring (e.g., stress, corrosion)
- Green Integration: Solar-ready roofs and rainwater harvesting systems
- Hybrid Materials: Steel-PET composite panels for lightweight insulation
- Robotic Assembly: AI-guided cranes for precision and speed
Steel Structure Building Components
| Primary Framing | Box beam column, cross steel column, H-shaped steel column, steel beam |
| Secondary Framing | Galvanized Z and C sections purlin |
| Roof and Wall panels | Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU) |
| Steel Decking Floor | Galvanized steel decking board |
| Structural subsystem | Divider, gutter, awning, partition wall |
| Mezzanines, Platforms | Painted or galvanized H beam |
| Other Building Accessories | Sliding doors, roll up doors, aluminium windows, louvers, etc. |
Service Life: 50-70 years
Place of Origin: Qingdao, Shandong, China
Application: workshop, warehouse, poultry house, garage etc
Grade: Q235B, Q355B or as per customer's need
Drawings & Quotation
- Customized design is welcomed
- For accurate quotation and drawings, please provide: length, width, eave height and local weather conditions
Our Service
- We provide proposed design plans and competitive quotations based on your project parameters
- Our experienced engineers will develop the optimal solution for your requirements
- Comprehensive services including design, manufacturing, installation, and after-sales support
- Optional on-site installation guidance with professional engineers and detailed installation drawings
Quality Control Process
- Weekly Quality Audit meetings to address processing weaknesses
- Bi-weekly employee training sessions
- Production according to International Steel Structure Standards with ISO 9001 Quality Control System
- Monthly client feedback collection for continuous improvement
- Detailed quality inspection reports for every production process
Frequently Asked Questions
What kind of Industry Steel Workshop do you need?
Our expert engineers can design buildings of any shape according to your requirements. We take your building investment as seriously as you do.
Are you manufacturer or trade company?
We are professional manufacturers of steel structure buildings.
Do you offer guiding installation on site overseas for warehouse building?
Yes, we can provide installation guidance, supervision, and training as additional services. We dispatch engineer teams to guide assembly and provide detailed installation drawings with 24-hour online support.
What's the quality assurance you provided and how do you control quality?
Our professional QC team monitors quality at all manufacturing stages. We also accept third-party inspections from agencies like SGS or BV.
Could you offer designing service?
Yes, our complete engineering team uses state-of-the-art design software (Tekla, AutoCAD, etc.) to provide economical solutions. Preliminary costing and design are provided at no extra cost.
Is there any warranty available on the steel structure buildings?
Steel structures come with limited warranties and typically last 50-100 years depending on material quality, design standards, construction quality, and maintenance.
Project Inquiry Form
| 1. Location (where will be built?) | _____country, area |
| 2. Size: length*width*height | _____mm*_____mm*_____mm |
| 3. Wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4. Snow load (max. snow height) | _____kn/m2, _____mm |
| 5. Anti-earthquake | _____level |
| 6. Brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7. Thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels; if not, metal steel sheets |
| 8. Door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9. Window quantity & size | _____units, _____(width)mm*_____(height)mm |
| 10. Crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
