Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Price:
$30.00-$65.00
MOQ:
10-10000 square meters
Delivery Time:
20-30 works days
Brand:
YDX
Product Description
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Our prefabricated steel frame buildings are ideal for warehouses, workshops, and industrial facilities. With a construction floor area of approximately 3200 square meters, these structures feature welded steel beams & columns, crane systems, steel cladding sheets, purlins, windows, doors, and other accessories.
Comprehensive Steel Structure Services
We specialize in both light and heavy steel structure projects, offering complete services including:
- Custom design and engineering
- Fabrication of all steel structure components
- Insulation panel production
- Professional on-site installation
Building Components
Main steel frame structure
Laying purlin
H section steel column
End wall
| Component | Specifications |
|---|---|
| Primary Framing | Box beam column, cross steel column, H-shaped steel column, steel beam |
| Secondary Framing | Galvanized Z and C sections purlin |
| Roof and Wall panels | Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU) |
| Steel Decking Floor | Galvanized steel decking board |
| Structural subsystem | Divider, gutter, awning, partition wall |
| Mezzanines, Platforms | Painted or galvanized H beam |
| Other Building Accessories | Sliding doors, roll up doors, aluminium windows, louvers, etc. |
Technical Specifications
| Service Life | 50-70 years |
| Place of Origin | Qingdao, Shandong, China |
| Application | Workshop, warehouse, poultry house, garage etc. |
| Grade | Q235B, Q355B or as per customer's need |
| Bolt Grade | M20, M16, M14 etc |
| Connection | Intensive bolt, ordinary bolt |
| Window | PVC steel or aluminum alloy |
| Downspout | PVC pipe or as per customer's request |
| Main Frame | Welded or hot rolled H-shaped steel, columns, beams, box beams and columns |
Custom Design & Quotation
- Customized designs available to meet specific requirements
- For accurate quotation and drawings, please provide:
- Building dimensions (length, width, eave height)
- Local weather conditions
Why Choose Our Steel Structures?
- Cost-effective: Professional design reduces construction time and material costs
- Eco-friendly: Specialized cladding materials provide excellent insulation; recyclable materials
- Comfortable: Spacious interiors with wide bays and elegant profiles
- Quality assurance: "Quality first, Customer first" company principle
- Proven track record: Many customers have established long-term cooperation

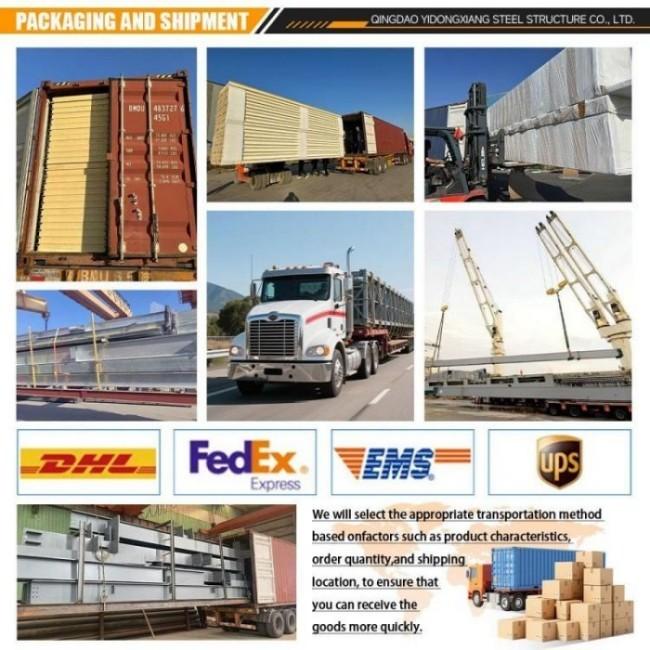

Packing & Loading
All structural components, panels, bolts, and accessories are packed securely for ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts to load goods carefully at our factory loading site to prevent damage.
Project Requirements Form
| 1. Location (where will be built?) | _____country, area |
| 2. Size: length*width*height | _____mm*_____mm*_____mm |
| 3. Wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4. Snow load (max. snow height) | _____kn/m2, _____mm |
| 5. Anti-earthquake | _____level |
| 6. Brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7. Thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used (lower cost) |
| 8. Door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9. Window quantity & size | _____units, _____(width)mm*_____(height)mm |
| 10. Crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
