Fire Resistant Steel Factory Buildings Industrial Grade Metal Structures
Price:
$30.00-$65.00
MOQ:
10-10000 square meters
Delivery Time:
20-30 works days
Brand:
YDX
Product Description
Fire Resistant Steel Factory Buildings - Industrial Grade Metal Structures
Product Highlights
- Environmentally friendly construction
- Cost-effective solution with lower overall expenses
- Extended service life exceeding 50 years
- Exceptional stability with earthquake resistance up to grade 9
- Rapid construction process saving time and labor
- Customizable appearance options available
Structural Components
- Primary Framing: Box beam column, cross steel column, H-shaped steel column, steel beam
- Secondary Framing: Galvanized Z and C sections purlin
- Roof and Wall Panels: Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU)
- Steel Decking Floor: Galvanized steel decking board
- Structural Subsystem: Divider, gutter, awning, partition wall
- Mezzanines, Platforms: Painted or galvanized H beam
- Building Accessories: Sliding doors, roll up doors, aluminium windows, louvers
Technical Specifications
| Service Life | 50-70 years |
| Place of Origin | Qingdao, Shandong, China |
| Applications | Workshop, warehouse, poultry house, garage etc. |
| Grade | Q235B, Q355B or as per customer's need |
| Bolt Grade | M20, M16, M14 etc. |
| Connection | Intensive bolt, ordinary bolt |
| Window | PVC steel or aluminum alloy |
| Downspout | PVC pipe or as per customer's request |

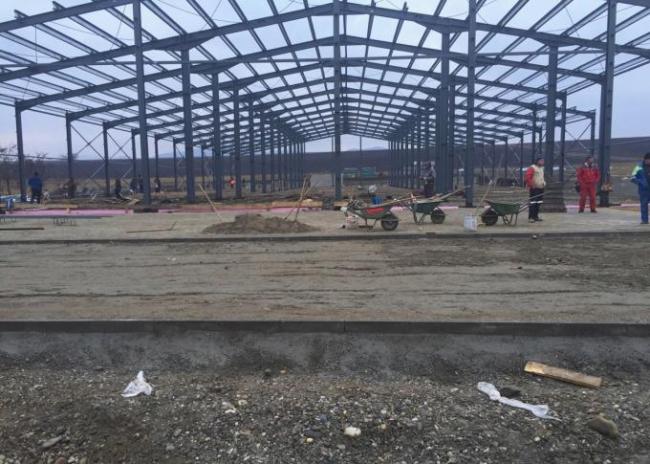

Custom Design & Quotation
We welcome customized designs to meet your specific requirements. For accurate quotations and drawings, please provide:
- Building dimensions (length, width, eave height)
- Local weather conditions
- Any special requirements
We will provide prompt responses with detailed proposals.
Comprehensive Services
- Professional steel structure building design and manufacturing
- Global installation support and technical guidance
- Custom prefabricated steel structure solutions
- Turnkey project management from design to installation
- Detailed CAD drawings and material certifications
- Overseas installation supervision
Quality Assurance
Raw Material Quality Control:
- Thickness tolerance <0.25mm
- Yield and tension strength testing in-house
- Third party inspection certificates
- Traceable mill certificates
Fabrication Quality Control:
- 100% dimension testing (tolerance <1mm)
- 20% ultrasonic welding line testing
- 20% magnetic powder testing
Surface Treatment:
- SA 2.5 shot blasting standard
- Primer application within 5 hours
- Holiday-free coatings
- Dry Film Thickness (DFT) >75UM
Project Specification Form
| Item | Details |
|---|---|
| Location (where will be built?) | _____country, area |
| Size: length*width*height | _____mm*_____mm*_____mm |
| Wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| Snow load (max. snow height) | _____kn/m2, _____mm |
| Anti-earthquake | _____level |
| Brickwall needed or not | If yes, 1.2m high or 1.5m high |
| Thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested |
| Door quantity & size | _____units, _____(width)mm*_____(height)mm |
| Window quantity & size | _____units, _____(width)mm*_____(height)mm |
| Crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
Packing and Transportation
All structure components, panels, bolts and accessories are packed for ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.
