Galvanized Spray Coated Prefab Steel Workshop Custom Construction
Price:
$30.00-$65.00
MOQ:
10-10000 square meters
Delivery Time:
20-30 works days
Brand:
YDX
Product Description
Galvanized Spray Coated Prefab Steel Workshop Custom Construction
Product Overview
Our prefabricated steel structure workshops offer cost-effective construction solutions with superior durability and design flexibility. The galvanized spray coating provides enhanced corrosion resistance for long-term performance.
Cost-Saving Advantages
- Material Efficiency: High strength-to-weight ratio reduces material requirements
- Faster Construction: Quick assembly reduces labor costs and project timelines
- Design Flexibility: Versatile configurations minimize material wastage
- Reduced Foundation Costs: Lighter weight decreases excavation and groundwork expenses
- Low Maintenance: Durable steel construction minimizes ongoing operational costs
Structure Specifications
Our pre-engineered steel buildings feature complete factory design with bolt-connected components for easy on-site assembly, eliminating welding requirements.
| Component | Specification |
|---|---|
| Main Steel Frame | Q345B (S355JR) or Q235B(S235JR) welded/hot rolled H section steel |
| Surface Treatment | Hot dip galvanized or painted |
| Connection Method | All bolts connection |
| Supporting System | C or Z section steel purlins, steel rod bracing, angle steel supports |
| Roof & Wall System | Single corrugated steel sheet (0.3-0.8mm) or sandwich panels (50-150mm) |
Standard Features
| Feature | Description |
|---|---|
| Doors | Sliding or rolled up (manual/auto) |
| Windows | Aluminum alloy or PVC |
| Drainage | PVC downspout with galvanized/stainless steel gutter |
| Ventilation | Stainless steel turbine ventilator |
| Skylight | FRP or PC semi-transparent skylight belt |
Technical Parameters
| Main Frame Dimensions | H beam: 400-1500mm width, 6-32mm web thickness, 6-40mm wing thickness |
| Height Range | 200-1200mm |
| Color Options | Customizable to customer requirements |
Key Advantages
- Cost-effective with attractive appearance
- High safety performance
- Easy assembly and dismantling
- ISO9001 certified manufacturing process
- Expert installation guidance available
- Environmentally friendly construction

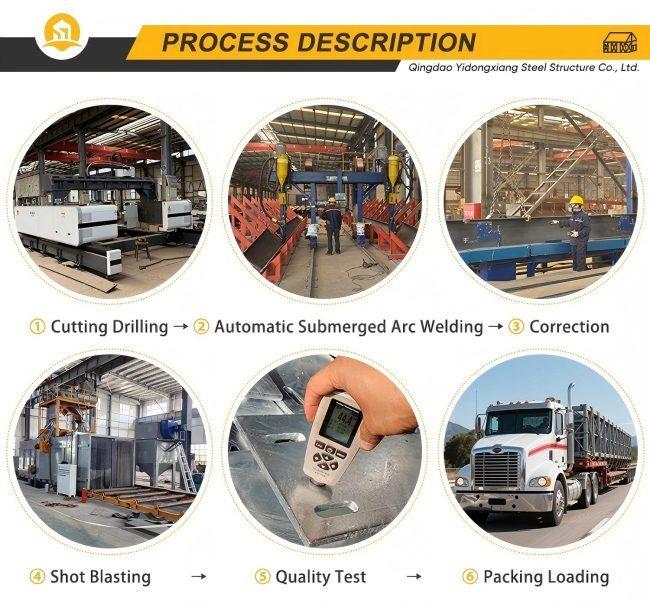

Manufacturing Capabilities

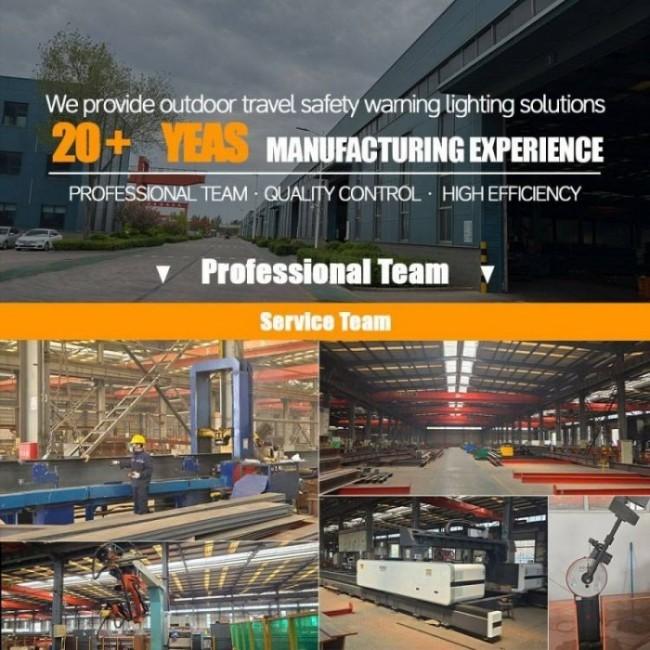

Our facility includes three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and advanced profiling equipment with plasma cutting technology.

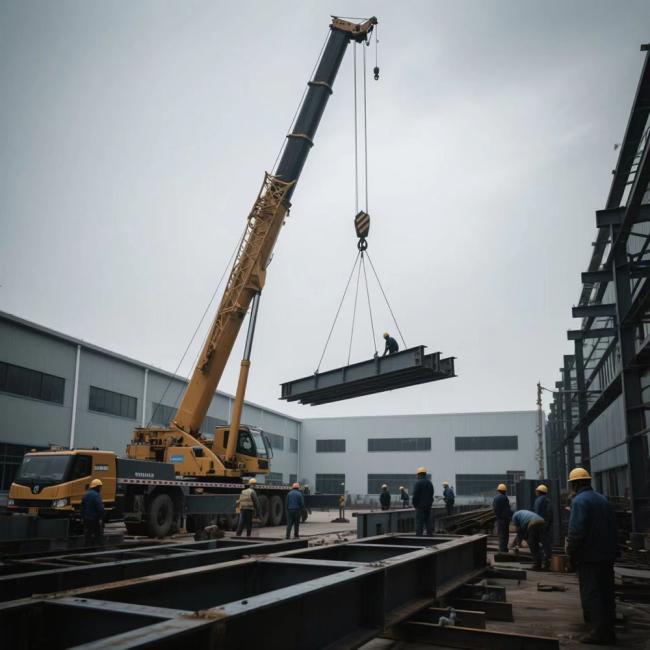

Installation Options
- Detailed shop drawings provided prior to installation
- On-site training available at our factory
- Sample assembly demonstration upon request
Project Planning Guide
| Parameter | Specification Required |
|---|---|
| Location | Country and area details |
| Dimensions | Length × Width × Height (mm) |
| Wind Load | Maximum wind speed (kn/m², km/h, m/s) |
| Snow Load | Maximum snow height (kn/m², mm) |
| Seismic Requirements | Earthquake resistance level |
| Thermal Insulation | Material preference (EPS, fiberglass, rockwool, PU) |
| Door/Window Requirements | Quantity and dimensions |
| Crane Specifications | If required: quantity, max lifting weight and height |
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
