Flexible Steel Metal Farm Buildings Prefabricated Steel Structure Warehouse
Steel structure buildings are composed of various steel members including H-section steel columns, H-section steel beams, C/Z-section purlins, bracing, and cladding, forming the building's load-bearing structure. These structures are increasingly popular due to their lightweight properties, easy transportation, and rapid construction, making them a cost-efficient solution for industrial and commercial applications.
We provide customized solutions including accurate budgets, construction plans, and detailed drawings tailored to your specific requirements. All components are factory-fabricated and assembled on-site using bolts and self-tapping screws.
- Main Frame: Steel beams, columns, and trusses
- Secondary Supporting Frame: Purlins, tie bars, and bracing for wall and roof support
- Cladding System: Steel sheets (0.3mm-0.7mm) or sandwich panels with various insulation cores (EPS, fiberglass wool, rock wool, PU)
| System | Component | Specification |
|---|---|---|
| Main Steel Frame | Steel Column & Beam | 1. Material: Q345B (S355JR) or Q235B(S235JR)/Welded/Hot Rolled H section steel 2. Surface: Hot Dip Galvanized or Painted 3. Connection: All Bolts Connection |
| Supporting System | Roof Purlin | C or Z Section Steel, Q235B |
| Supporting System | Wall Purlin | C or Z Section Steel, Q235B |
| Roof & Wall System | Cladding | 1. Single Colorful Corrugated Steel Sheet (0.3-0.8mm) 2. Sandwich Panel with EPS, Rock Wool, Fiberglass, PU (50-150mm) |
- Mass production benefits with prefabricated components
- Future structural strengthening capability extends building lifespan
- Rapid construction reduces project timelines and costs
- Excellent strength-to-weight ratio for efficient load-bearing
- Predictable material properties for accurate stress calculations
We offer fully customized solutions. Please provide your drawings for immediate quotation. If you don't have drawings, we can design based on your requirements. Please provide:
- Project status and intended usage
- Location and local climate conditions
- Building dimensions and special requirements
- Cladding, window, and door specifications
- Professional design team with CAD, TEKLA, and BIM capabilities
- Advanced fabrication equipment and skilled workforce
- End-to-end project management
- Rigorous quality control processes
- Comprehensive after-sales support
We provide detailed construction drawings and on-site engineering guidance to ensure proper assembly.
| Item | Description | Details |
|---|---|---|
| 1 | Location | _____country, area |
| 2 | Size | _____mm*_____mm*_____mm |
| 3 | Wind load | _____kn/m2, _____km/h, _____m/s |
| 4 | Snow load | _____kn/m2, _____mm |
| 5 | Earthquake resistance | _____level |
Why us?
1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.

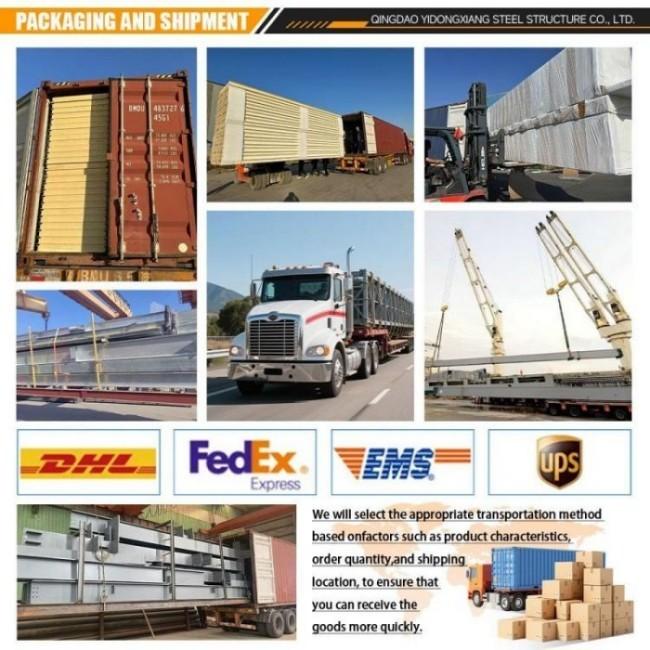

Packing & Loading:
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
