Galvanized Prefab Steel Hangar Buildings Q235B Q345B Steel Construction Warehouse
Price:
$30.00-$65.00
MOQ:
10-10000 square meters
Delivery Time:
20-30 works days
Brand:
YDX
Product Description
Galvanized Prefab Steel Hangar Buildings Q235B Q345B Steel Construction Warehouse
Material Specifications
| Component | Specification |
|---|---|
| Main Steel Frame (Column) | Q235, Q355 Welded H Section Steel |
| Main Steel Frame (Beam) | Q235, Q355 Welded H Section Steel |
| Secondary Frame (Purlin) | Q235 C and Z purlin |
| Knee Bracing | Q235 Angle Steel |
| Tie Bar | Q235 Circular Steel Pipe |
| Bracing | Q235 Round Bar |
| Column and Horizontal Bracing | Q235 Angle Steel, Round Bar or Steel Pipe |
| Roof Panel | EPS Sandwich Panel / Fiber Glass Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet |
| Windows | Aluminium Alloy Window / PVC Window |
| Doors | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Downspout | PVC |
| Structure Usage | Up to 50 years |
| Finishing Options | Vast array of colors and textures available |
| Paint Options | Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized |
Prefabricated Steel Structure Overview
Steel structures are building structures primarily made of steel, constructed through methods such as welding and bolting. They are widely used in industrial plants, warehouses, hangars, and other commercial buildings.
Key Characteristics
- High Strength: Superior load-bearing capacity suitable for large-span structures
- Lightweight: Reduced foundation loads compared to concrete structures
- Fast Construction: Factory-prefabricated components enable quick on-site assembly
- Eco-Friendly: Fully recyclable materials minimize construction waste
- Sealing Properties: Excellent air and water tightness for optimal protection
Technical Specifications
| Item | Specification |
|---|---|
| Model | Single slope, double slope, multi slope. Single span, double-span, Multi-span. Single floors, Double floors |
| Main Steel Grade | Q235B, Q345B |
| Column & Beam | Welded or Hot rolled H-section steel, constant or variable cross-section (H 160~2000*150~800*6/8/10*6/8/10/12mm) with two coats of primer and finish paint |
| Wall & Roof Panel | EPS, Fiber glass, Rockwool, PU sandwich panel (50/75/100mm), corrugated steel sheet (0.5~0.8mm) |
| Structural Components | Galvanized C/Z channel steel purlins, X/V type bracing, steel round pipes, angle steel tubes, and galvanized sag rods |
| Accessories | Galvanized/stainless steel gutters, UPVC downspouts, various door/window options, polycarbonate skylights, and ventilation systems |
Our Services
- Structural steel fabrication, painting, galvanizing, and pre-assembly
- Design, fabrication and installation of prefabricated steel structures
- Detailed fabrication drawings based on architectural plans
- Technical advice for usage, maintenance and improvements
Quality Control
- Raw material quality control: Thickness tolerance <0.25mm, yield and tension strength testing, third party inspection
- Fabrication quality control: 100% dimension testing, 20% ultrasonic and magnetic powder testing
- Surface treatment: SA 2.5 shot blasting, holiday-free coatings with DFT >75UM
- Pre-assembly testing of all connection details

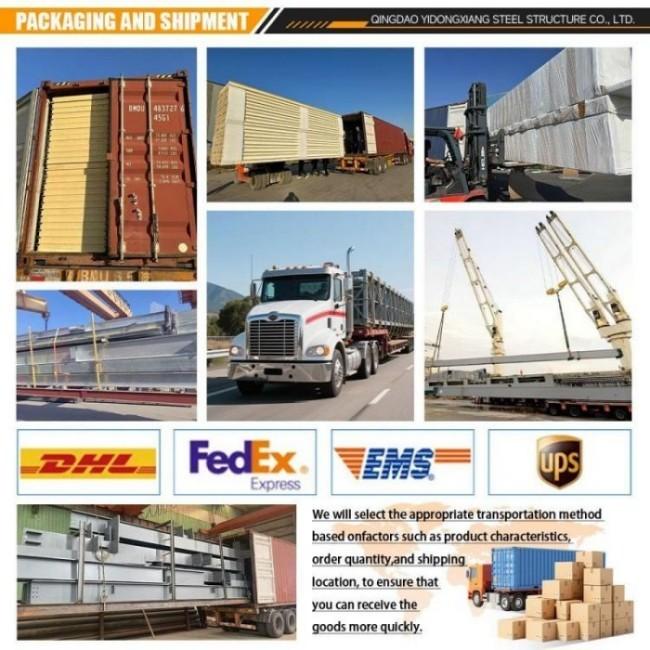

Packing & Loading
All structural components, panels, bolts, and accessories are packed in standard ocean transportation packages and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to ensure damage-free loading at our factory.
Project Requirements Form
| Item | Specification |
|---|---|
| 1. Location | _____country, area |
| 2. Size | _____mm*_____mm*_____mm |
| 3. Wind Load | _____kn/m², _____km/h, _____m/s |
| 4. Snow Load | _____kn/m², _____mm |
| 5. Earthquake Resistance | _____level |
| 6. Brick Wall | If yes, 1.2m high or 1.5m high |
| 7. Thermal Insulation | EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets |
| 8. Doors | _____units, _____(width)mm*_____(height)mm |
| 9. Windows | _____units, _____(width)mm*_____(height)mm |
| 10. Crane | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
Our Advantages
- Professional design team for custom solutions
- Skilled fabrication with advanced equipment
- Complete one-stop service for integrated projects
- Strict quality control throughout production
- Comprehensive after-sales support and maintenance
