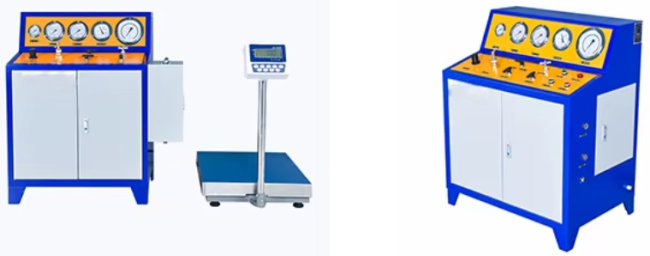

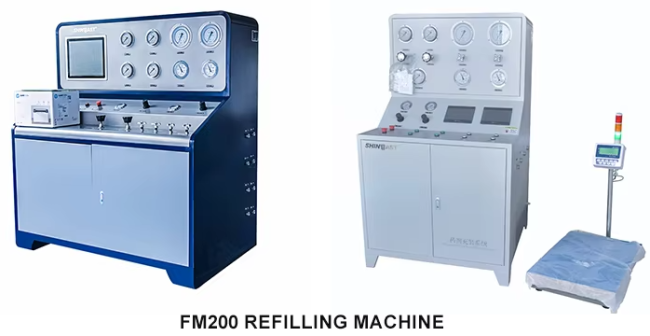

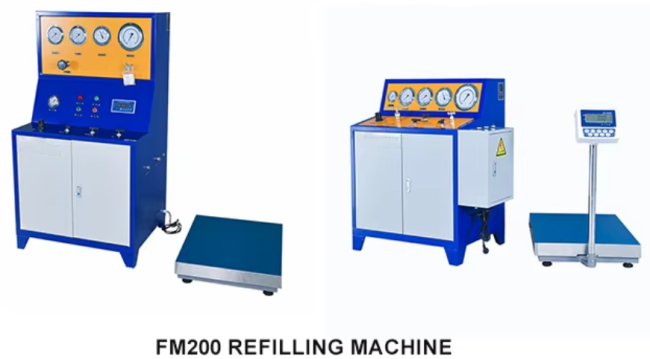

FM200 Pneumatic CO2 Filling Machine
HFC-227ea/FM200 Pneumatic Filling Machine
1. Product Overview
The GBS-RP04-06-ES filling system (including injection pump, precision pressure gauge, pressure reducing valve, high-pressure solenoid valve, electrical control part, etc.) and non-standard parts (weighing machine, vacuum pump).
2. Product Features
The filling equipment uses compressed air as the power source to drive the filling and conveying of HFC-227ea/FM200. When the transmission weight reaches a certain value, the sensor signal is transmitted to the gas solenoid valve, the gas supply is closed, and the pump stops working.
Then connect the nitrogen source, open the high-pressure nitrogen valve to inject nitrogen; when the precision pressure gauge shows the required nitrogen pressure, close the nitrogen valve; filling is completed. It has the characteristics of small volume, light weight, simple operation and reliable performance. It is especially suitable for the filling of heptafluoropropane in the fire protection industry.
3. Main Technical Data
| Item | Parameter |
| Product Name | FM200 Pneumatic Inflator |
| Specification | GBS-RP04-06-ES |
| Type | Pressure Calibrator |
| Nitrogen Output Pressure | 0-100 Bar (Adjustable) |
| Nitrogen Source Pressure | <15Mpa |
| Filling Medium | FM200, Nitrogen |
| Filling Weight | 0-500 Kg |
| Accuracy | 0.01 |
| Customizable | OEM, ODM, OBM |
| Power | 220v 50Hz |
| Protection Class | IP55 |
| Voltage | 220 V |
| Warranty Period | 12 Months |
| Fuel | FM200, HFC-227ea, Compressed Air |
| Certificates | ISO 9001, CE |
| Filler | Wooden Packaging |
| Power Supply | Hydraulic |

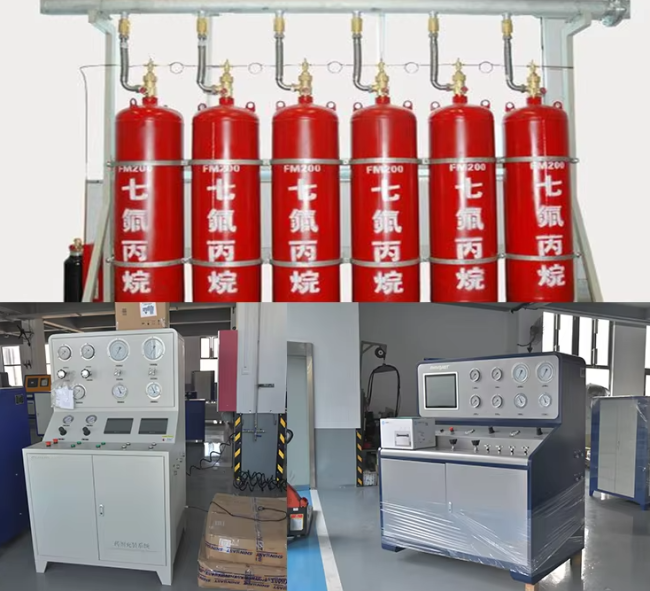

| Application | Inflating FM200/ HFC-227ea Cylinders |
| Structure | Piston Pump |
