Hot Rolled Galvanized Steel Profile 50mm * 150mm Steel C Channel Beam Q235
Price:
Negotiable
MOQ:
5t
Delivery Time:
8-14 days
Brand:
Juyiheng
Product Description
Sizes 50 Mm *150mm *Ga14 Ss 400 75*40 Hot Rolled Q235 Steel Profiles Price High Quality Steel U Channel C Beam
Channel steel is divided into ordinary channel steel and light channel steel. The specification of hot-rolled ordinary channel steel is 5-40#. The specifications of hot-rolled flexible channel steel supplied by agreement between the supply and demand parties are 6.5-30#. Channel steel is mainly used in building structures, vehicle manufacturing, other industrial structures and fixed panels, etc. Channel steel is often used in conjunction with I-beam. Channel steel can be divided into 4 types according to the shape: cold-formed equal-side channel steel, cold-formed unequal-side channel steel, cold-formed inner-coiled channel steel, cold-formed outer-coiled channel. According to the theory of steel structure, the channel steel wing plate should be stressed, which means that the channel steel should stand upright, not lying down.
Products Description
|
Product name
|
Channel steel
|
|
Shape
|
U/C Channel
|
|
Length
|
6m-12m, by customer's requiremnts
|
|
Thickness
|
2.5mm
|
|
Standard
|
AiSi, ASTM, bs, DIN, GB, JIS, GB/EN/ASTM/JIS
|
|
Place of Origin
|
Shandong, China
|
|
Application
|
Supporting System
|
|
Tolerance
|
±1%
|
|
Surface treatment
|
Black, galvanized,perforated
|
|
Technique
|
Hot Rolled Steel Channel
|
|
Delivery time
|
7-15 Days
|
|
General sizes of channel steel
|
|
|
||
|
SPECIFICATION
|
SIZE
|
KG/M
|
||
|
5#
|
50*37*4.5
|
5.438
|
||
|
6.3#
|
63*40*4.8
|
6.634
|
||
|
8#
|
80*43*5.0
|
8.045
|
||
|
10#
|
100*48*5.3
|
10.007
|
||
|
12#
|
120*53*5.5
|
12.059
|
||
|
14#A
|
140*58*6.0
|
14.535
|
||
|
14#B
|
140*60*8.0
|
16.733
|
||
|
16#A
|
160*63*6.5
|
17.24
|
||
|
16#B
|
160*65*8.5
|
19.752
|
||
|
18#A
|
180*68*7.0
|
20.174
|
||
|
18#B
|
180*70*9.0
|
23
|
||
|
20#A
|
200*73*7.0
|
22.337
|
||
|
20#B
|
200*75*9.0
|
25.777
|
||
|
22#A
|
220*77*7.0
|
24.999
|
||
|
22#B
|
220*79*9.0
|
28.453
|
||
|
25#A
|
250*78*7.0
|
27.41
|
||
|
25#B
|
250*80*9.0
|
31.335
|
||
|
25#C
|
250*82*11.0
|
35.26
|
||
|
28#A
|
280*82*7.5
|
31.427
|
||
|
28#B
|
280*84*9.5
|
35.823
|
||
|
28#C
|
280*86*11.5
|
40.219
|
||
|
30#A
|
300*85*7.5
|
34.463
|
||
|
30#B
|
300*87*9.5
|
39.173
|
||
|
30#C
|
300*89*11.5
|
43.883
|
||
|
32#A
|
320*88*8.0
|
38.083
|
||
|
32#B
|
320*90*10.0
|
43.107
|
||
|
32#C
|
320*92*12.0
|
48.131
|
||
|
36#A
|
360*96*9.0
|
47.814
|
||
|
36#B
|
360*98*11.0
|
53.466
|
||
|
36#C
|
360*100*13.0
|
59.118
|
||
|
40#A
|
400*100*10.5
|
58.928
|
||
|
40#B
|
400*102*12.5
|
65.204
|
||
|
40#C
|
400*104*14.5
|
71.488
|
||
Channel steel is divided into ordinary channel steel and light channel steel. The specification of hot-rolled ordinary channel steel is 5-40#. The specifications of hot-rolled flexible channel steel supplied by agreement between the supply and demand parties are 6.5-30#. Channel steel is mainly used in building structures, vehicle manufacturing, other industrial structures and fixed panels, etc. Channel steel is often used in conjunction with I-beam. Channel steel can be divided into 4 types according to the shape: cold-formed equal-side channel steel, cold-formed unequal-side channel steel, cold-formed inner-coiled channel steel, cold-formed outer-coiled channel. According to the theory of steel structure, the channel steel wing plate should be stressed, which means that the channel steel should stand upright, not lying down.

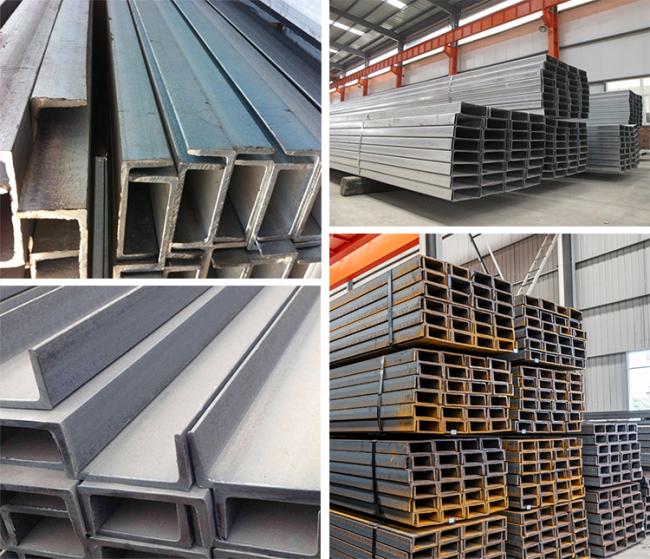

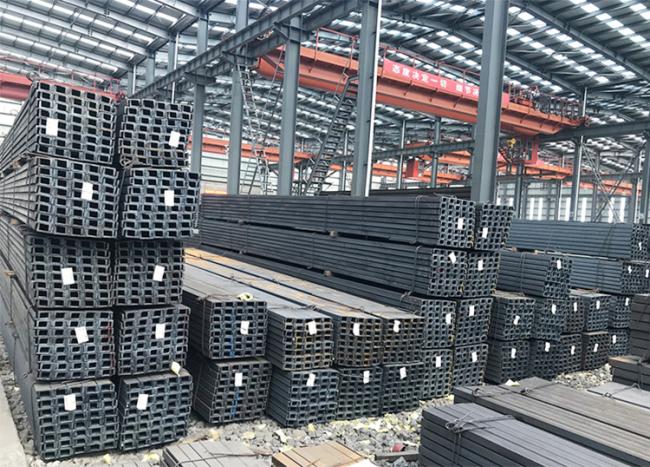

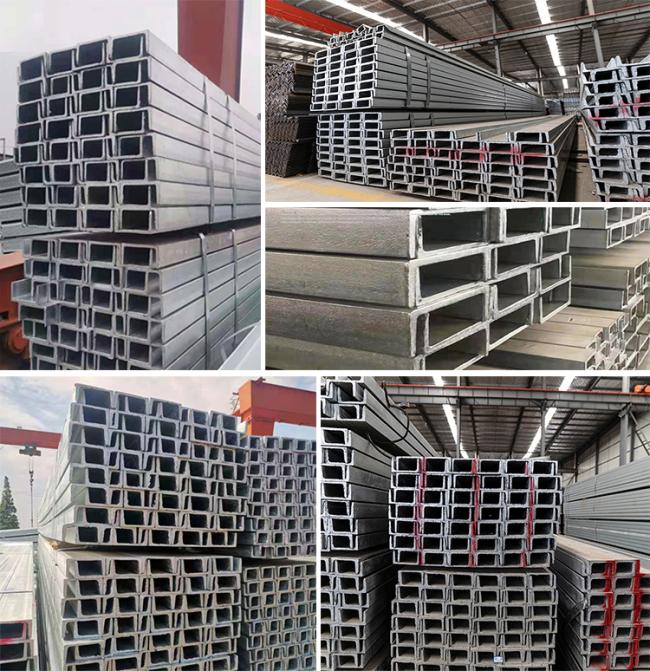

Our Factory Stock
Quality control
Packing & Delivery
Why Choose Us
Shandong Juyiheng New Materials Co.,Ltd , covers an area of 200,000 square meters, with more than 500 employees, is a company specializing in the building materials industry. The company is an agent of Shandong Iron and Steel, Laiwu Iron and Steel, Handan Iron and Steel, Anshan Iron and Steel, Rizhao Iron and Steel, Puyang and other steel mills, and has a first-hand source of goods. Our company mainly engaged in producing and exporting Galvanized Coil/Sheet, Galvalume Coil/Sheet, Aluzinc Coil/Sheet, Prepainted Galvanized Coil/Sheet, Corrugated Sheets, Copper Tube and Copper Bar, Aluminum Coil and Aluminum Bar and Magnesium Oxide Board. Meanwhile, group company imported the most advanced technology from Germany, Japan, Belgium and America, UK etc. For iron-smelting, and processing steel sheet, also equipping with the complete automatic system, become the advanced and biggest professional manufacturer in China . Currently the Group holds the Tubes Mill and production lines of galvanized, galvalume, aluzinc and prepainted steel, with the annual production capacity of 2 million tons.
Customer visiting
FAQ
1. Who are we?
We are based in Shandong, China, start from 2021,sell to North America(12.00%),Central America(12.00%),South Asia(12.00%),South
America(10.00%),Southeast Asia(10.00%),Africa(10.00%),Eastern Asia(10.00%),Mid East(8.00%),Domestic Market(5.00%),Western
Europe(3.00%),Eastern Europe(2.00%),Oceania(2.00%),Northern Europe(2.00%),Southern Europe(2.00%).
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Alu-Zinc Steel Product,Carbon Steel Pipe,Galvanized Steel Product,PPGI Roofing Sheet,Stainless Steel Product
4. Why should you buy from us not from other suppliers?
Juyiheng steel is belong to lenser group,With 21 years' export experiences, with 300,000 tons steel stock.mainly engaged in : PPGI
,galvanized steel , steel plate , round bar, steel pipe ,Stainless steel product ,angle bar, steel pile ,H beam ,I beam etc
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2021,sell to North America(12.00%),Central America(12.00%),South Asia(12.00%),South
America(10.00%),Southeast Asia(10.00%),Africa(10.00%),Eastern Asia(10.00%),Mid East(8.00%),Domestic Market(5.00%),Western
Europe(3.00%),Eastern Europe(2.00%),Oceania(2.00%),Northern Europe(2.00%),Southern Europe(2.00%).
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Alu-Zinc Steel Product,Carbon Steel Pipe,Galvanized Steel Product,PPGI Roofing Sheet,Stainless Steel Product
4. Why should you buy from us not from other suppliers?
Juyiheng steel is belong to lenser group,With 21 years' export experiences, with 300,000 tons steel stock.mainly engaged in : PPGI
,galvanized steel , steel plate , round bar, steel pipe ,Stainless steel product ,angle bar, steel pile ,H beam ,I beam etc
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
