General Information

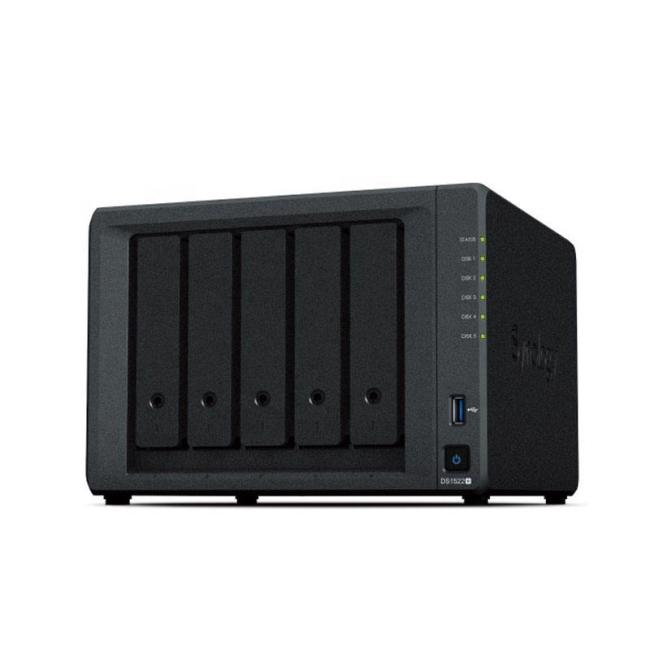

• Product Model: DS1522+
• Product Type: Network Attached Storage, NAS for Home and Office, SOHO Network Storage2.

Hardware Specifications

• Processor: AMD Ryzen R1600, Dual-core, 2.6 - 3.1GHz2.
• Memory: 8GB DDR4 ECC (Expandable up to 32GB)2.
• Disk Bays: 5 x 3.5"/2.5" SATA HDD/SSD drive bays2.
• Maximum Internal Net Total Storage Capacity: Varies depending on the drive capacity and RAID configuration. With 5 x 16TB drives, it can reach 80TB. With 15 drives (using 2 DX517 expansion units), it can reach up to 240TB.
• Maximum Single Storage Space Capacity: 108TB.
• SSD Cache: 2 x M.2 2280 NVMe SSD cache slots.
• Network Interface: 4 x RJ-45 1GbE ports with link aggregation and failover support. There is also a dedicated expansion interface for 10GbE network upgrade module (E10G22-T1-MINI).
• USB Interface: 2 x USB 3.0/3.1/3.2 Gen 1 ports2.
• eSATA Interface: 2 x eSATA ports2.

System Specifications

• Pre-installed Software System: Synology DiskStation Manager (DSM), supports file systems such as BTRFS, EXT4 for internal disks, and BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT for external disks.
• Cooling System: 2 x 92mm fans.

Physical Characteristics

• Product Dimensions: 9.17 x 9.06 x 6.54 inches / 232.92 x 230.12 x 166.12 mm.
• Product Weight: 5.9 lb / 2.7 kg2.

Power Specifications

• AC Input Voltage: 100 - 240V AC, 50/60Hz.
• Power Supply/Transformer: 120W PSU2.
• Power Consumption: 52.06W (Typical), 16.71W (Idle).

Environmental Parameters

• Operating Temperature: 32 - 104°F / 0 - 40°C.
• Storage Temperature: -5 - 140°F / -20 - 60°C.
• Relative Humidity: 5% - 95%.

Safety Certification

• FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC.

Other Features

• Noise Level: 22.9 dBA.
• Supported Clients: Windows, macOS, Linux, Android, iOS.
• Supported Browsers: Chrome, Edge, Firefox, Safari.
• Supported Languages: Brazilian Portuguese, Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish.
• Warranty: Usually comes with a standard warranty. Check with the manufacturer or retailer for specific details.
