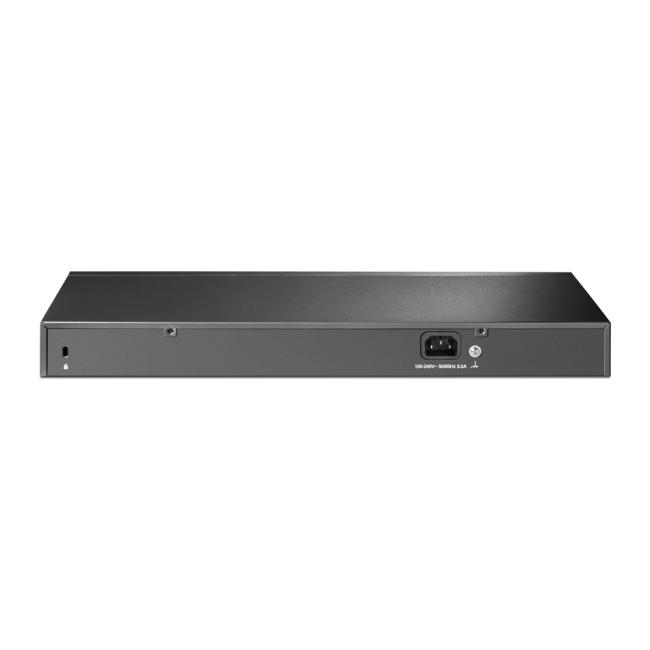

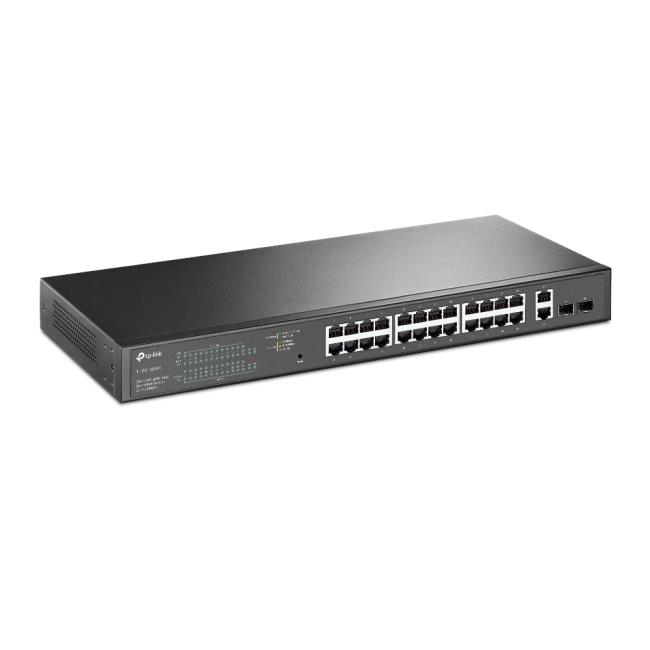

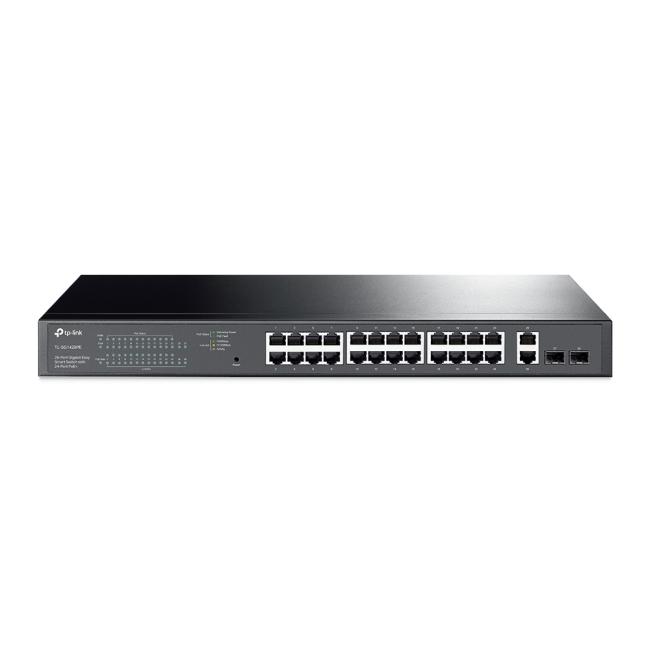

TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ and 250W PoE Budget
Price:
$475
MOQ:
2
Delivery Time:
Negotiable
Brand:
TL
Product Description
Products Description

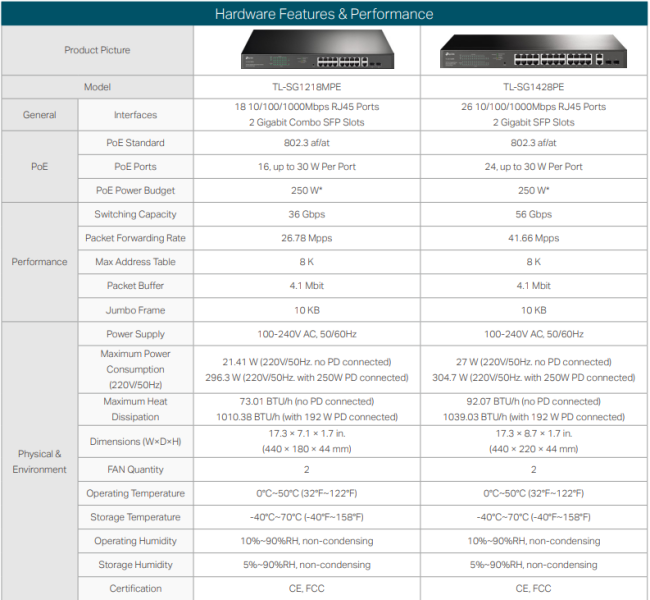

Product Paramenters
TL-SG1428PE

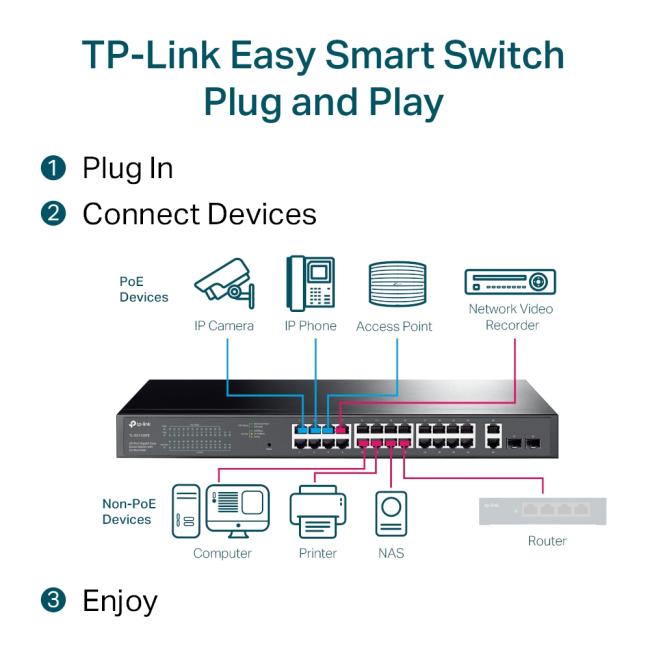

28-Port Gigabit Easy Smart Switch with 24-Port PoE+
* 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots

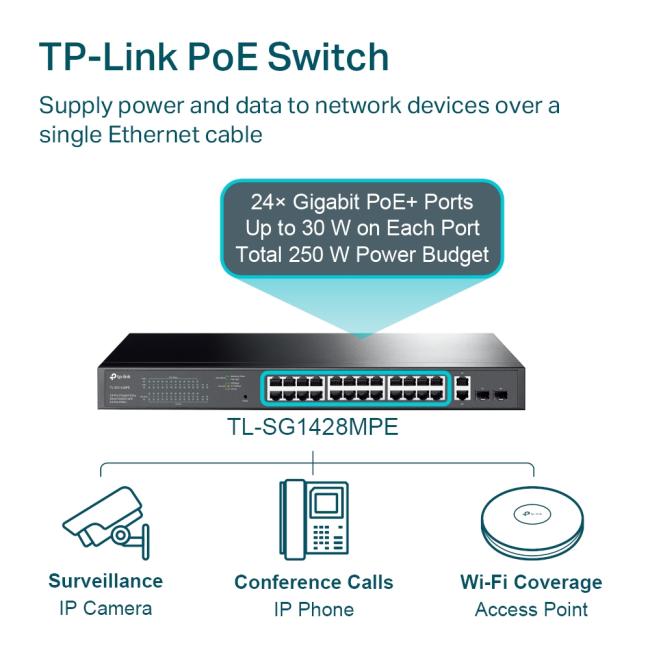

* PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
* Priority Mode helps to guarantee the quality of sensitive application like video monitoring
* PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices

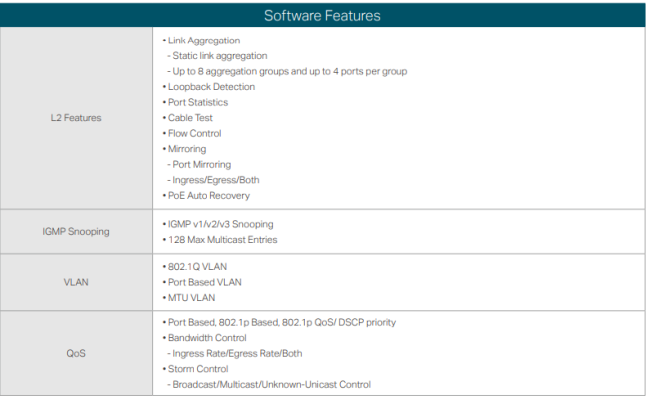

* QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
* Intelligent power management can protect the switch from overload
28-Port Gigabit Easy Smart Switch with 24-Port PoE+
* 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
* PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
* Priority Mode helps to guarantee the quality of sensitive application like video monitoring
* PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
* QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
* Intelligent power management can protect the switch from overload

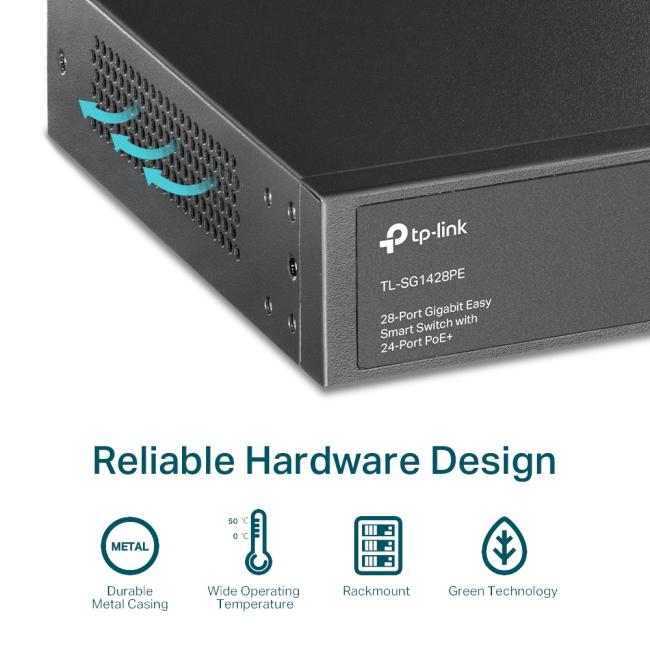

Shell | Metal material, fan-free design |
Net Weight | 0.6 kg (1.32 lb) |
Gross Weight | 1.4 kg (3.09 lb) |
Dimensions (W × H × D) | 217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'') |
Operating Temperature | 0 °C to 50 °C |
Storage Temperature | -40 °C to 70 °C |
Operating Humidity | 10% to 90% (no condensation) |
Storage Humidity | 5% to 90% (no condensation) |
Power Supply | 48 VDC, 2.5 A |
Max. Power Consumption | 120W |
Power Consumption in Idle | 10W |
Installation Mode | Desk-Mounted,Wall-Mounted; |
Surge Protection | 6 KV |
Ports | 24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port |
MAC Address Table | 4K |
Switching Capacity | 56 Gbps |
Packet Forwarding Rate | 14.88 Mpps |
Internal Cache | 1.5 Mbits |
PoE Standard | IEEE 802.3af,IEEE 802.3at |
PoE Power Pin | End-span: 1/2(+), 3/6(-) |
PoE Port | PoE: Ports 1 to 24 |
Max. Port Power | 30W |
PoE Power Budget | 110W |
EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
Chemistry | CE-RoHS (2011/65/EU) |
