Factory Integrated 12 Bay Unified Controller UC3200 (Diskless)

Price Negotiable

Price: $6,360-6,430

MOQ: 2

Delivery Time: Negotiable

Product Description

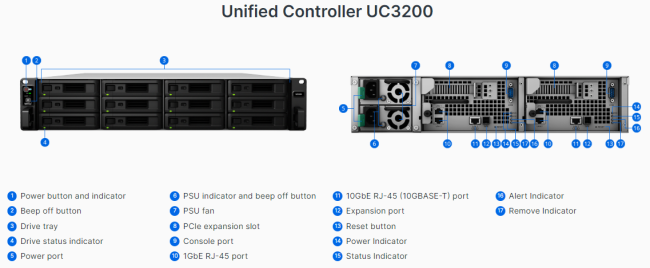

Factory Integrated Synology 12 bay Unified Controller UC3200 (Diskless)

Hardware Specifications
Controller	Number of Controller Module	2
CPU	CPU Model	Intel Xeon D-1521
	CPU Quantity	1 (per controller)
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	2.4 (base) / 2.7 (turbo) GHz
Memory	System Memory	8 GB DDR4 ECC UDIMM (per controller)
	Memory Module Pre-installed	8 GB (8 GB x 1) (per controller)
	Total Memory Slots	4 (per controller)
	Maximum Memory Capacity	64 GB (16 GB x 4) (per controller)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	36 (RXD1219sas x 2)
	Compatible Drive Type* (See all supported drives)	2.5” dual-port SAS SSD 2.5” dual-port SAS HDD 3.5” dual-port SAS HDD
External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support) (per controller)
	RJ-45 10GbE LAN Port	1 (per controller)
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x8 link) (per controller)
	Add-In-Card Support	10GbE NIC 25GbE NIC FC HBA
File System	Internal Drives	Btrfs
Appearance	Size (Height x Width x Depth)	88 mm x 430.5 mm x 692 mm
	Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
	Weight	19.7 kg
	Rack Installation Support*	4-post 19" rack (Synology Rail Kit - RKS-02)
	Notes	The rail kit is sold separately
Others	System Fan	60 mm x 60 mm x 2 (per controller)
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Noise Level*	51.3 dB(A)
	Power Supply Unit / Adapter	500W
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60Hz, Single Phase
	Power Consumption	417.48 W (Access)
	British Thermal Unit	1425.45 BTU/hr (Access)
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC UDIMM: D4EC-2666-8G/D4EC-2666-16G Expansion Units: RXD1219sas Enterprise Series 3.5" SAS HDD: HAS5300 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G21-F2/E10G30-T2/E10G18-T1 Rail Kit Sliding: RKS-02
