Agricultural Equipmen Rocker Switch IP67 Illuminated Button Switch Waterproof
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
YESWITCH
Product Description
X7 Series IP67 Waterproof Illumination Rocker Switch
A safe and reliable high current rocker switch - X7 series. It has a high current of 25A, which can meet the needs of various electrical appliances.
First of all, the X7 high-current rocker switch has the dustproof and waterproof function of IP67 level, which can effectively prevent water droplets, dust and other debris from entering the inside of the switch to ensure the normal use and safety performance of the switch. Secondly, it also has the momentary and self-lock function, which means that the switch can be automatically reset to the initial position, avoiding the cumbersome and unsafe factors of manual operation. In addition, the X7 high-current rocker switch can also select single pole or double pole functions according to needs, such as ON-OFF, ON-ON,ON-OFF-ON, (ON)-OFF-ON, etc., to facilitate users to carry out different control needs.
Most importantly, the X7 high-current rocker switch also has an led indicator, which allows users to clearly know the working status of the appliance, avoiding safety hazards caused by uncertainty. These advantages make the X7 rocker switch widely used in boats,construction equipment,agricultural equipment,recreational vehicle,landscaping equipment and industrial equipment.It's a very practical switch products.
Feature
16(8)A 125/250V~T55, T125/55 (cURus)
20(8)A 125/250V~T55, T125/55 (cURus)
25(8)A 125/250V~T55 (cURus)
16A 6~48VDC T55, 40T125/55 (cURus)
20A 6~36VDC T55, 40T125/55 (cURus)
Dielectric strength : 1,500VAC for 1 min.
Insulation resistance : 100M ohm MIN. at 500VDC
Initial contact resistance : 20m ohm MAX
Electrical life : 10,000 cycles
ON-OFF-ON, ON-ON, ON-OFF or other momentary functions available
Two LEDs for custom color selection
quick connecting terminals
Plastic housing and actuator
Suitable for outdoor application
Sealed to protection level IP67 ( passing MIRDC's TAF laboratory test )
How to order
Panel cutout
Item

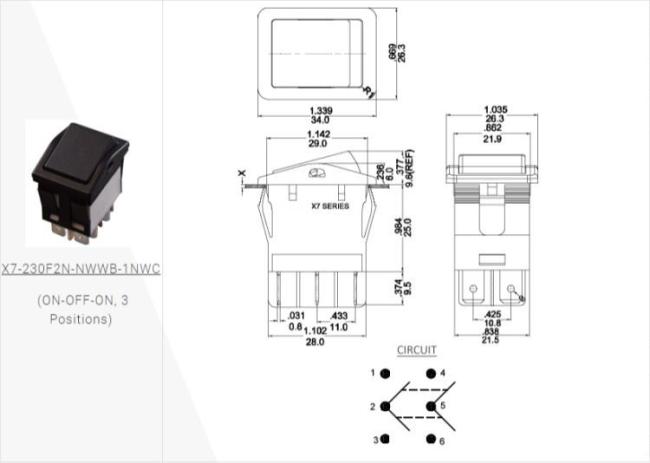

![Yeswitch X7 IP67 Illumination Rocker Switch]()
![Yeswitch X7 IP67 Illumination Rocker Switch]()
![Yeswitch X7 IP67 Illumination Rocker Switch]()
![Yeswitch X7 IP67 Illumination Rocker Switch]()
