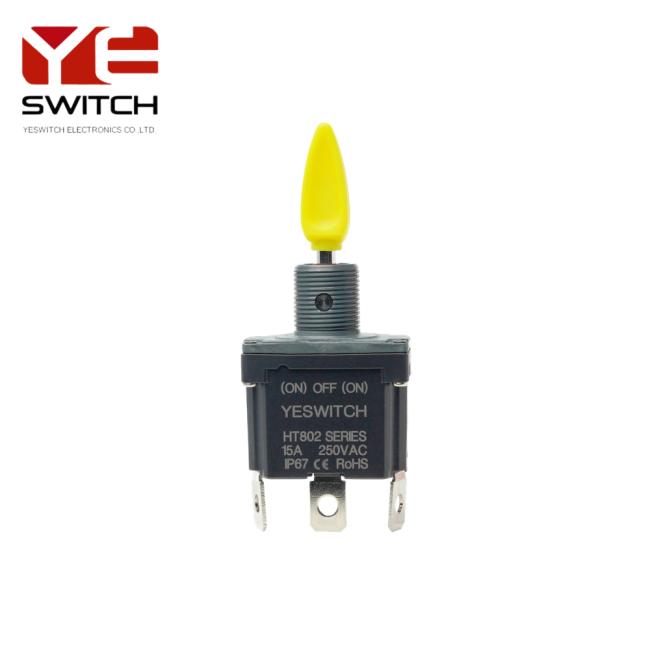

Three Positions (on)-off-(on) Industrial Toggle Switch With Flat Pc Terminal

Product Overview

This industrial-grade three-position toggle switch features a versatile (ON)-OFF-(ON) configuration designed for precision control in demanding applications. The switch incorporates flat PC terminals for secure printed circuit board mounting, making it ideal for space-constrained industrial environments. Built with a durable metal toggle and high-strength thermoplastic housing, it delivers reliable performance through 10,000 mechanical cycles while maintaining consistent electrical characteristics.

Applications & Installation

Perfect for industrial control systems requiring bidirectional control, including:

Motor direction control (forward/stop/reverse)

Power supply selection circuits

Equipment mode switching applications

Test and measurement instrumentation

The flat PC terminal design enables:

Space-efficient PCB layout optimization

Wave soldering compatibility

Vibration-resistant connections

Easy visual inspection of solder joints

Additional features include:

Clear position indicators for visual status confirmation

Panel mount capability with 20mm cutout

Optional illuminated versions available

CE and RoHS compliance

This switch combines precise mechanical operation with reliable electrical performance, making it suitable for industrial automation, machinery controls, and professional equipment where space optimization and reliable switching are critical requirements. The three-position design provides flexible control options while the flat PC terminals ensure secure mounting in vibration-prone environments.

FAQ

Q1: When can I get the quotation ?

A: We are online all day, so you can get quotation within 24h.

Q2: When can I get the samples?

A: It depends on the express, generally 3-10 days.

Q3: Can you accept small order?

A: Yes, we will try our best to help you with your business.

Q4: What's the lead time of mass production?

A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
