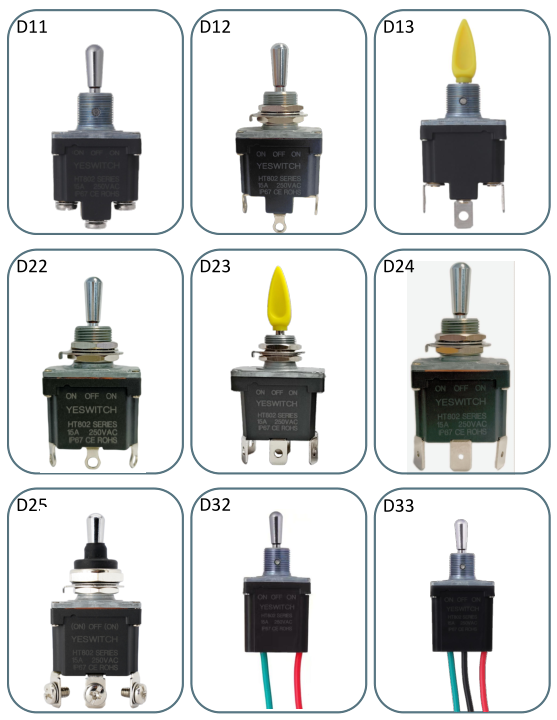

OFF-(ON) Anti-misoperation metal toggle switch Rubber terminal for Heavy-Duty Mechanical Industry

This industrial-grade momentary toggle switch features a fail-safe OFF-(ON) operation specifically designed to prevent accidental activation in heavy machinery applications. The all-metal construction combined with rubber-sealed terminals provides superior durability and environmental protection for demanding industrial environments.

Key feature

High-Current Capacity

High-Current Capacity With a high-current rating, it powers industrial machinery, control systems, and equipment needing heavy electrical loads. It stays safe and durable even when used non-stop.

Rubber Terminal With Wires

The base is carefully made from top materials, mixing advanced alloys and strong plastics for great durability. Tested to strict industrial rules, it handles extreme temperatures, corrosion, and harsh conditions without damage. Its smart design has reinforced parts and precise joints to take heavy impacts, vibrations, and mechanical stress.

IP68 Dust & Water Resistance

With IP68 rating, this toggle switch blocks all dust in sandstorms or construction sites and withstands 30-min immersion at 1.5m, handling rain, splashes, and accidental water submersion.

Environmental Resistance

It works reliably from -40°C to +85°C, handling Arctic cold, desert heat, and industrial temperature swings. This makes it great for outdoor gear in extreme weather, heat-resistant aerospace parts, and heavy machinery in changing climates.

Applications

Construction Machinery

Engineered for excavators, bulldozers, and cranes, it resists high vibrations and dust—operating stably on construction sites to ensure non-stop workflow.

Agricultural Machinery

Tailored for tractors and harvesters, its rugged design withstands outdoor humidity, extreme weather, and continuous loads in farming—meeting high-intensity field demands.

Material Handling Equipment

Ideal for forklifts and conveyor systems, it supports efficient load management in warehouses/logistics, optimizing cargo transfer while enhancing equipment durability.

Industrial Vehicles

Suited for utility trucks and loaders, it thrives in harsh factory, port, and mining environments—delivering reliable functionality for heavy transport and operations.

FAQ

Q1: When can I get the quotation ?

A: We are online all day, so you can get quotation within 24h.

Q2: When can I get the samples?

A: It depends on the express, generally 3-10 days.

Q3: Can you accept small order?

A: Yes, we will try our best to help you with your business.

Q4: What's the lead time of mass production?

A: Generally 3 weeks. We will inform you the delivery time after receiving your payment.

CONTACT RESISTANCE:20mΩ.(Max)                         INSULATION RESISTANCE:100MΩ MIN/100VDC

MECHANICAL LIFE CYCLE:100.000 CYCLES            OPERATING TEMPERATURE:-40 To +85℃

FRONT SEAL:IP68

RESISTIVE LOAD:15A 125/250VAC,15A 28VDC         INDUCTIVE LOAD:15A 28VDC

LEVER:STAINLESS STEEL                                          HOUSING:NYLON (UL94V-0)

TERMINAL:COPPER ALLOY                                        DIELECTRIC STRENGTH:1500VAC 1MINUTE

SALT SPRAY TEST:WITHSTANDS 96 TO 120 HOURS OR MORE
