SUN-D 12KW 48V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function
Price:
US $9.09-67.82
MOQ:
100pcs
Delivery Time:
20-60 work days
Brand:
Sunchonglic
Product Description

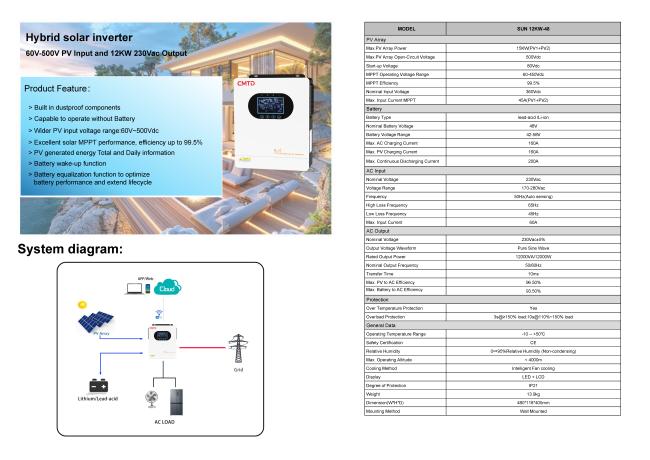

12KW 48V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS
This 48V DC to 220V AC hybrid inverter charger combines high-performance power conversion with robust UPS functionality to deliver a reliable energy solution.
Key Features
• Dustproof design for reliable operation in challenging environments.
• Battery-free operation supported for flexible system configuration.
• Wide PV compatibility with a 60V to 500V DC input range.
• Industry-leading MPPT efficiency of up to 99.5% for maximum energy harvest.
• Comprehensive energy monitoring of both total and daily PV yield.
• Intelligent battery management featuring wake-up and equalization functions to enhance performance and lifespan.
Technical Specifications
| Model | SUN-D 12KW-48 |
| PV Array | |
| Max.PV Array Power | 15KW(PV1+PV2) |
| Max.PV Array Open-Circuit Voltage | 500Vdc |
| Start-up Voltage | 80Vdc |
| MPPT Operating Voltage Range | 60-450Vdc |
| MPPT Efficiency | 99.5% |
| Nominal Input Voltage | 360Vdc |
| Max. Input Current MPPT | 45A(PV1+PV2) |
| Battery | |
| Battery Type | lead-acid /Li-ion |
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 42-58V |
| Max. AC Charging Current | 160A |
| Max. PV Charging Current | 160A |
| Max. Continuous Discharging Current | 200A |
| AC Input | |
| Nominal Voltage | 230Vac |
| Voltage Range | 170-280Vac |
| Frequency | 50Hz(Auto sensing) |
| High Loss Frequency | 65Hz |
| Low Loss Frequency | 45Hz |
| Max. Input Current | 60A |
| AC Output | |
| Nominal Voltage | 230Vac±5% |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Power | 12000VA/12000W |
| Nominal Output Frequency | 50/60Hz |
| Transfer Time | 10ms |
| Max. PV to AC Efficiency | 96.5% |
| Max. Battery to AC Efficiency | 93.5% |
| Protection | |
| Over Temperature Protection | Yes |
| Overload Protection | 3s@≥150% load; 10s@110%~150% load |
| General Data | |
| Operating Temperature Range | -10°C~ +50°C |
| Safety Certification | CE |
| Relative Humidity | 0<95%Relative Humidity (Non-condensing) |
| Max. Operating Altitude | < 4000m |
| Cooling Method | Intelligent Fan cooling |
| Display | LED + LCD |
| Degree of Protection | IP21 |
| Weight | 13.9kg |
| Dimension(WHD) | 480*118*405mm |
| Mounting Method | Wall Mounted |
Manufacturing Excellence
With over 20 years of expertise in solar photovoltaic technology, we operate a state-of-the-art manufacturing facility specializing in mission-critical components. Our product line includes efficient solar power inverters, dependable AGM/GEL lead-acid battery chargers, intelligent solar charge controllers, and complementary equipment. Sunchonglic products are synonymous with unwavering quality, designed and built to provide consistent, high-performance operation.
Production Process
Frequently Asked Questions
Are you the factory manufacturer?
We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.
How to select a suitable product?
Simply tell us your specific requirements, and we will recommend the most suitable solution for your needs.
What are your payment methods?
We accept T/T, Trade Assurance, and other secure payment options.
What price terms can you offer?
We can accommodate various price terms including EXW, FOB, CIF, and others based on your preferences.
Where is your main market?
Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.
Our products are widely recognized and trusted by clients worldwide and can meet continuously changing economic and social needs. We sincerely welcome new and existing customers from around the world to contact us for future business relationships and mutual success!
