Customized NT100X Removable Heat Exchanger Plate for GEA Multi Material

Price Negotiable

Price: $4.5

MOQ: 100PCs

Delivery Time: 5-7Days

Brand: GEA Series

Product Description

Our NT100X plate is a precision interchangeable spare part designed for GEA removable plate heat exchangers. It delivers stable heat transfer, strong corrosion resistance, and perfect fit for industrial heating, cooling, and heat recovery systems.

Key Product Features

100% interchangeable with original GEA NT100X units
Multi-material available: SS304, SS316L, Titanium, Ti-Pd, 254SMO, SS904L
High-precision stamping & forming, consistent dimension
128° herringbone design for high turbulence & high efficiency
Low pressure loss, long service life, easy cleaning & maintenance
Compatible with food, chemical, seawater, HVAC, oil & gas applications

Material Selection Guide

SS304: Clean water, light oil, general industry
SS316L: Weak corrosion, food & beverage, cooling systems
Titanium / Ti‑Pd: Seawater, brine, high chloride environment
254SMO / SS904L: Strong corrosion, chemical, acid, harsh working conditions

Technical Parameters (NT100X)

Model: NT100X
Plate angle: 128°
Port size: φ110
Plate size: 1519×262 mm
Overall size: 1709×445 mm
Heat transfer area: 0.63 m² per plate
Thickness: 0.5–1.0 mm optional
Design pressure: up to 2.0 MPa

Applications

HVAC & district heating
Food & beverage: milk, beer, juice, pasteurization
Chemical process, oil cooling
Seawater desalination, salt water treatment
Industrial waste heat recovery

Why Choose Us

Perfect Interchange: Match original GEA dimensions, no installation issues
Full Material Range: Cover all common and high-corrosion working conditions
Strict Quality Control: ISO certified, pressure test, dimension inspection
Fast Delivery: Ready molds, short lead time for samples and bulk
Global Service: Export worldwide, technical support for selection & installation
Cost-Effective: High quality at competitive price, lower your maintenance cost

FAQ

1. Is this NT100X plate compatible with my GEA heat exchanger?

Yes, it is fully interchangeable with original GEA NT100X plates, same dimensions and performance.

2. What materials can I choose?

We supply SS304, SS316L, Titanium, Ti-Pd, 254SMO, SS904L to match different corrosive media.

3. What thickness do you offer?

Standard 0.5/0.6/0.7/0.8/1.0 mm, customizable on request.

4. What is your MOQ and lead time?

MOQ: 1 piece; sample orders welcome. Bulk lead time: 7–15 working days.

5. Do you provide gaskets for NT100X?

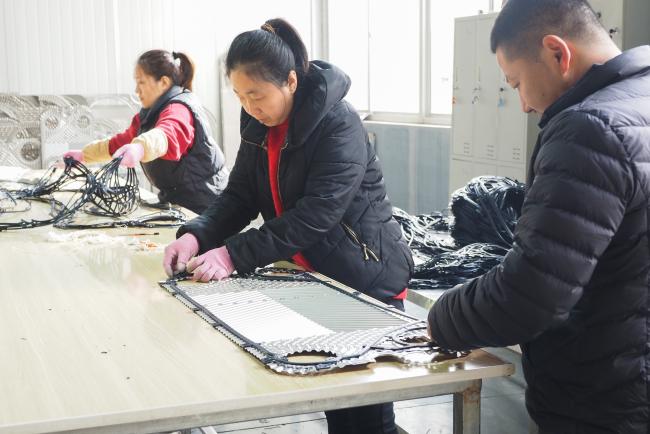

Yes, we supply matching NBR, EPDM, HNBR, Viton gaskets for NT100X.

6. Can you customize logo or package?
