Commercial And Industrial Energy Storage Cabinet 50-200kwh Liquid Cooled
Price:
Negotiable
MOQ:
1pc
Delivery Time:
Negotiable
Brand:
kimoems or OEM
Product Description

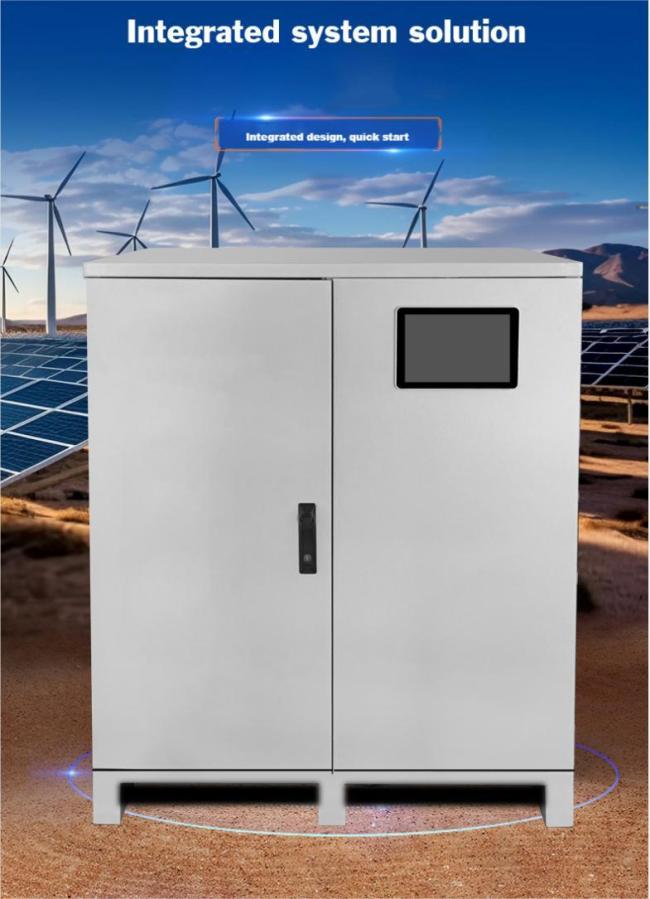

Liquid-cooled Small Industrial And Commercial Energy Storage Cabinet 50-200kwh
Parameters
| Product Model | KM108KWH-ESS |
| Battery Model | 384V300AH |
| Battery Energy | 100KWH/200KWH |
| Voltage Range | 300 ~ 438V |
| Cycle Life | 6000 (100% charge and discharge, attenuation to 80%) |
| Cell Type | CATL/EVE/BYD (prismatic cell) |
| Module Size | 620*480*230mm |
| Charging and Switching Time | <20ms |
| Environment Temperature | 5~95% relative humidity |
| Battery Withstand Voltage | 0.044mA |
| Maximum Electricity Capacity | 200kwh |
| Maximum Discharge Capacity | 180kwh |
| Battery Capacity | 300AH |
| Discharge Power | 100kw |
| Overcharge Protection | 3.65V |
| Over-discharge Protection | 2.800V |
| System Maximum Efficiency | >90% |
| Discharge Maximum Efficiency | >95% |
| Operating Temperature | Charging: 0°C~55°C / Discharging: -20°C~60°C / Storage: -10°C |
| Size (LengthWidthHeight) | 1100*1100*1300mm |
| Weight | 203kg |
| Indicator Light | Alarm/Operation/SOC |
| Battery Room Cooling Concept | Air-cooled |
| Protection Level | IP65 |
