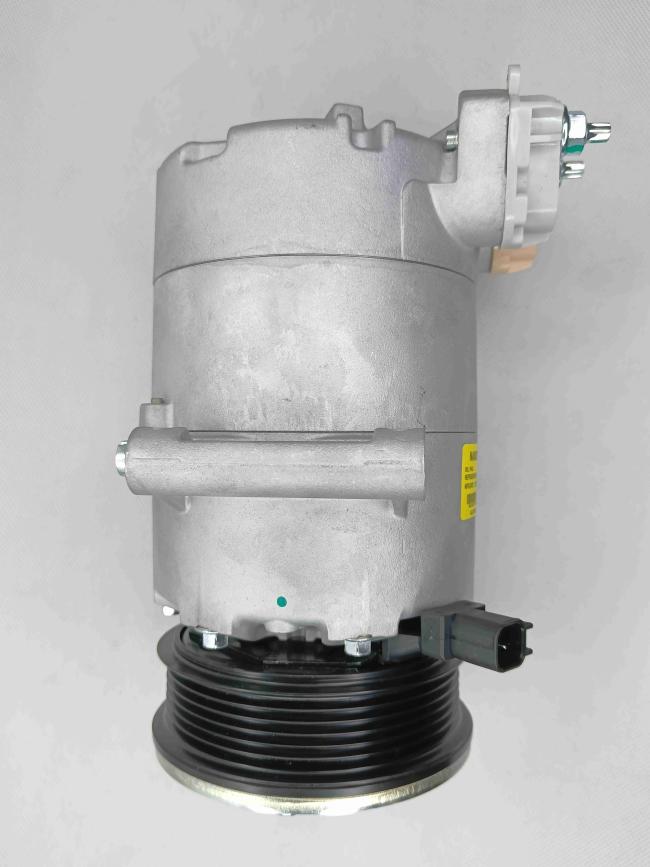

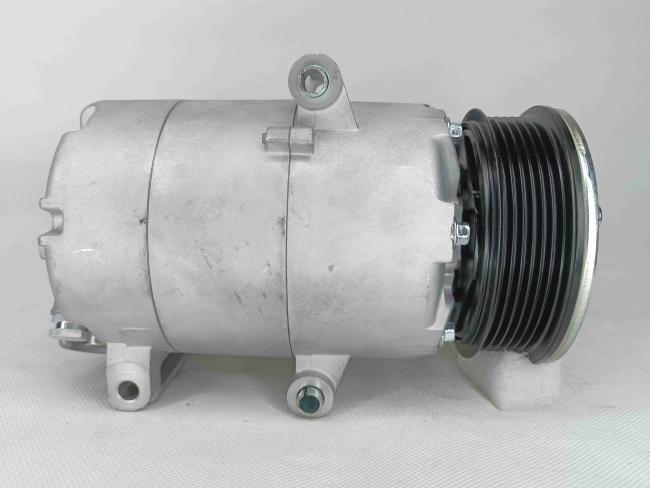

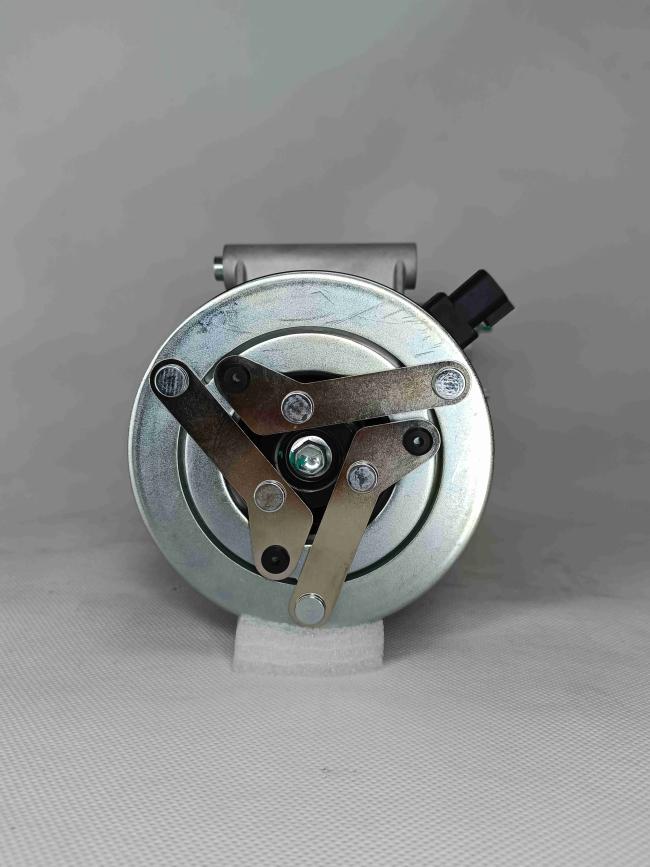

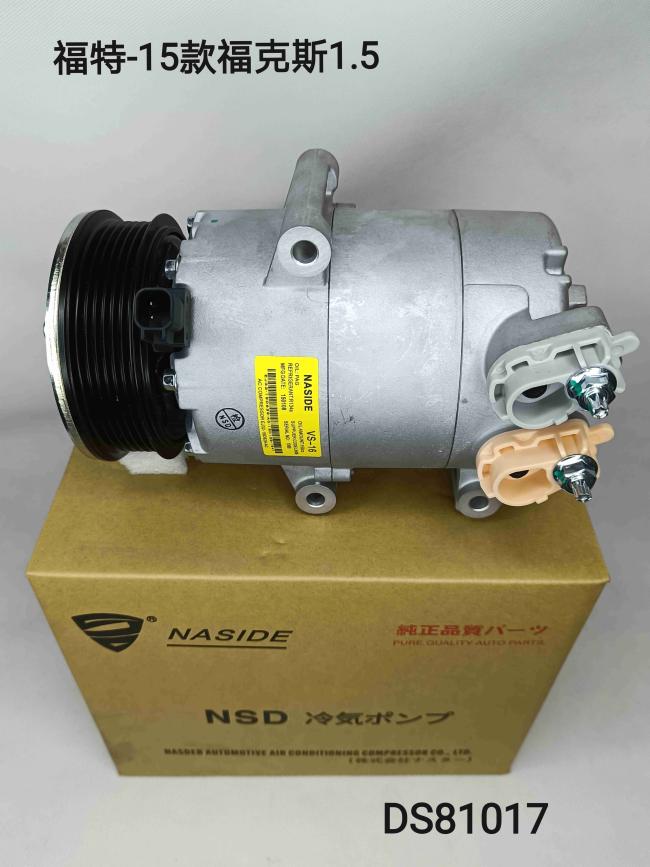

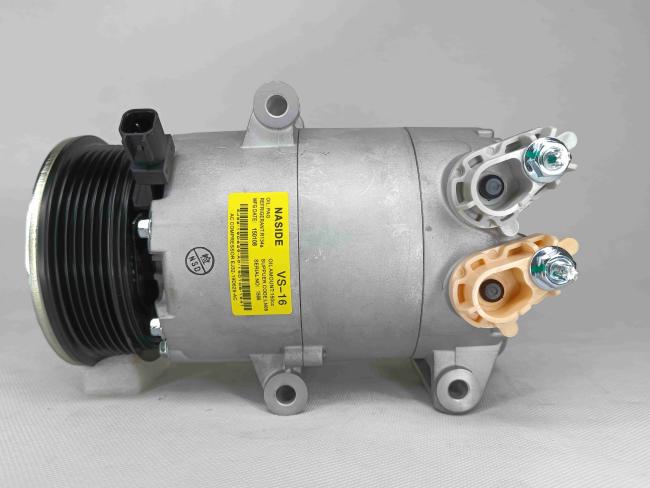

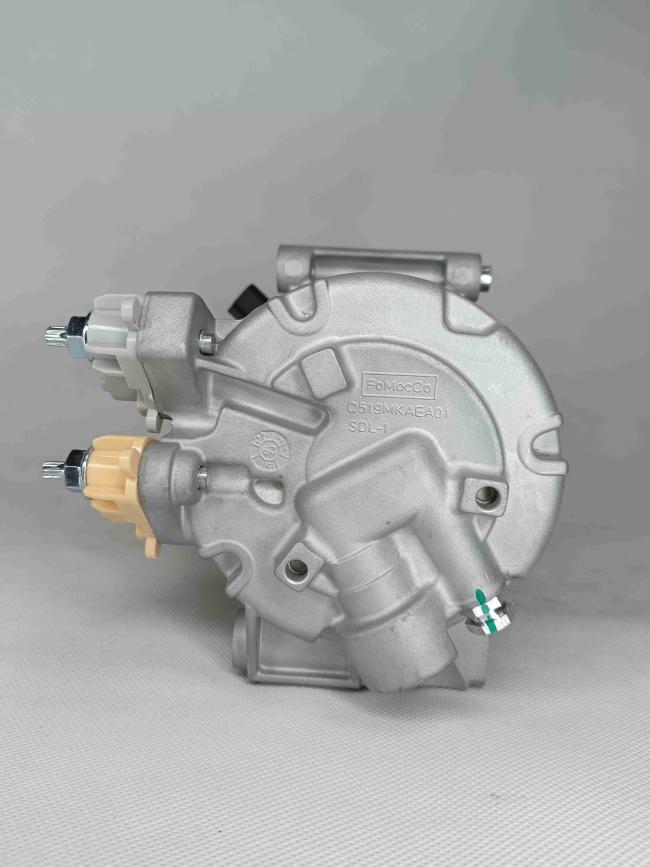

Auto Ac Conditioning Compressor For FORD Focus1.5 F1F119D629C2A

1.Technical characteristics

Variable displacement adjustment: The internal swash plate Angle automatically adjusts the cooling capacity to reduce engine load fluctuations
Electromagnetic clutch: Integrated coil design, operating voltage range 9-16V (compatible with start-stop system)
Lubricating oil type: PAG 46 lubricating oil specified by the original factory, the initial filling amount is about 120ml

2.Working pressure range (ambient temperature 30℃)

Low pressure side: 1.8-2.2 bar (idle)
High pressure side: 12-16 bar (extreme high temperature does not exceed 20 bar)

3.Life extension strategy

Avoid restarting the air conditioner immediately after the engine turns off (recommended interval >30 seconds)
After starting in winter, start the fan first, and then activate the compressor when the water temperature reaches 50℃
