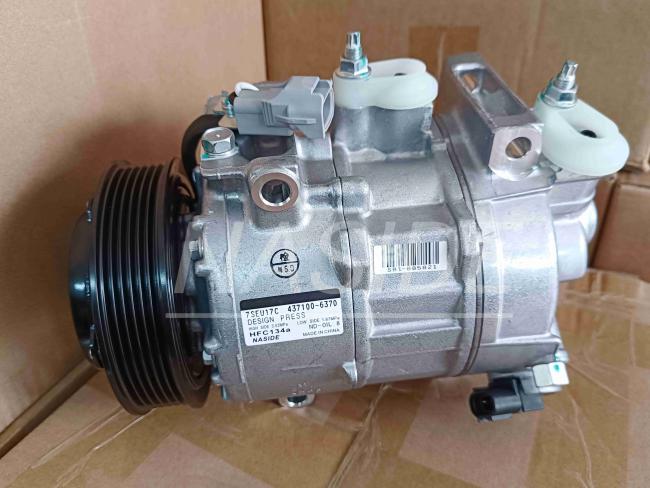

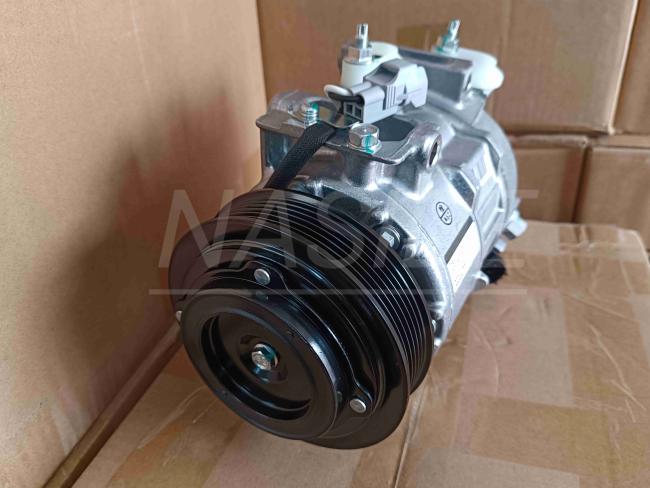

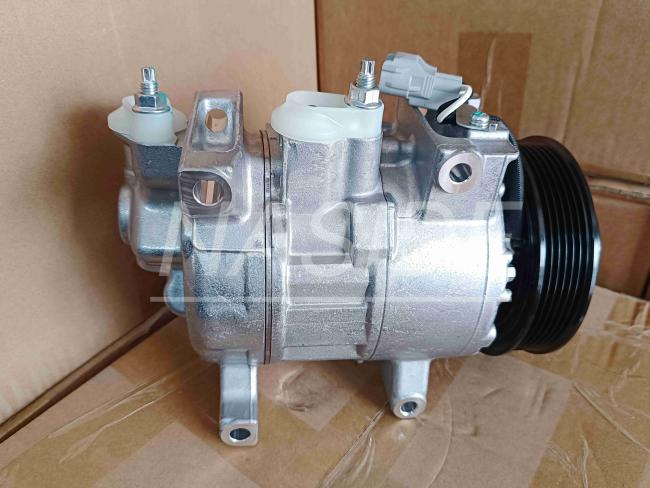

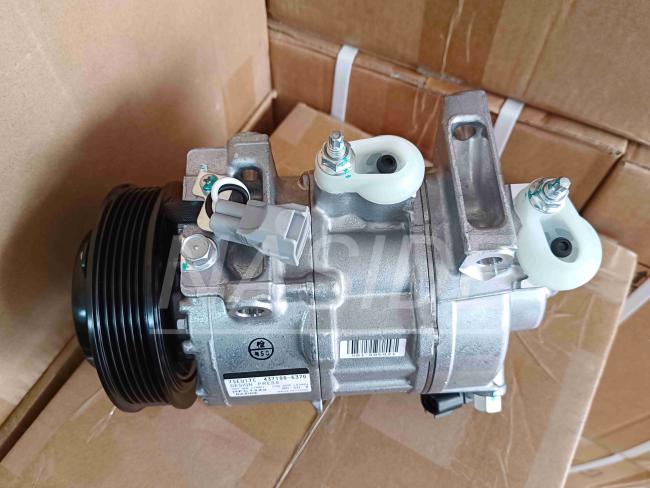

Auto AC Conditioning Compressor For Dodge Charger Challenger Chrysler 300 68160395AC 68160395AD 68160395AE 68160395AF

Auto AC Conditioning Compressor For Dodge Charger Challenger Chrysler 300 68160395AC 68160395AD 68160395AE 68160395AF

Compressor model: It may correspond to common models such as 10SR17C (refer to the compressor models applicable to Dodge Chrysler).

Applicable vehicle models: Chrysler 300, Charger, Challenger, and other specific year models (vehicle displacement and production year need to be further verified).

Refrigerant type: Generally, R134a or environmentally friendly refrigerants are compatible (subject to vehicle specifications).

Voltage: 12V (General low-voltage system for automobiles).

OEM Part Number: 68160395AF, compatible with other suffix models in the same series (such as 68160395AC, AD, AE, etc.).

Precautions

Installation and maintenance

When installing, it is necessary to ensure that the fit clearance between the bracket and the compressor lug does not exceed 0.4mm, and the envelope Angle of the pulley is between 150° and 180°, to avoid splashing of mud and water.
When replacing, it is necessary to simultaneously check the condenser, drying bottle and other system components to ensure that the pipelines are clean and the refrigerant is compatible with the lubricating oil.

Working conditions

The high pressure should not exceed 18-19 kg/cm², and the low pressure should not be lower than 1.5 kg/cm². Overload or idling should be avoided.
