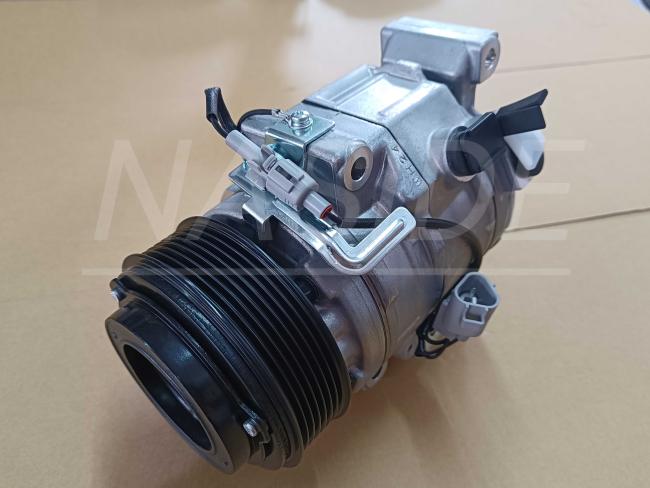

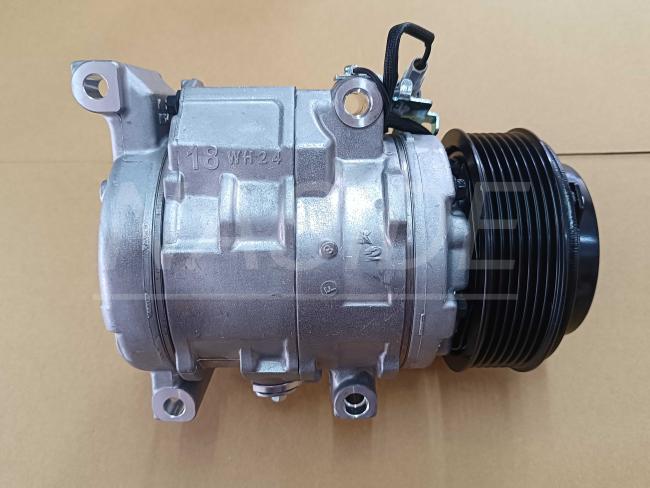

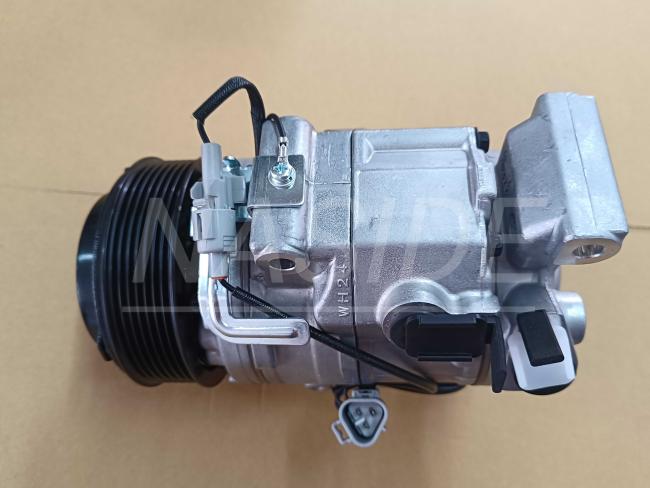

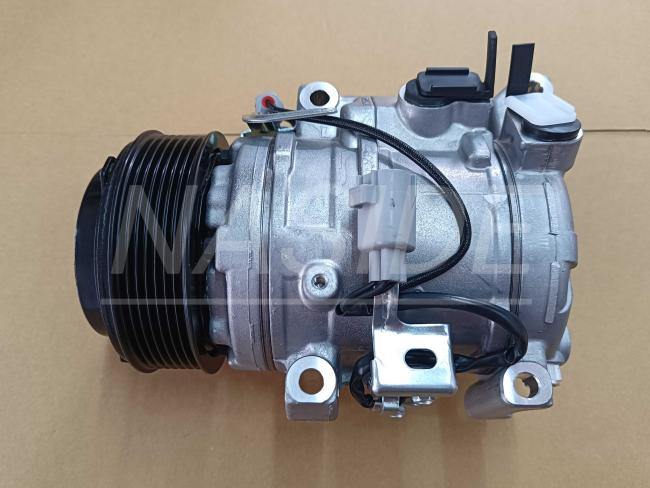

Auto AC Conditioning Compressor For 88320-60A01 Land Cruiser Prado 10S18C 883206A170

Toyota Prado AC Compressor Specifications & Overview

(Based on common model years, e.g., 2010–2025)

1. Key Parameters

• Type:
  • Variable Displacement Scroll Compressor (e.g., DENSO 10S17E) for most models; older versions may use fixed-displacement piston types.
  • Displacement: ~120–160 cc/rev (e.g., 147 cc/rev for DENSO 10S17E).
• Refrigerant & Lubricant:
  • Refrigerant: R134a (pre-2015) or R1234yf (newer eco-friendly models).
  • Oil Capacity: 120–150 mL PAG/POE oil (type varies with refrigerant).
• Electrical:
  • Voltage: 12V DC; clutch coil resistance typically 3–5 Ω.
  • Max RPM: ≤6,000 rpm (to prevent damage at high engine speeds).
• Pressure Ranges:
  • High Side: 1.5–2.5 MPa (summer conditions).
  • Low Side: 0.15–0.3 MPa.

2. System Features

• Smart Control: ECU adjusts compressor output based on cabin demand and engine load (e.g., reduces cooling during uphill drives).
