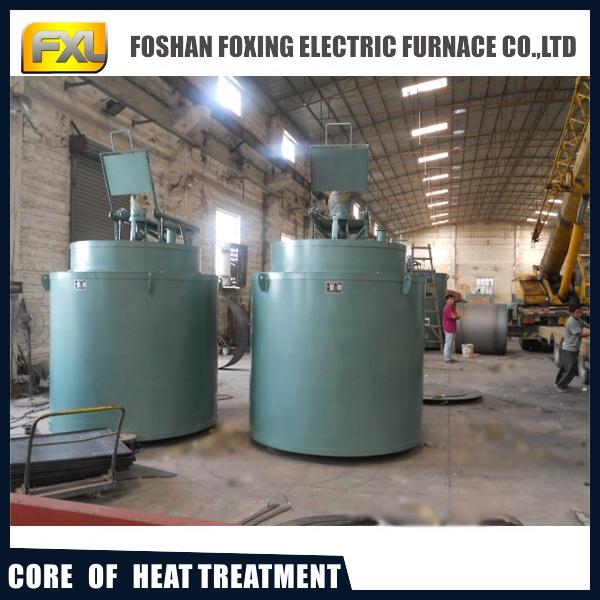

500kg Gas Nitriding Pit Pot Type Annealing Furnace Aluminium Melting Machine
High Capacity 500kg Gas Nitriding Pit Type Tempering Metal Annealing Furnace Kiln for Long Steel Parts in Restaurants
Product Application
hot air circulation tempering furnace is a batch type working furnace,used for metal parts tempering.
Main technical parameters :
(1)rated power:120kw
(2)Voltage:380V/3phase
(3)Area of heating: 2 areas
(4)Rated temperature:650℃
(5)The effective size of furnace Chamber :Ф1300×1600mm
(6)Type of temperature control:Controlled by digital display instrument solid state relay.
(7)furnace temperature uniformity:±5℃
The temperature of the furnace surface:≤50℃
(8)temperature record:no paper record for the temperature record and display.
|
model
|
rated power(kw)
|
rated temperature(℃)
|
effective working size(mm)
|
overall size(mm)
|
|
RJ2-25-6
|
25
|
650
|
φ 400x500
|
φ 1600x1900
|
|
RJ2-35-6
|
35
|
650
|
φ 500x650
|
φ 1600x2070
|
|
RJ2-45-6
|
45
|
650
|
φ 600x700
|
φ 1800x2130
|
|
RJ2-55-6
|
55
|
650
|
φ 700x900
|
φ 1970x2490
|
|
RJ2-65-6
|
65
|
650
|
φ 800x1100
|
φ 2000x2560
|
|
RJ2-75-6
|
75
|
650
|
φ 950x1220
|
φ 2240x2850
|
Construction
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
1230 (L) * 1100 (W) * 1300 (D)
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
3023 (L) * 2456 (W) * 1789 (D)
|
|
|
Weight
|
8 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Our factory was builded in 1991. Have 29 years in manufactruring of heat treatment furnace. We have a great technical team with rich experience.
2.Your machines have exported to which country?
Our furnaces have been exported to more than 80 countries. Such like Turkey, Spain,
France,Malaysia,India,Pakistan,Bangladesh,Uzbekistan,Mexico,Ghana,Saudi Arabia......
Wish you will join us too!
3.If we buy the machine from you, will you offer the operate training?
Yes, If the customers need, we will send engineers for furnace installation and testing,And also will offer the professional
operate training for the working. we will offer the details operate manual and the drawings for learning first. So please don't worried about the using of the furnace.
4.If we don't know the heat treatment process, Can you help us?
Yes, ofcouse. We are member of the Guangdong heat treatment association, we always have meeting to discuss the newest technical of the heat treatment process. And our engineers is have rich experience. So we will offer the best suggestion of the heat treatment technical.
5.What is the quality warranty period of your furnace?
After completion of equipment installation and testing, within a year, if there is any quality problems in equipment, we will
provide free spare parts to you.
