*Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an
appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market

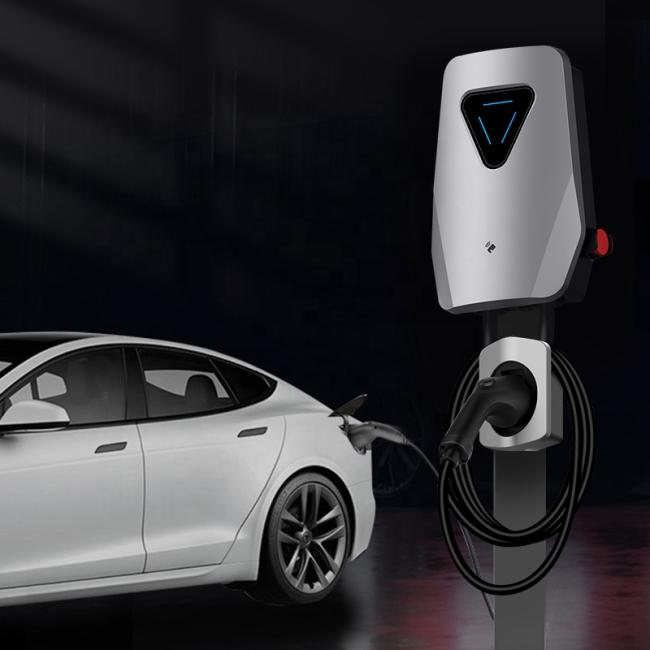

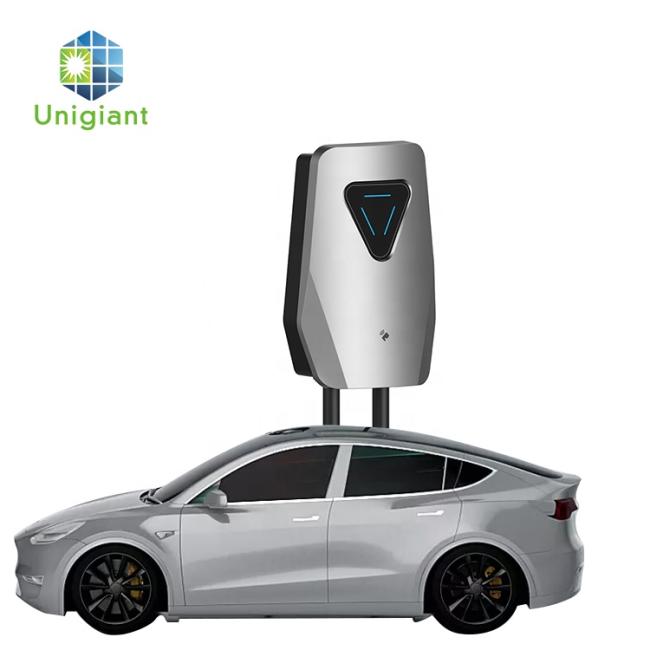

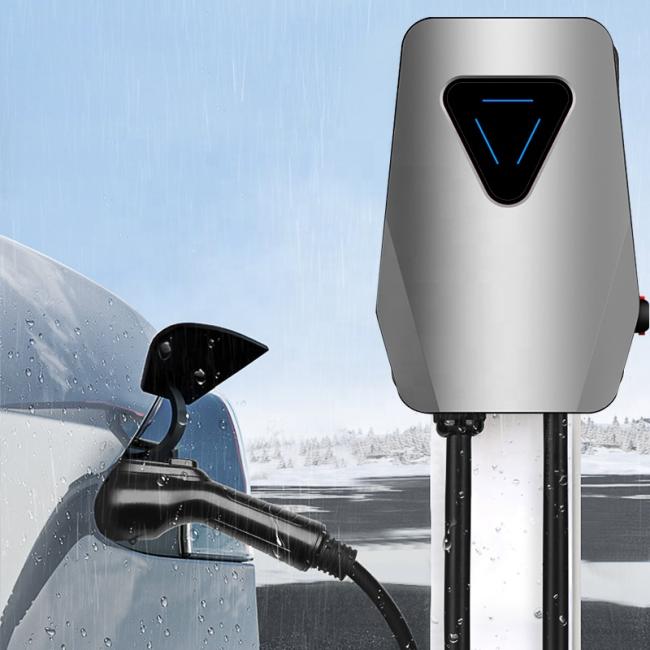

12KW Ev Charging Station Wall Box Ev Charger Pile with 230V/400V Input Voltage and 32A Rated Current
Price:
CN¥1,453.48/pieces 2-99 pieces
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
Wanhe ChinTiyan
Product Description
Charging equipment for electric cars ev charging 7kw single phase Charging pile
Specification
Product name | Charging equipment for electric cars ev charging 7kw single phase Charging pile | ||||||||||
Model | 32A | Optional | |||||||||
Power Supply | L+N+PE | ||||||||||
Rated voltage | 240V | ||||||||||
Rated current | 32A | ||||||||||
Frequency | 50/60HZ | ||||||||||
Output | Output voltage | 240V | |||||||||
Output current | 32A | ||||||||||
Rated power | 7KW | ||||||||||
Cable length | 7.62M | Customized | |||||||||
Outer case | PC9010 | ||||||||||
LED indicator | Green/blue/red (blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal) | ||||||||||
Emergency stop | include | ||||||||||
Start-up mode | Plug-and-Play | Yes | |||||||||
RFID Reader | — | Y | N | ||||||||
Screen | 4.3-inch | — | Y | N | |||||||
Network | 4G | — | Y | N | |||||||
RJ45 | — | Y | N | ||||||||
Bluetooth/WiFi | — | Y | N | ||||||||
RCD | A+ccid20 | ||||||||||
Ingress Protection | IP65 | ||||||||||
Surge Protection | IK10 | ||||||||||
Electrical Protection | Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection, vehicle specification level protection vehicle and protective personnel | ||||||||||
Warranty | 15 months | ||||||||||
Cooling mode | Natural cooling | ||||||||||

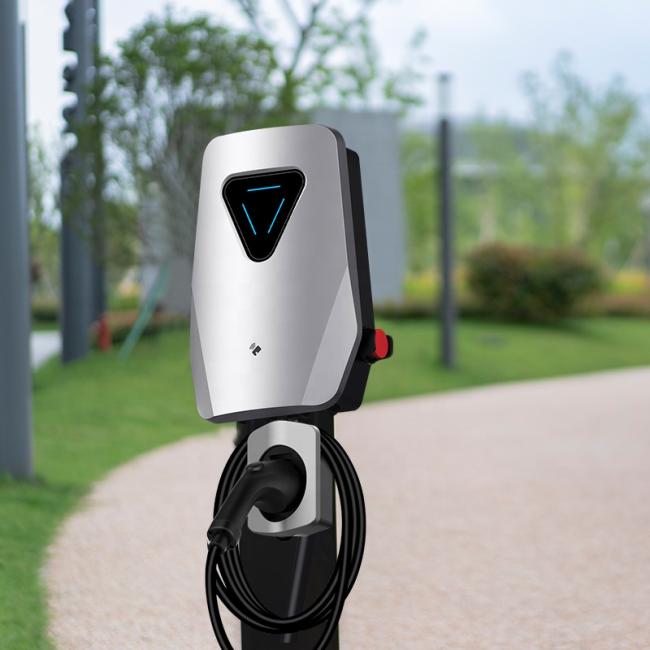

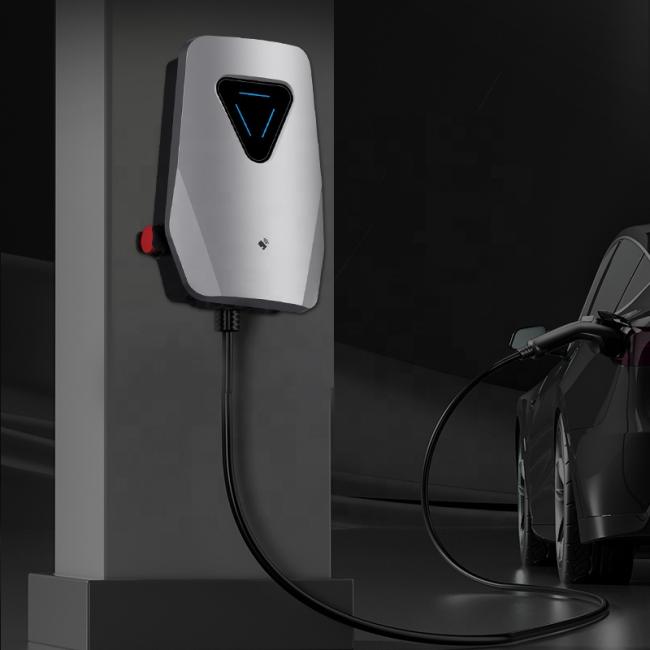

Installation | Wall-mount/Pole-mount | ||||||||||
Working Temperature | -30℃~+50℃ | ||||||||||
Storage temperature | -40℃~+80℃ | ||||||||||
Operating humidity | 5%~95% no moisture condensation or frost | ||||||||||
Working Height | <2000m | ||||||||||

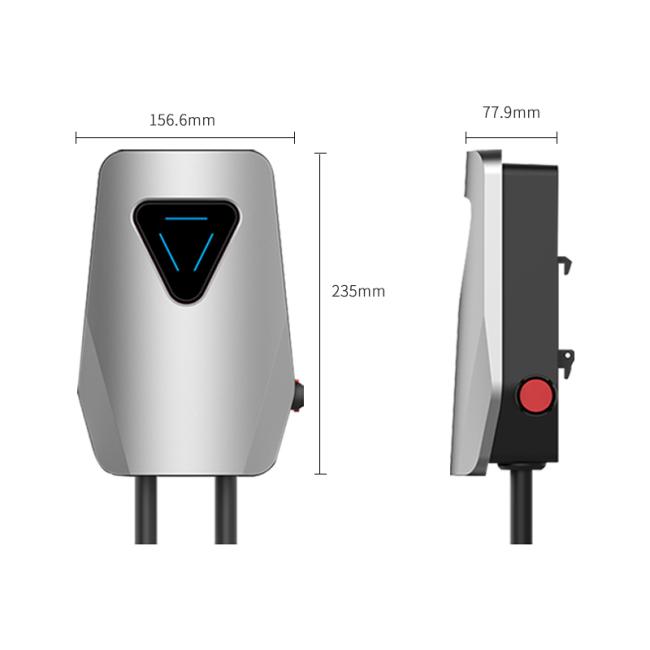

Specifications | Product Dimension | 23*16*7.5cm | |||||||||
Package Dimension | 46*23.5*25cm | ||||||||||
Net Weight | 2.5KG | ||||||||||
Gross Weight | 3.5KG | ||||||||||
Charging pile | 1Pcs | ||||||||||
Instructions | 1Pcs | ||||||||||
Cable | 1Pcs | ||||||||||
Plug holder | 1Pcs | ||||||||||
Screw (for installation) | 1Pcs | ||||||||||
Outer packaging | Carton | ||||||||||
Efficiency | ≥98 | ||||||||||
Insulation resistance | ≥10MΩ | ||||||||||
Power of control module | ≤7W | ||||||||||
Terminal | include | ||||||||||
Product Description

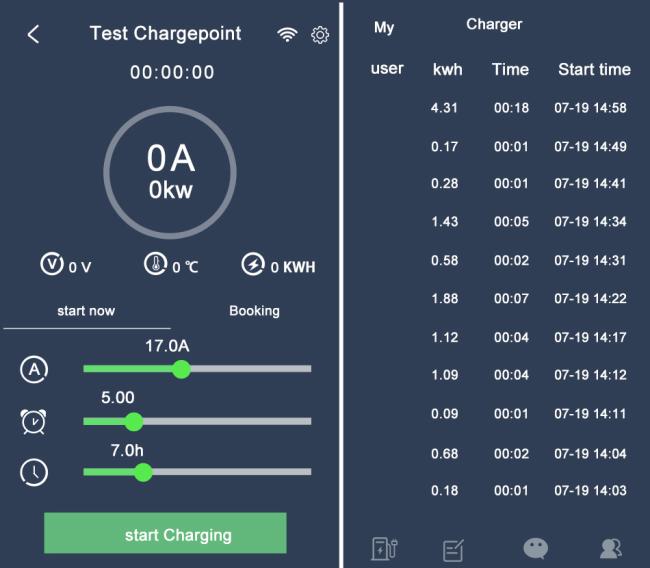

1. APP Control

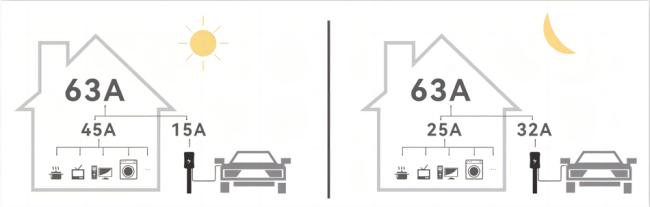

2.Load balance management
* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the
advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the
advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.

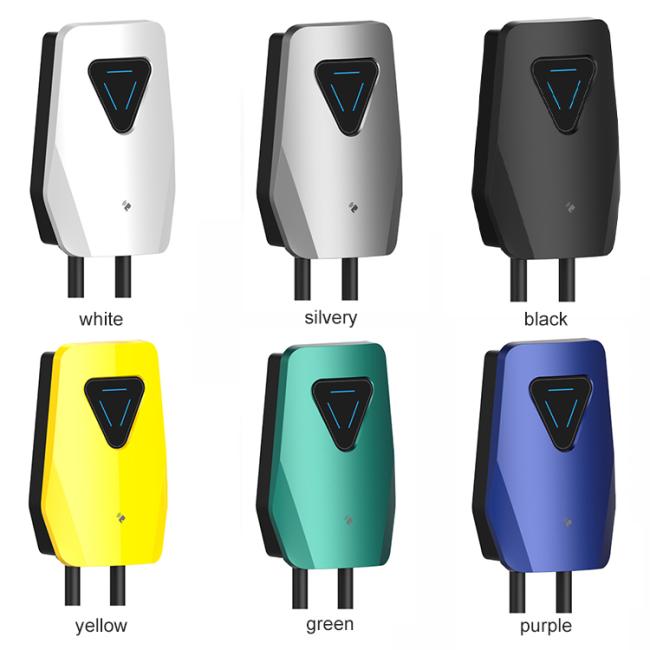

Our factory can customize the style and function of the charging pile according to the different needs of customers, and accept
OEM and ODM orders
OEM and ODM orders
Our Factory
Packing and Delivery
Exhibition
Company Profile
Wuhan Wanhe Qingtian New Energy Co., Ltd. is a high-tech new energy enterprise specializing in production, design, R&D and sales, focusing on intelligent equipment for the new energy vehicle charging pile industry. The company currently employs more than 200 people, constantly absorbing senior technical personnel, and has 30 engineers and senior engineers who have been engaged in design and manufacturing for many years. With independent intellectual property rights and core technology, the products are exported to foreign countries wordwide.
Contact Us
FAQ
Q1: What is your main products?
A1: Our main products are EV chargers, EV dischargers, EV charging pile hanger(support), protection box for EV charger, extension cable for EV charger and other electric vehicle charger accessories.
Q2. What type of EV chargers do you have?
A2: Home use, commercial use are available, GB/T, type 1, type 2 are available.
Q3. What is your warranty?
A3. 5 years warranty.
Q4. Are you a factory or a trader?
A4. We are manufacturer(factory). OEM, ODM service is available.
Q5. What is your payment terms?
A5. TT, L/C, Trade Assurance, Paypal, Western Union etc.
Q2. What type of EV chargers do you have?
A2: Home use, commercial use are available, GB/T, type 1, type 2 are available.
Q3. What is your warranty?
A3. 5 years warranty.
Q4. Are you a factory or a trader?
A4. We are manufacturer(factory). OEM, ODM service is available.
Q5. What is your payment terms?
A5. TT, L/C, Trade Assurance, Paypal, Western Union etc.
