Nominal Input Voltage 380 VAC ± 15% Output Current Range 5A-200A 40kw Floor-Stand Advertising EV Chargers with Screens
Price:
CN¥36,290.78/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
MAXPOWER
Product Description
CONTACT US NOW!!
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Products Description
*Modular design including control system, power source system, distributed power system, power factor system *Auto sleep mode after fully charged with low standby power consumption at <5W *Remote firmware upgrade with APP *Remote power module upgrade *Remote diagnostic function simplifis data collection and analysis process *IP54 protection and IK10 vandal-proof enclosure *7" colored touch LCD display for easy configuration.
*IEC 61851 Electric vehicle conductive charging system *IEC 62196 plugs, socket-outlets, vehicle connectors and vehicle inlets-conductive carging of electric vehicle *DIN 70121 Electromobility-Digital communication between a d.c. EV charging station and an electric vehicle for control of d.c. charging in the combined charging system *ISO 15118 Road vehicles-Vehicle-to-Grid Communication Interface

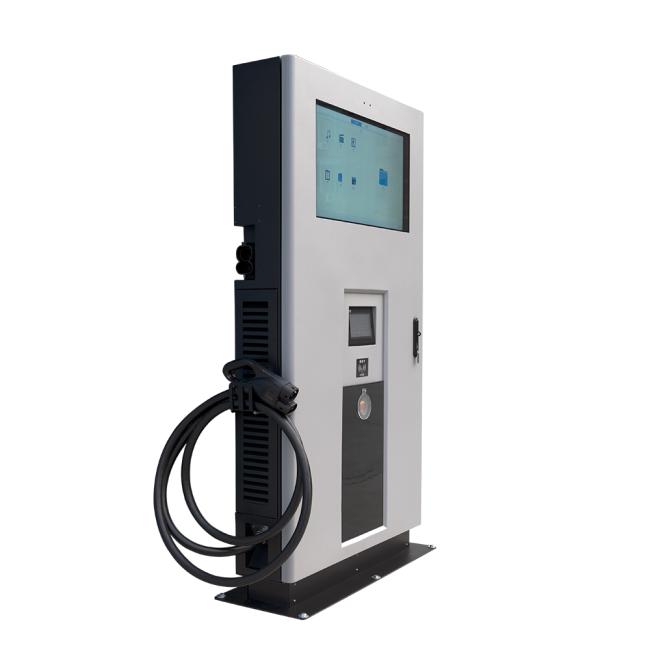

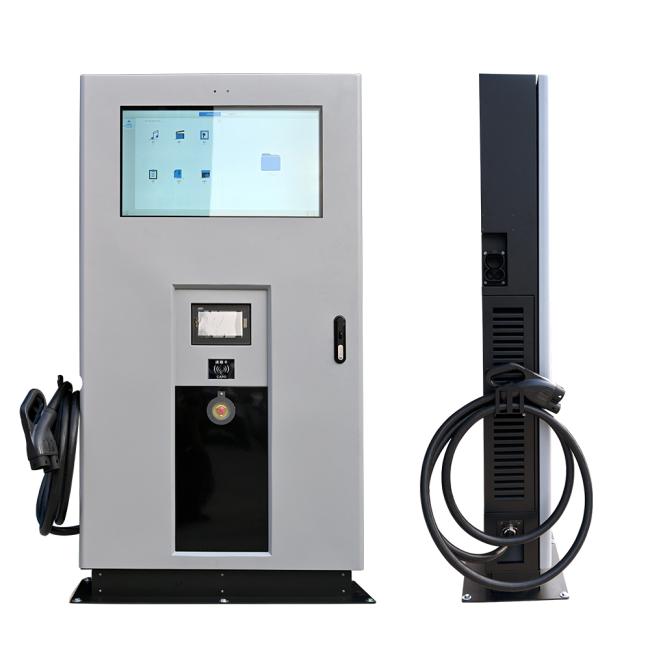

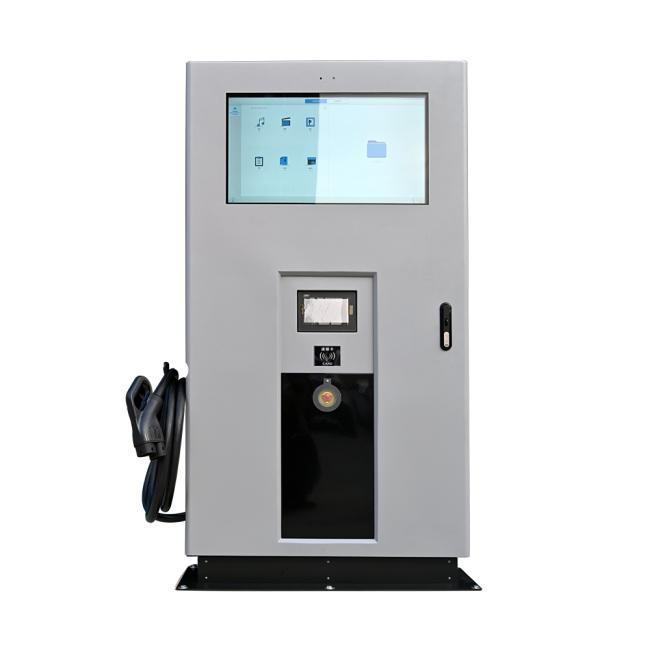

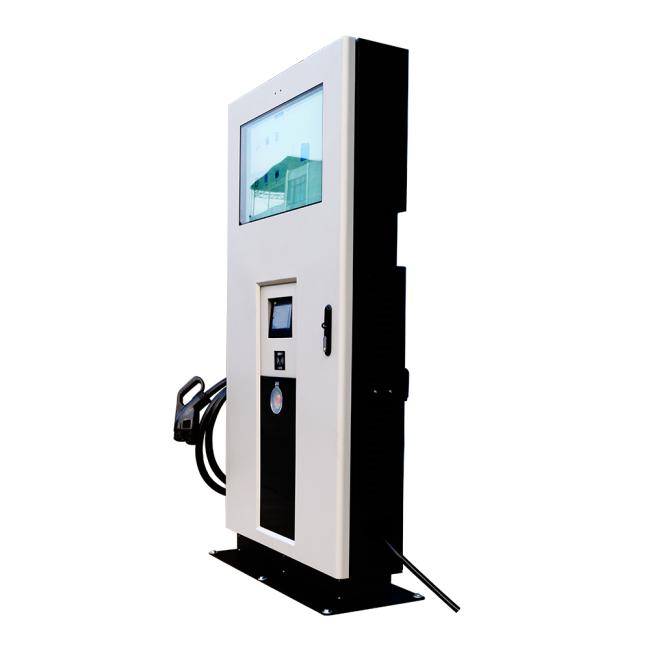

EV CHARGER 30KW-60KW with ads display
*Smart DC charger is a configurable-multiple-outlet high-power charger which is suitable for CBD or public areas.
*The product consists of human-machine interaction part, power module, internal control system, communication module and charging cable assembly.
Product Paramenters
|
MODEL
|
30KW
|
40KW
|
60KW
|
|||
|
INPUT
|
|
|
|
|||
|
Nominal Input Voltage
|
380 VAC ± 15%
|
|
|
|||
|
Acceptable Input Voltage Range
|
3-phase, 3ph + N + PE
|
|
|
|||
|
Working Voltage Range
|
50 - 60 Hz
|
|
|
|||
|
Maximum Input Current
|
5-200A
|
5-200A
|
5-200A
|
|||
|
Frequency Range
|
≦ 5%
|
|
|
|||
|
Input Power Factor
|
> 0.99 @nominal voltage (100% load)
|
|
|
|||
|
OUTPUT
|
|
|
|
|||
|
Output Current Range (based on 2-output)
|
5-200A
|
5-200A
|
5-200A
|
|||
|
Output Voltage Range
|
200~750VDC (600~750VDC in constant power mode)
|
|
|
|||
|
Power Module
|
15kW x 2 pcs
|
20kW x 2 pcs
|
30kW x2 pcs
|
|||
|
Efficiency
|
> 94%
|
|
|
|||
|
Module Output Current Unbalancce
|
< 5%
|
|
|
|||
|
Module Output Voltage Ripple
|
< 0.5
|
|
|
|||
|
Module Output Voltage Precision
|
< 0.5%
|
|
|
|||
|
MModule Output Current Precision
|
< 1%
|
|
|
|||
|
Connector Single Mode (max.)
|
yes
|
yes
|
yes
|
|||
|
Connector Double Mode (max.)
|
no
|
yes
|
yes
|
|||
|
Power Distribution
|
Single plug mode / Average output mode
|
|
|
|||
|
PROTECTION
|
|
|
|
|||
|
Charger Safety Protection
|
Over/Under voltage, overload, output power limit function, short circuit, anti-access, earth leakage, lightning and overheat
protection |
|
|
|||
|
Interface Safety Portection
|
Circuit discharge function, insulation monitoring device (IMD) and battery reverse parity protection
|
|
|
|||
|
USER INTERFACE
|
|
|
|
|||
|
Status Indiators
|
Power on, charging and fault
|
|
|
|||
|
Communication Protocol
|
OCPP 1.6
|
|
|
|||
|
Connection Communication Mode
|
In accordance with DIN 70121 and ISO 15118 standard
|
|
|
|||
|
Connection Standard
|

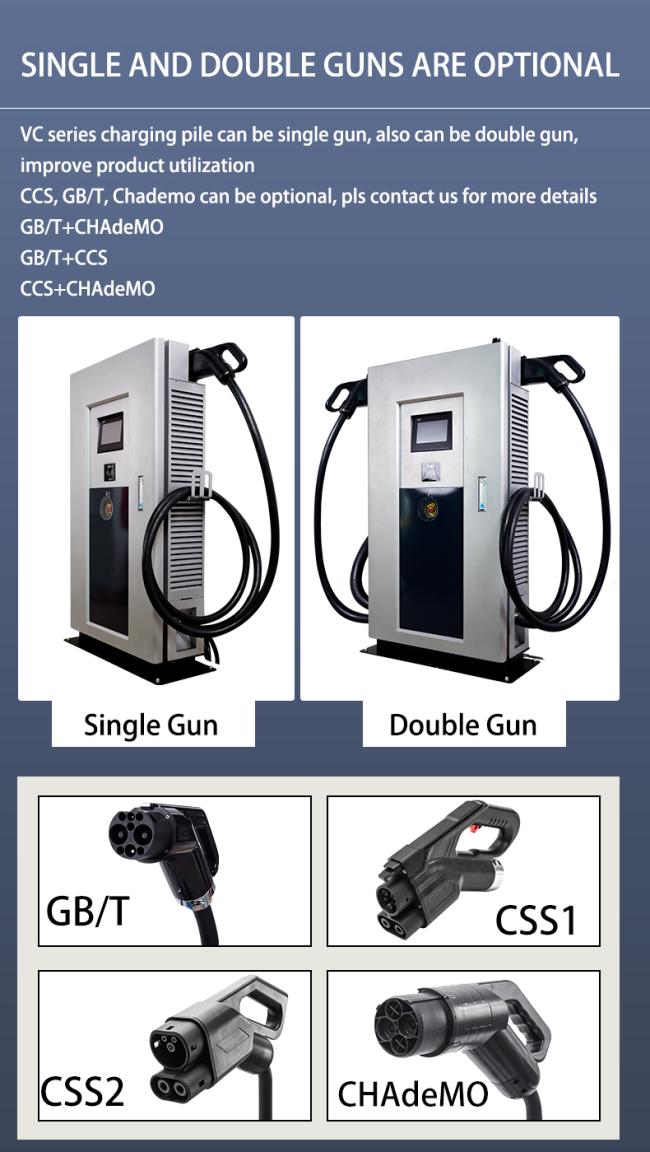

CCS2 (IEC61851-23) and CHAdeMO 1.0
|
|
|
|||
|
ENVIRONMENT
|
|
|
|
|||
|
Operating Temperature
|
-25°C to 50°C
|
|
|
|||
|
Humidity
|
0 - 95% (non-condensing)
|
|
|
|||
|
Altitude
|
< 2000m
|
|
|
|||
|
Noise Level
|
<65dB
|
|
|
|||
|
PHYSICAL
|
|
|
|
|||
|
IP Protection
|
IP54
|
|
|
|||
|
Cable Length
|
5m
|
|
|
|||
|
Dimension, D x W x H (mm)
|
1900mm*1000mm*250excluding plug and cable
|
|
|
|||
|
Net Weight (kgs)
|
2330
|
340
|
360
|
|||
Recommanded For You
Product Categories
Our Advantages
Company Profie
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
